Summary of Contents for Dashmate DSH-440

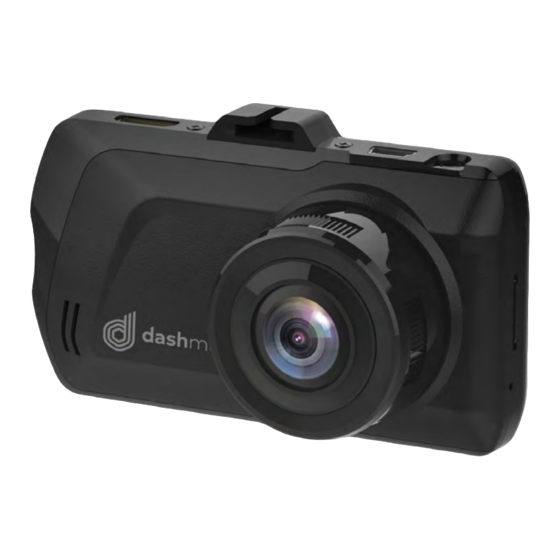

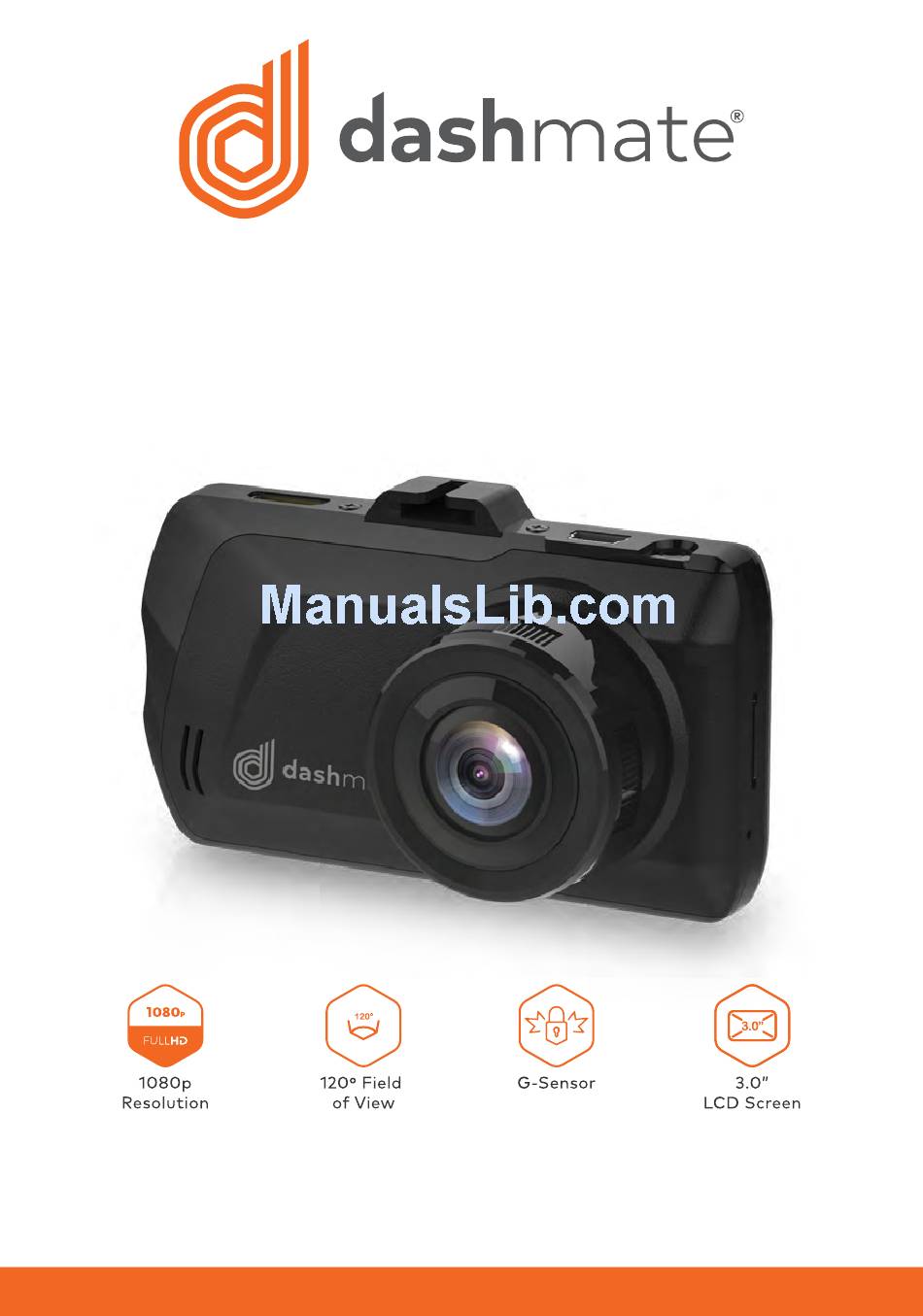

- Page 1 1080p Dash Camera with 3.0” LCD Screen & Motion Detection DSH-440 | USER MANUAL...
-
Page 2: Battery Warning
CAUTION • Ensure you are using your Car Dash Cam within your countries’ road laws Please make sure you are familiar with your local road legislation before use. • Avoid leaving your Dash Cam in direct sunlight for extended periods of time in an unventilated space. - Page 3 NOTE: 1. Please abide by the relevant laws in your local area; please do not use this product for illegal purposes. 2. Please insert your Micro SD memory card before recording video, taking care to insert it the right way to avoid damage. 3.
-
Page 4: Product Information
1. PRODUCT INFORMATION: For latest manual and product updates please visit our website. 1.1 INTRODUCTION: Thank you for purchasing a DSH-440 Dash Cam. Please read through instructions before attempting to install or use this product. 1.2 FEATURES: • Recording Full HD 1080P footage •... -
Page 5: Installation
• Lock the mount in place by pressing the lock switch in the down position. • Use the nut to adjust the angle and position of the DSH-440 and tighten to lock your positioning. • Finally connect the DSH-440 to power using the included USB Mini power supply. -
Page 6: Computer Connection
• Ensure you are not currently recording. If the red record indicator is flashing at the top left of the DSH-440’s screen, push the OK button to stop recording. • Push the MENU button twice, taking you to the SETUP menu. - Page 7 • Ensure you are not currently recording. If the red circle record indicator is flashing at the top left of the DSH-440’s screen, push the OK button to stop recording.
-
Page 8: Set Motion Detection
• Ensure you are not currently recording. If the red circle record indicator is flashing at the top left of the DSH-440’s screen, push the OK button to stop recording. - Page 9 OK button. Footage can be manually locked by pressing the MENU button protecting it from being recorded over. When the DSH-440 is not recording in this mode, the UP button can be used to quickly mute and un-mute the on board microphone.
-
Page 10: Video Menu
720P 1280x720P footage more detail WVGA 848x480 VGA 640x480 Loop Recording ‘Loop Recording’ defines the 1min length of time the DSH-440 2min records before creating a new 3min file. Using the Off setting will 5min record the longest possible loops under the file size of 2GB (around 7 mins at 1080P). - Page 11 11. STILL: This screen is used to take still photos. In this screen the down button is used to toggle the Day/Night lighting mode. 1. STILL Mode 7. Photo Number 2. Exposure 8. Resolution/MP 3. White Balance 9. Resolution 4. ISO 10.
-
Page 12: Still Menu
Soft Auto White balance gives the option of 4 pre- Daylight set lighting settings to easily allow you to White Cloudy optimise your DSH-440 for your lighting. Balance Tungsten Still Fluorescent Auto The lower the ISO, the lower the sensitivity of the image will be. Higher ISO will capture more light and reduce motion blur. -
Page 13: Playback Menu
12. PLAYBACK: In this screen the UP and DOWN buttons are used to navigate your videos and photos, and the OK button is used to play and pause selected videos. 1. PLAYBACK Mode 2. Video/Photo Name 3. Resolution 4. Recording Date/Time 5. -
Page 14: Settings Menu
Once you have finished use the MENU button to save and return to the Settings menu. Sets the amount of time of inactivity 1 Minute before the DSH-440 powers down. 2 Minutes Auto Power Off 3 Minutes 4 Minutes... -
Page 15: Specifications
14. SPECIFICATIONS Screen 3" Lens 120° Imaging Sensor 5.0MP Camera Rotation 180° Minimum Light 1 Lux Video Resolution 1080P / 720P / 480P Video Format .AVI Frames 30 Fps Image Resolution 5M / 2M / 1.3M / VGA Photo Format .JPG Motion Detection Supported... - Page 16 The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Email: service@dashmate.com.au...
