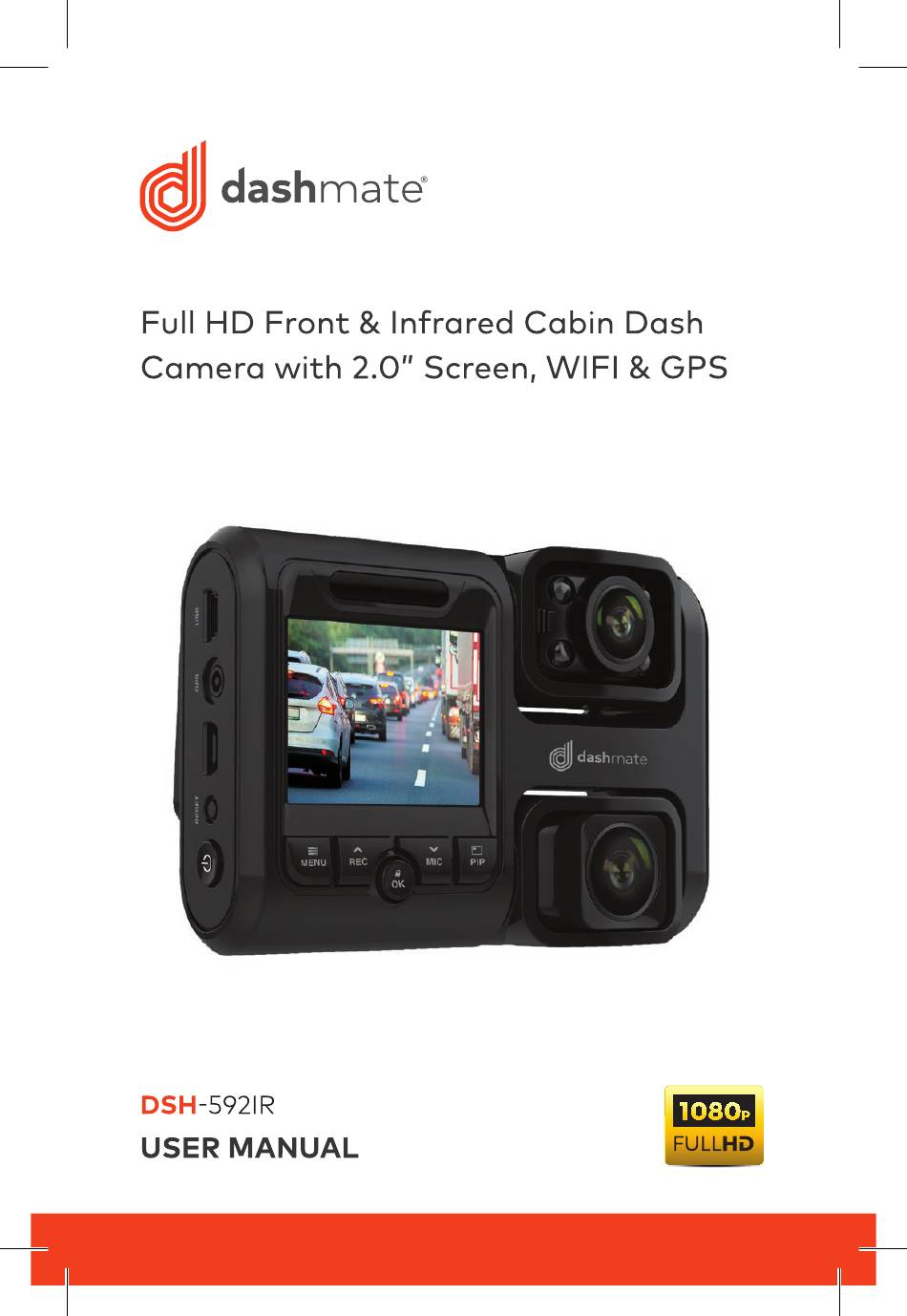

Dashmate DSH-592IR User Manual

Full hd front & infrared cabin dash camera with 2.0 inch screen, wifi & gps

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSH-592IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dashmate DSH-592IR

  • Page 3: Table Of Contents

    Removing A Micro SD Card ..........9 Installing The DSH-592IR ..........9 CONNECTING TO POWER ........... 10 LED INDICATOR ..............11 POWERING THE DSH-592IR ON/OFF......... 11 Auto Power ON/OFF ............11 Manual Power ON ............11 Manual Power OFF ............11 Reset The Car DVR ............11 10.0 INITIAL SETTINGS ..............12...
  • Page 4 12.0 GPS ..................20 13.0 VIDEO/PHOTO PLAYBACK ...........21 14.0 SOFTWARE PLAYBACK ............22 15.0 INSTALLING APP ON SMART PHONE........ 22 16.0 WARRANTY TERMS & CONDITIONS ......... 23 17.0 NOTES ..................24...
  • Page 5: Caution

    CAUTION • Ensure you are using your Dash Camera within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Please set time and date before you use this device to record. •...
  • Page 7: Product Information

    DSH-592IR, please ensure you have read and understood all of the safety notes below. • Do not expose your DSH-592IR to liquids, excessive dusty conditions or temperatures exceeding 60°C. • Only use the included cables to power and charge the DSH-592IR.
  • Page 8: Package Contents

    PACKAGE CONTENTS 1 x DSH-592 2 x 3M Adhesive Plates IR Dash Camera 2 x Electrostatic films 1 x 12/24V Power Cable 1 x External GPS 5 x Cable Clamps 1 x User Manual...
  • Page 10: Button Functions And Indicators

    BUTTON FUNCTIONS AND INDICATORS Instruction Press to open the Video Mode Settings, Press again to open Menu / Mode General Settings Menu. Button Press and hold to switch between Record, Photo and Playback mode. In the Settings menu use the Up Button to toggle between the settings.
  • Page 16: Video Menu

    OFF / 1, 3 Loop Recording defines Recording Minutes the length of time the DSH-592IR records before creating a new file. Using the off setting will record the longest possible loops under the file size of 1 GB (around 5 minutes).
  • Page 17 VIDEO MENU CONT' Menu Select Settings Description Exposure -2.0/-1.7/-1.3/- Exposure compensation 1.0/-0.7/-0.3 allows you to adjust and control the level of /0.0/ exposure, when in driving +0.3/+0.7/+1.0/ in low light, the exposure +1.3/+1.7/+2.0 value (such as + 1EV, + 2EV) can be increased to highlight the clarity of the picture.
  • Page 18 VIDEO MENU CONT' Menu Select Settings Description G Sensor OFF/High/ To adjust the sensitivity of Medium/Low the G-sensor. High is the highest sensitivity and low is the lowest. Default: Low License Input License Input your car number Plate Plate plate and it will be watermarked on the recorded footage.
  • Page 19: Setup Menu

    Language Select language Select menu language. Default: English Auto LCD OFF/1/3/5 Auto Screen Saver setting Minutes determines the amount of time before the display screen turns off. (DSH-592IR will keep on recording even the display is off). Default: 1 Min...
  • Page 20 SETUP MENU CONT' Menu Select Settings Description Speed Unit To adjust the speed unit in DVR. Default : KM/H Flicker 50Hz / 60 Hz Screen Hz setting. Default: 50 Hz Storage Displays the Displays the storage storage space space on SD card. on SD card in different default folders.
  • Page 22: 12.0 Gps

    Menu Select Settings Description White Auto / Daylight To Select the picture Balance / Cloudy/ options. Tungsten / Default: Auto Fluorescent Colour Colour / Black & To Select the colour White / Sepia options. Default: Colour Auto / 100 / To change the AUTO 200 / 400 setting.
  • Page 25: 16.0 Warranty Terms & Conditions

    16.0 WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 26: 17.0 Notes

    17.0 NOTES...
