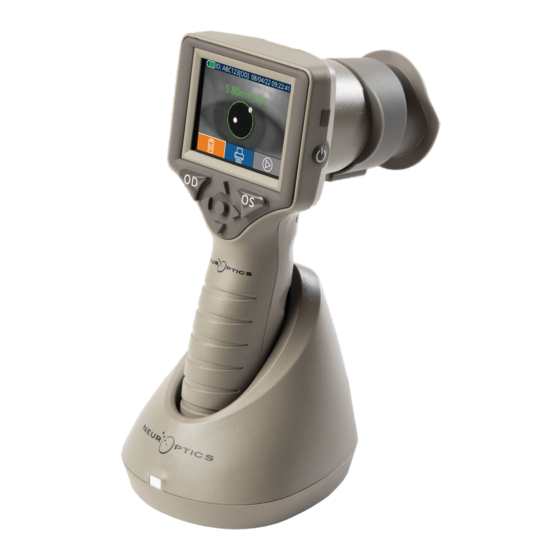

VIP
Pupillometer
Quick Start Guide
Power Up
Charging the VIP-400 Pupillometer
1.
Connect the VIP-400 Power Adapter to the VIP-400 Charging Station and
plug into a power outlet. The indicator light at the base of the Charging
Station will display a white color to indicate power has been established to
the Charging Station.
2.
Place the VIP-400 into the Charging Station. The Charging Station indicator
light will turn blue, and the LCD screen will display
icon, indicating the VIP-400 is charging. The indicator light will turn
when fully charged.
NOTE: Prior to first-time use, ensure the VIP-400 is fully charged and
Date/Time are set accurately (refer to Setting Date and Time section).
3.
The VIP-400 Pupillometer goes to sleep in the Charging Station to
efficiently charge:
•
The VIP-400 will initially turn ON (or remain on) upon being placed in the
Charging Station.
•
After 2 minutes in the Charging Station, the VIP-400 will go to sleep to
efficiently charge. The screen will go dark. If any button is pressed or the
screen is touched within this 2-minute window, the time period before the
VIP-400 goes to sleep is extended by an additional 2 minutes.
•
To use the VIP-400 after it has gone to sleep in the Charging Station, simply
remove from the Charging Station, and it will wake up automatically.
4.
If the VIP-400 Pupillometer is not in the Charging Station, to conserve
battery life it will:
•
Go into sleep mode after 4 minutes. To turn ON, touch the screen or push
any button.
•
Power down after an additional 6 minutes.
Turning On the VIP-400 Pupillometer
5.
If the VIP-400 is out of the Charging Station and has powered down, press
(do not hold) the On/Off button
- 400
®
on the side of the device.
within the battery
2
green
1
3
5
