PLR
-3000
®
Pupillometer

Instructions for Use

PLR®-3000 Pupillometer
Introduction

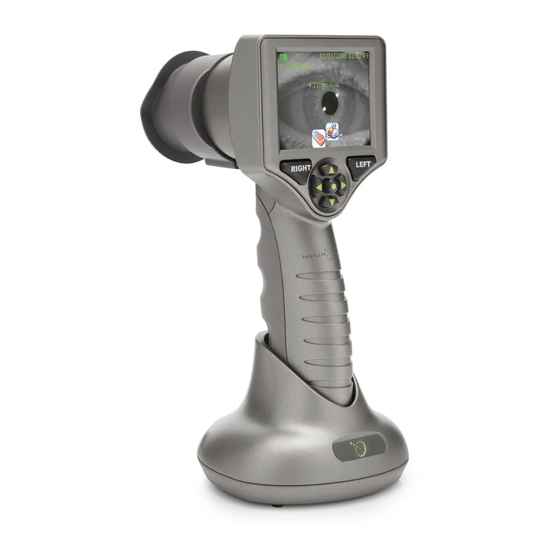

The NeurOptics® PLR®-3000 Pupillometer offers researchers quantitative infrared technology to objectively
and accurately measure pupil size and dynamics in an advanced design. The system acquires images using
self- contained infrared and visible illumination sources and a digital camera. It analyzes the captured image
data and displays a summary of the measurement in the LCD window. The NeurOptics PLR-3000 Pupillometer
uses a menu driven graphical user interface (GUI), with a color touchscreen LCD screen for data display.
A keypad completes the user interface and enables manual entry of individual patient identification (ID).
Indications for Use
The PLR-3000 Pupillometer is a hand held optical scanner which measures pupil size and dynamics under
different light and experimental protocols. The results obtained from the Pupillometer scans are used for
information only and are not to be used for clinical diagnostic purposes. It should only be operated by properly
trained clinical personnel, under the direction of a qualified physician.
Contraindications
Avoid use when the orbit structure is damaged, or surrounding soft tissue is edematous or has an open lesion.
NeurOptics® PLR®-3000 Pupillometer System—Instructions for Use © 2018 NeurOptics, Inc.

Advertisement

Table of Contents
loading

Related Manuals for NeurOptics PLR-3000

Summary of Contents for NeurOptics PLR-3000

  • Page 1: Instructions For Use

    It analyzes the captured image data and displays a summary of the measurement in the LCD window. The NeurOptics PLR-3000 Pupillometer uses a menu driven graphical user interface (GUI), with a color touchscreen LCD screen for data display.

  • Page 2: Warnings And Cautions

    Warnings Bluetooth® Notice Warnings and Cautions appear throughout this manual where Do not attempt to pair the PLR-3000 Pupillometer with the they are relevant. The Warnings and Cautions listed here apply NeurOptics® Antimicrobial Barcode Scanner by Socket® generally anytime you operate the device.

  • Page 3: Table Of Contents

    ............NeurOptics® PLR®-3000 Pupillometer System—Instructions for Use © 2018 NeurOptics, Inc.

  • Page 4: Getting Started

    Ex. 4 Ex. 5 Turning On the PLR-3000 When not in use, the PLR-3000 should be kept in the Charging Station. If the PLR-3000 is not in the Charging Station, to conserve battery life the Pupillometer will: • Go into sleep mode after 5 minutes. Touch the screen to turn on.

  • Page 5: Enter A New Patient Id

    (for example if only a part of the barcode has to be reported). Ex. 11 The PLR-3000 will display the patient ID number and read “Ready to scan” (Ex. 12). Ex. 12 Manual Entry of the Patient ID Press Manual ID Entry.

  • Page 6: Set Measurement Protocol

    Measure Pupils The PLR-3000 should not be used without the eye cup positioned correctly (Ex. 17). It is very important that the eye cup be correctly fitted. A snug fit helps reduce the possibility of stray light entering the eye while the scans are taking place.
  • Page 7 (Ex.19). Once the circle appears (green for RIGHT and yellow for LEFT), release the button, holding the PLR-3000 in place for the entire duration of the measurement. When the pupil measurement is complete, pupil data are analyzed and then results will be displayed (Ex.20).

  • Page 8: Browse Records

    Select Video to download the video of the latest collected measurement. The video is not in standard format. NeurOptics can provide a Matlab® script for reading and interpreting the video file (contact NeurOptics® Customer Service at Toll Free North America: 866.99.PUPIL or +1 949.250.9792.) The Pupillometer will display a list of available Bluetooth devices.

  • Page 9: Cleaning And Maintenance

    Isopropyl alcohol (IPA)-based cleaning solutions, in formula concentrations up to 70% IPA (70% IPA), are recommended for use in cleaning the PLR-3000 Pupillometer and PLR-3000 Charging Station. Do not use chemicals that can damage the pupillometer and charging station surface. Some chemicals can weaken or damage plastic parts and may cause instruments to not operate as intended.
  • Page 10 DO NOT use products containing sodium hypochlorite (bleach) to clean the gold connector blades located on the bottom of the PLR-3000 Pupillometer handle, and the gold connector pins located in the base of the PLR-3000 Charging Station If products containing sodium hypochlorite (bleach) are used to clean the gold connector blades located on the...

  • Page 11: Ordering Information

    Determination of a product defect or mislabeling will be made by NeurOptics, which determination will be final. Products will not be accepted for replacement or credit if they have been in the possession of the customer for more than 30 days.

  • Page 12: Appendix A- Pupillary Measurement Variables

    The average pupillary velocity when, after having reached the peak of ADV = Dilation Velocity constriction, the pupil tends to recover and to dilate back to the initial resting size, measured in millimeters per second NeurOptics® PLR®-3000 Pupillometer System—Instructions for Use © 2018 NeurOptics, Inc.

  • Page 13: Appendix B-Technical Specifications

    2.45 GHz PRL-3000 Pupillometer © 2018 NeurOptics, Inc. NeurOptics and PLR are trademarks of NeurOptics, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Socket is a registered trademark of Socket Mobile, Inc. NeurOptics® PLR®-3000 Pupillometer System—Instructions for Use © 2018 NeurOptics, Inc.
  • Page 14 18101 Von Karman Avenue, Suite 1940 Irvine, CA 92612 p: 949.250.9792 Toll Free North America: 866.99.PUPIL info@NeurOptics.com NeurOptics.com PLR3_IFU Rev D (HOMA-9YGRHF)
