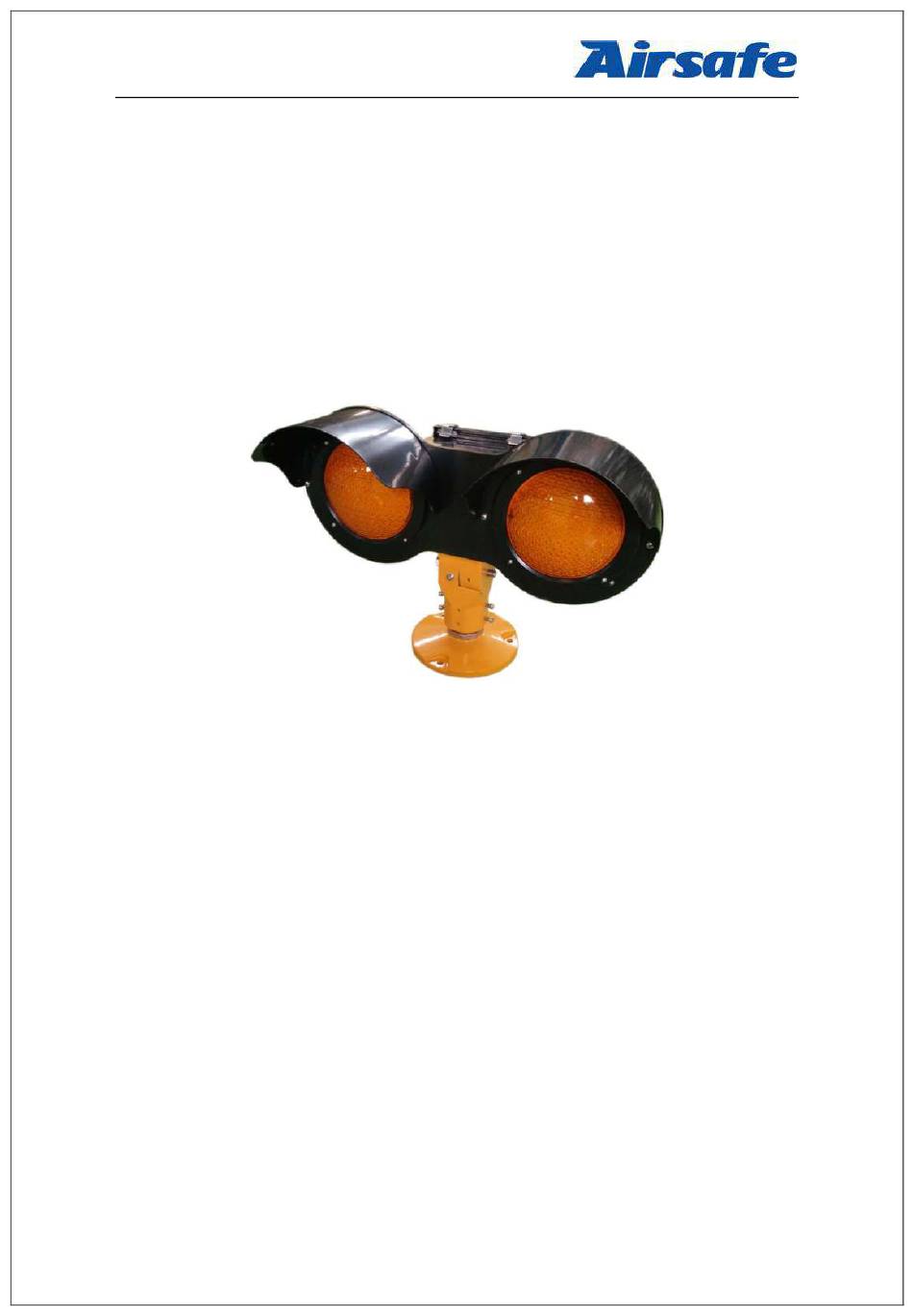

Advanced Airport Lighting System
LED Elevated Runway Guard Light
EUL-RG-LED
Operation Manual
Please read this manual carefully before construction, installation and operation of
the product.
Please keep this manual properly for further reference.
This manual is subject to change without prior notice.
Airsafe Airport Equipment Co., Ltd.
- 1 -
Advertisement
Table of Contents
Related Manuals for Airsafe EUL-RG-LED
Summary of Contents for Airsafe EUL-RG-LED
- Page 1 Operation Manual Please read this manual carefully before construction, installation and operation of the product. Please keep this manual properly for further reference. This manual is subject to change without prior notice. Airsafe Airport Equipment Co., Ltd. - 1 -...
-
Page 2: Revision Description
Advanced Airport Lighting System Revision Description Description Version No. Revised by Approved by Date First release V1.0 Nov. 11, 2016 - 2 -... -
Page 3: Table Of Contents
Advanced Airport Lighting System Table of Content Operation Manual ........................1 Revision Description ........................2 Table of Content ........................1 1.0 Foreword..........................2 1.1 Illustrations and Meanings ..................... 3 1.2 Safety Rules and Notices ....................4 1.3 Quality Assurance and Responsibility ................5 2.0 Introduction ......................... -
Page 4: Foreword
Advanced Airport Lighting System 1.0 Foreword ICAO Airport Service Manual Part 9 “Airport Maintenance Practices” and FAA AC150/5345-26 Maintenance of Airport Visual Aid Facilities are the highest criterions for site installation and maintenance of such lighting fixtures. This manual was compiled with considerable reference to these two criterions. -
Page 5: Illustrations And Meanings
Advanced Airport Lighting System 1.1 Illustrations and Meanings ○ Following illustrations will appear in this manual where necessary to remind or warn construction or maintenance personnel. ○ Please continue reading the subsequent content of this manual after properly understanding the meanings of these illustrations. ... -
Page 6: Safety Rules And Notices
Advanced Airport Lighting System 1.2 Safety Rules and Notices Using the light fixtures outside of airport is strictly prohibited. ※ Inadequate maintenance or casual touch will cause light faults. Be careful when handling the lighting fixtures. ※ Falling to the ground may cause damage of the optical cover or other internal components of the lighting fixtures and injury of personnel. -
Page 7: Quality Assurance And Responsibility
Advanced Airport Lighting System 1.3 Quality Assurance and Responsibility Any defect in design, material or workmanship, which may occur during proper and normal use over a period of one year from date of installation but less than 15 months from date of shipment, or within the warranty period of the tender, will be repaired or preplaced by manufacturer free of charge. -
Page 8: Introduction
Advanced Airport Lighting System 2.0 Introduction The elevated runway guard light is used to warn the air pilot or driver of vehicle on the taxiway that he will enter an operating runway. 2.1 Technical Specifications Comply with the Attachment 14- Airport Requirements of ICAO Convention. ... -
Page 9: Technical Features
Advanced Airport Lighting System 2.3 Technical Features Long life, energy saving and free maintenance of LED bring about huge economic benefits for the customer; Light intensity and color comply with the requirements. Strict LED color management ensures consistent luminous color; ... -
Page 10: Technical Parameters
Advanced Airport Lighting System 2.4 Technical Parameters Current: 2.8A~6.6A, dimmable Power: 24W Lamp life: 1,000h Average intensity (vertical: -8º~+8º, horizontal: -8º~+8º); Reach 4,000cd (3,000cd is required) Weight of lighting fixture: 13.5kg 2.5 Ordering Type EUL-RG-LED 2.6 Structure 2.6.1 Boundary Dimension - 8 -... -
Page 11: Main Components
Advanced Airport Lighting System 2.6.2 Main Components: Main components of the lighting fixture are shown in Figure below: 1. Heat sink 2. Electric cover plate 3. Circuit board 4. Electric box 5. Front panel 6. LED baseplate 7. Front lens 8. -
Page 12: Structure Diagram Of Lamp Components
Advanced Airport Lighting System 2.6.4 Structure Diagram of Lamp Components 1. Set screw of pressing bracket 2. Pressing bracket of front lens 3. Front lens 4. Lens gasket 5. Set screw of baseplate 6.LED baseplate 7. Front panel 2.6.5 Structure Diagram of Holder Assy 1. -
Page 13: Installation
Advanced Airport Lighting System 3.0 Installation Correct installation of lighting fixtures is very important for ensuring their normal work and giving play to their functions. Make sure that they are installed by the professional. Installing the lighting fixtures by the laypeople is strictly prohibited. -
Page 14: Installation Steps
Advanced Airport Lighting System 3.2 Installation Steps Unpacking to check whether the article quantity is correct and the lighting fixtures are damaged. Please handle the lighting fixtures with care to avoid damaging the assy. Clean the site especially the place contacting the lighting fixture flange. ... -
Page 15: Horizontal And Vertical Beam Angle Adjustment Of Lighting Fixtures
Advanced Airport Lighting System 3.3 Horizontal and Vertical Beam Angle Adjustment of Lighting Fixtures 3.3.1 Operating Units of Lighting Fixture Adjustment 1. Connecting piece 2. Coupling screw 3. Set screw in the vertical direction 4. M5 adjusting pin 5. Fixed part 6. -
Page 16: Adjustment Of Vertical Beam Angle
Advanced Airport Lighting System 3.3.3 Adjustment of Vertical Beam Angle: 1. Connecting piece 2. Coupling screw 3. Set screw in the vertical direction 4. M5 adjusting pin 5. Fixed part 6. Vertical angle adjustment scale Unscrew and pull out 4. Adjusting screw in the vertical direction, unscrew 2. Coupling screw on 1. -
Page 17: Lamp And Control
Advanced Airport Lighting System 4. 0 Lamp and Control This lighting fixture is directly connected with CCR through isolation transformer. Lamp: 24W, 16 LED particles, divided into two LED baseplates Isolation transformer: Power: 50W Current: 6.6A 4.1 Light Wiring Schematic Diagram LED lamp Secondary connector Open circuit... -
Page 18: Maintenance Of Lighting Fixtures
Advanced Airport Lighting System 5.0 Maintenance of Lighting Fixtures Maintenance of lighting fixtures shall comply with Part 9 ICAO Airport Service Manual Part 9 “Airport Maintenance Practices” and FAA AC150/5345-26 Maintenance of Airport Visual Aid Facilities. 5.1 Replace Lamp 1. Set screw of pressing bracket 2. -
Page 19: Daily Maintenance
Advanced Airport Lighting System 5.2 Daily Maintenance Daily maintenance is as follows: All set screws and tether connecting screws of the lighting fixtures. Check whether the flange screw is firm and the frangible pole is normal. Wipe the outer surface of the front glass with a clean and soft towel to keep the optical lens bight and clean. -
Page 20: List Of Components And Ordering Of Spare Articles And Accessories
Advanced Airport Lighting System 5.3 List of Components and Ordering of Spare Articles and Accessories The table in this chapter lists the components, spare articles and accessories of this product and relevant ordering information. Spare articles and accessories of this product needs to be ordered additionally, and the manufacturer accepts the order in assembly mode and separate order of components. -
Page 21: Failure Countermeasures
Advanced Airport Lighting System List of supporting accessories of this product is as follows (needing additional order): Serial No. Order No. Description 927151 12 inches shallow base assy (bottom entry) 927156 12 inches shallow base assy (side entry) Deep base (H550) assy For the opening 82732X direction, please contact us. -
Page 22: Packaging, Transportation And Storage
Advanced Airport Lighting System 6.0 Packaging, Transportation and Storage 6.1 Packaging and Weight Packaging: 1 pcs / box Volume: 600×400×500 Weight: 13Kg 6.2 Transportation Mode Well packed products may be transported in three modes- railway, highway and air according to factors such as transportation distance, quantity of lights and delivery cycle. - Page 23 Advanced Airport Lighting System The final right to interpret this manual is reserved by Airsafe Airport Equipment Co., Ltd. Thanks for your purchasing and using AIRSAFE product! Address: No. 38, Anxin Road, Xuhang Town, Jiading District, Shanghai, China Postal Code: 201800 Tel.: 021-53540453...
