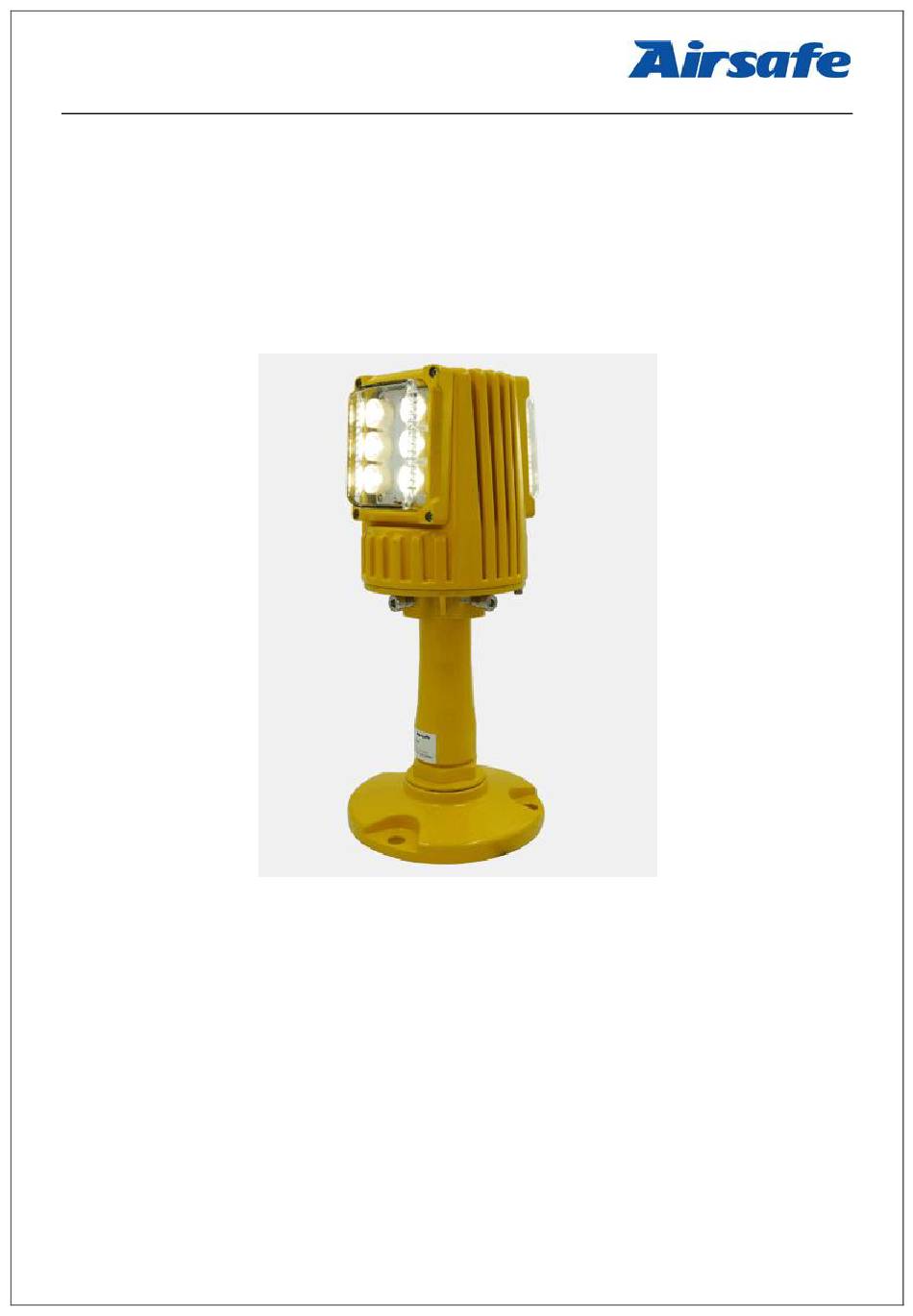

Advanced Airport Lighting System
LED Elevated Runway Edge Light
EBL-RE-LED
Operation Manual
Please read this manual carefully before construction, installation and operation of the product.
Please keep this manual properly for further reference.
This manual is subject to change without prior notice.
Airsafe Airport Equipment Co., Ltd.
Advertisement
Table of Contents
Related Manuals for Airsafe EBL-RE-LED
Summary of Contents for Airsafe EBL-RE-LED
- Page 1 LED Elevated Runway Edge Light EBL-RE-LED Operation Manual Please read this manual carefully before construction, installation and operation of the product. Please keep this manual properly for further reference. This manual is subject to change without prior notice. Airsafe Airport Equipment Co., Ltd.
- Page 2 Advanced Airport Lighting System Revision Description Description Version No. Revised by Approved by Date First release V1.0 C.SY Aug. 2, 2016...
-
Page 3: Table Of Contents
Advanced Airport Lighting System Table of Content 1.0 Foreword................................1 1.1 Illustrations and Meanings ..........................1 1.2 Safety Rules and Notices ..........................2 1.3 Quality Assurance and Responsibility ......................3 2.0 Introduction ................................4 2.1 Technical Specifications ..........................5 2.2 Application Environment ..........................5 2.3 Application Scope ............................5 2.4 Technical Parameters ............................5 2.5 Technical Features ............................6 2.6 Structure................................6... -
Page 4: Foreword
Advanced Airport Lighting System 1.0 Foreword ICAO Airport Service Manual Part 9 “Airport Maintenance Practices” and FAA AC150/5345-26 Maintenance of Airport Visual Aid Facilities are the highest criterions for site installation and maintenance of such lighting fixtures. This manual was compiled with considerable reference to these two criterions. -
Page 5: Safety Rules And Notices
Advanced Airport Lighting System 1.2 Safety Rules and Notices Using the light fixtures outside of airport is strictly prohibited. ※ Inadequate maintenance or casual touch will cause light faults. Using power supply other than CCR is strictly prohibited. ※... -
Page 6: Quality Assurance And Responsibility
Advanced Airport Lighting System 1.3 Quality Assurance and Responsibility Any defect in design, material or workmanship, which may occur during proper and normal use over a period of one year from date of installation but less than 15 months from date of shipment, or within the warranty period of the tender, will be repaired or preplaced by manufacturer free of charge. -
Page 7: Introduction
Advanced Airport Lighting System 2.0 Introduction This manual involves the following series lighting fixtures: EBL-RE-LED ------------------------------ LED Elevated Runway Edge Light Type of LED Elevated Runway Edge Light (EBL-RE-LED): Type EBL-RE = Elevated runway edge light Light source LED = LED lamp... -
Page 8: Technical Specifications
Using the lighting fixtures beyond the specified scope is strictly prohibited. ※ Application beyond the specified scope will cause damage or risk to any component. 2.4 Technical Parameters Rated Power Life of Light Description Type Power Factor Source LED Elevated Runway Edge EBL-RE-LED-XX- ≥50,000h 36VA >0.9 Light... -
Page 9: Technical Features
Advanced Airport Lighting System 2.5 Technical Features ○ Long life, energy saving, maintenance free and other characteristics of LED will bring huge economic benefits to customers; ○ Dimming curve of the lighting fixtures is consistent with the change of halogen lamp, and meets the requirements of FAA;... -
Page 10: Fault Detection Or Lamp Bypass Functions
Advanced Airport Lighting System 2.7 Fault Detection or Lamp Bypass Functions This product complies with the requirements of FAA EB67 and GB/T 7256, and integrates single lamp fault detection function; Or, it can provide the option of lamp bypass function in accordance with the requirements of FAA AC150-5345/46. -
Page 11: Installation
Advanced Airport Lighting System 3.0 Installation Requirements for installation should be learned thoroughly before installation including installation tools and site requirement, etc., to avoid malfunction of the light due to incorrect installation. 3.1 Installation Methods ○ Mounted on L- 867 deep base (Figure 3-1). ○... -
Page 12: Installation Tools
Advanced Airport Lighting System 3.2 Installation Tools Choosing right tools not only can ensure the correct and reliable installation of the lighting fixtures, but also can reduce unnecessary safety accidents. Special Tools listed in the table may be purchased from the manufacturer or any distributor. Universal tools are available on local hardware market. -
Page 13: Direction Installation Of Flange
Advanced Airport Lighting System 3.4 Direction Installation of Flange ○ This manual does not give any guidance to installation of chassis. Please seek for technical support from construction side. Dimension of chassis to be installed is as follows: ○ After installation of chassis (embedded pile) (See Figure 3-4), in accordance with construction requirements, connect secondary cable, and screw frangible pole of the lighting fixtures in the threaded hole on flanges. - Page 14 Advanced Airport Lighting System Elevated light nut wrench Figure 3- 6 Figure 3-7 Tighten screw Figure 3-8 -11-...
-
Page 15: Operation And Control
Advanced Airport Lighting System 4.0 Operation and Control The lighting fixtures are applicable to CCR power supply 6.6A circuit special for airports, which forms a secondary circuit with the lighting fixtures through secondary outgoing line of isolation transformer connected on primary circuit. Due to the use of isolation transformer, the damage of lamp of single lighting fixture will not affect whole series circuit. -
Page 16: Replacement Of Components Of Lighting Fixtures
Advanced Airport Lighting System 5.0 Replacement of Components of Lighting Fixtures When any damage or failure occurs to any consumable or other component of the lighting fixtures, it is required to timely dismantle the lighting fixtures for replacement of the component. Replacement of components needs to dismount the lighting fixtures, so any minor error will cause adverse consequences. -
Page 17: How To Replace Frangible Pole
Advanced Airport Lighting System 5.1 How to Replace Frangible Pole ○ Loosen fastening screw on the body, hold the head, and disconnect the lighting fixtures from flanges with elevated light nut wrench. (See Figure 5-1) ○ Separate secondary plug; take new frangible pole, insert it in working position, and screw it down with internal hexagonal wrench. -
Page 18: How To Replace Front Glass And Its Gasket Sleeve
Advanced Airport Lighting System 5.2 How to Replace Front Glass and its Gasket Sleeve Figure 5-4 Figure 5-5 ○ Twist off four screws which fix front glass junk ring, and remove front glass junk ring. (See Figure 5-4) ○ Take out old front glass and gasket sleeve, replace them with new front glass and gasket sleeve, pay attention to gasket sleeve direction and front glass direction, and make “TOP”... -
Page 19: How To Replace Gasket
Advanced Airport Lighting System 5.3 How to Replace Gasket Figure 5-6 Figure 5-7 Figure 5-8 ○ Twist off four screws which fix the body and tray (See Figure 5-6). ○ Remove old gasket of body, and install new gasket of body (See Figure 5-7). ○... -
Page 20: Maintenance Of Lighting Fixtures
Advanced Airport Lighting System 6.0 Maintenance of Lighting Fixtures Suggestions for daily maintenance provided in this section are only for reference. Airports may formulate their own daily maintenance guidelines with reference to other provisions or maintenance experience of airport staff; the manufacturer does not provide any hard-and-fast rules. Maintenance of the lighting fixtures for airports shall be conducted by professionals as stated in 1.0 Foreword. -
Page 21: Regular Spot Check And Troubleshooting
Advanced Airport Lighting System 6.2 Regular Spot Check and Troubleshooting Serial No. Failure Phenomenon Possible Reasons Countermeasures Replace LED lamp assy or LED aging or other LED lamp assy failure send lighting fixtures back to unknown failure factory for repair. The lighting fixtures is There are some stains on Clean up stains on optical... -
Page 22: List Of Components And Ordering Of Spare Articles And Accessories
Advanced Airport Lighting System 7.0 List of Components and Ordering of Spare Articles and Accessories The table in this chapter lists the components, spare articles and accessories of this product and relevant ordering information. Spare articles and accessories of this product needs to be ordered additionally, and the manufacturer accepts the order in assembly mode and separate order of components. - Page 23 Advanced Airport Lighting System List of supporting accessories of this product is as follows (needing additional order): Serial No. Order No. Description 276A1 Flange 240 70703 A7 dual-core socket 54101 Elevated light nut wrench 27683 Flange 304mm (FAA standard) TJB-12-L867 L867 deep bucket ITF-45-066 45W isolation transformer...
-
Page 24: Packaging, Transportation And Storage
Advanced Airport Lighting System 8.0 Packaging, Transportation and Storage 8.1 Packaging and Weight Packaging: 4 pcs / box (excluding flange) Gross weight: 17.5 KG / box Volume: 385*335*385 8.2 Transportation Mode Well packed products may be transported in three modes- railway, highway and air according to factors such as transportation distance, quantity of lights and delivery cycle. - Page 25 Advanced Airport Lighting System The final right to interpret this manual is reserved by Airsafe Airport Equipment Co., Ltd. Thanks for your purchasing and using AIRSAFE product! Address: No. 38, Anxin Road, Xuhang Town, Jiading District, Shanghai, China Postal Code: 201800 Tel.: 021-53540453...
