Summary of Contents for Logik LPDELL16

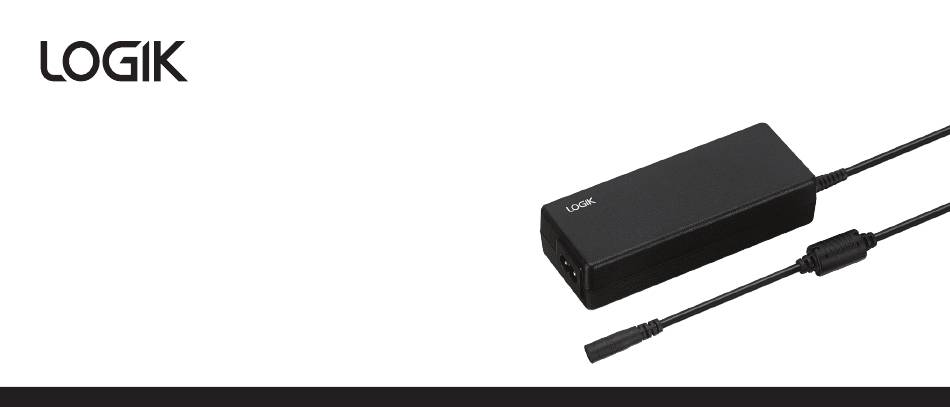

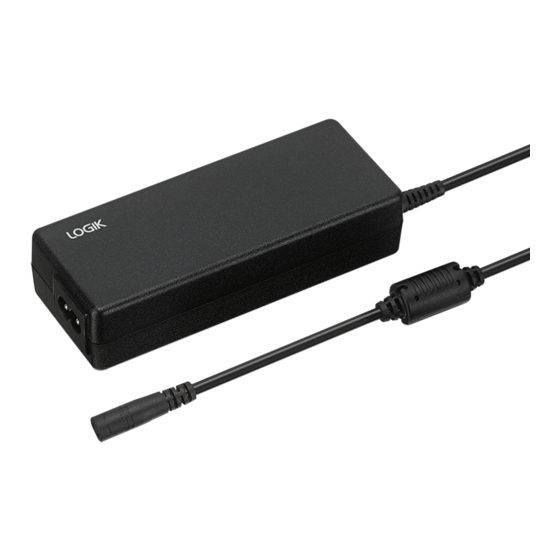

- Page 1 Dell Laptop Power Adaptor Instruction Manual LPDELL16...
-
Page 3: Table Of Contents
Contents Safety Warnings ............. 4 Unpacking ..............5 Connecting the Power Adaptor ........6 Compatibility Table ............8 Specifications ..............9... -
Page 4: Safety Warnings
Safety Warnings • When operating your adaptor, regularly check that all connections are firmly connected. Loose connections can generate harmful heat that can damage your adaptor or attached laptop computer. • Do not operate your adaptor near a heat source, heat vent, or in direct sunlight. Your •... -
Page 5: Unpacking
Unpacking Thank you for purchasing your new Remove all items from the packaging. Retain the product. packaging. If you dispose of it please do so according We recommend that you spend some time to local regulations. reading this instruction manual in order that you The following items are included: fully understand all the operational features it offers. -
Page 6: Connecting The Power Adaptor
Connecting the Power 1. Confirm the brand, voltage and output wattages of your Adaptor laptop. Make sure the voltage is between 100-240V~, and output watts are less than 90W. • Using an incorrect tip for your laptop 2. Check the Compatibility Table to find out which tip computer may damage your computer or should be used for the brand of your laptop. - Page 7 3. Connect the tip to the adaptor 5. Connect the DC cable with the DC cable connector. correct tip to the power socket on your laptop. Ensure the tip is pushed all the way onto the Ensure the tip is not adaptor cable.
-
Page 8: Compatibility Table
Compatibility Table Some tips may not be compatible with all models of the laptops shown. Brand names and trademarks are the property of their Adaptor Compatible laptop respective owners. tips Acer, Asus, Clevo, Compaq, Fujitsu, Hitachi, HP, IBM, Lenovo, NEC, Panasonic, Sharp, Toshiba Dell Dell... -
Page 9: Specifications
Specifications Input 100-240V~, 1.6A, 50/60Hz Output 19V DC, 4.74A, 90W Features and specifications are subject to change without prior notice. - Page 10 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate. Notes for battery disposal The batteries used with this product contain chemicals that are harmful to the environment.
- Page 11 This unit is designed for indoor use only. The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. This equipment is a Class II or double insulated electrical Instead, it is your responsibility to dispose of your waste equipment appliance.
- Page 12 Currys Group Limited (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative Currys Ireland Limited (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-LPDELL16-220210V4...
