Summary of Contents for Logik LAVSEN10

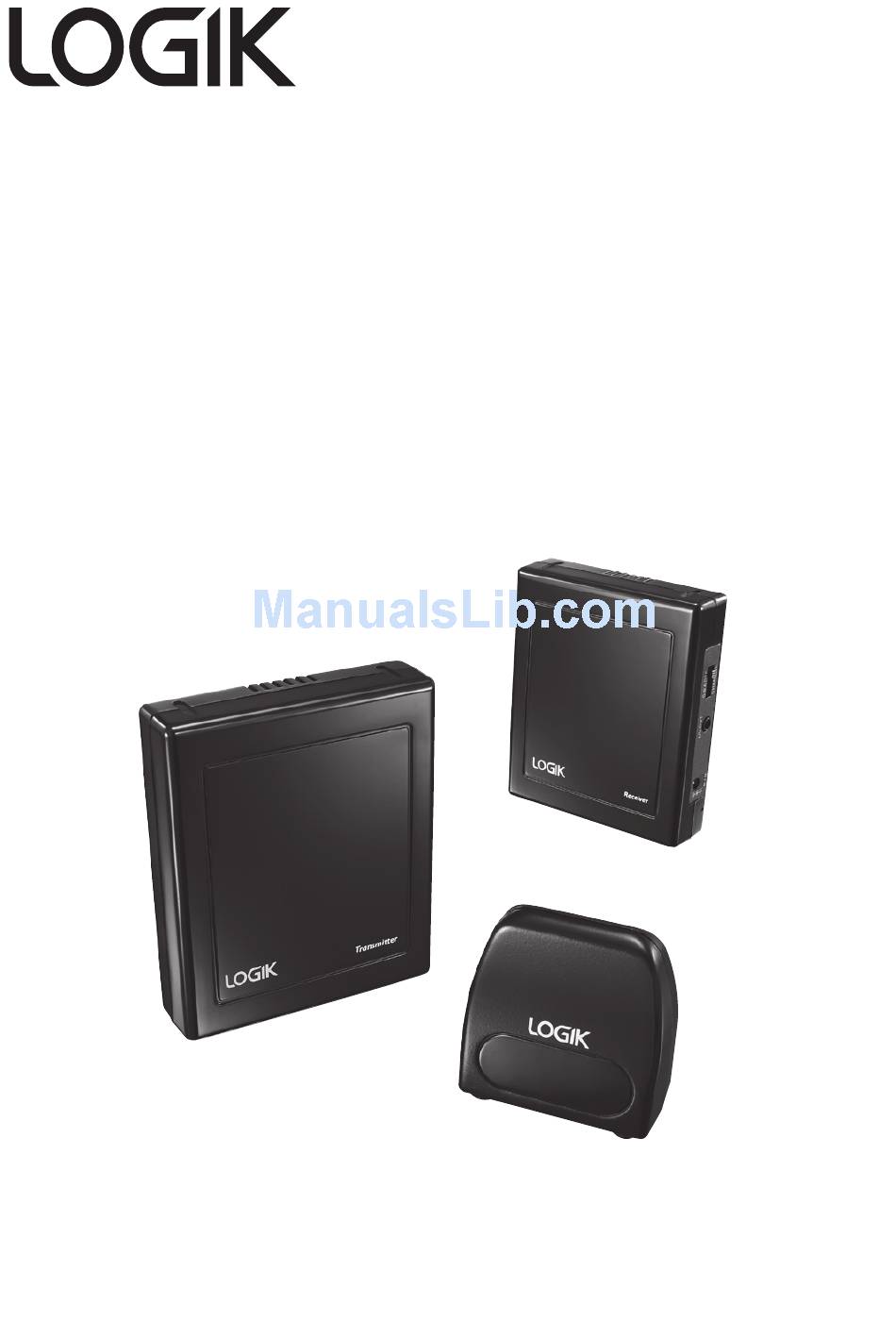

  • Page 1 5.8 GHz Wireless AV Sender Instruction Manual LAVSEN10...
  • Page 3: Table Of Contents

    Contents Unpacking ��������������������������������������������������������������������������������� 4 Product Overview ��������������������������������������������������������������������� 5 Transmitter �������������������������������������������������������������������������������������������������������������5 Receiver �������������������������������������������������������������������������������������������������������������������5 IR Remote Extender ���������������������������������������������������������������������������������������������6 Getting the Best Reception ������������������������������������������������������������������������������7 Setting Up your AV Sender ������������������������������������������������������ 8 Connecting the Receiver �����������������������������������������������������������������������������������8 IR Remote Extender ���������������������������������������������������������������������������������������������8 Connecting the Transmitter �������������������������������������������������������������������������� 10 Hints and Tips �������������������������������������������������������������������������...
  • Page 4: Unpacking

    Thank you for purchasing your new Logik 5�8 GHz Wirless AV Sender� We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly� Read all the safety warnings carefully before use and keep this manual for future reference�...
  • Page 5: Product Overview

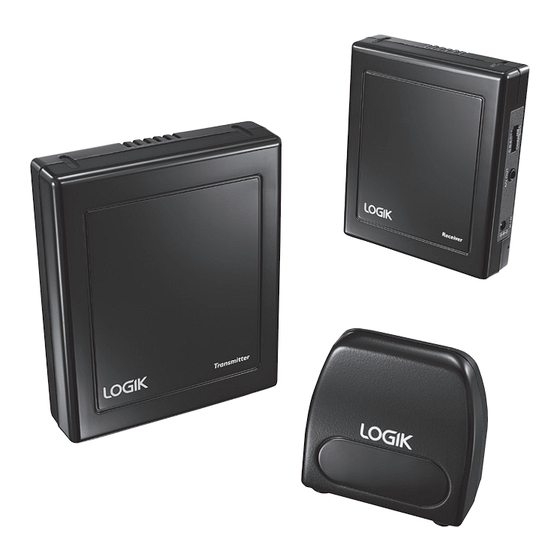

    Product Overview Transmitter IR EXT. A/V IN 1� Transmitter aerial 2� Power adapter socket 3� IR remote extender socket 4� A/V IN socket 5� Channel select / OFF switch Receiver A/V OUT 1� Power adapter socket 2� A/V OUT socket 3�...
  • Page 6: Ir Remote Extender

    IR Remote Extender rear side 1� Remote control sensor 2� Battery compartment 3� 1�5V AAA Batteries Handling the Batteries • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property�...
  • Page 7: Getting The Best Reception

    Getting the Best Reception 1� This system is a wireless communication product� The installation location should have no blockage to avoid interfering with transmission and reception� The distance between the transmitter and receiver should be greater than 5 metres to receive the best signal� 2�...
  • Page 8: Setting Up Your Av Sender

    Setting Up your AV Sender Connecting The Receiver (connect to 2 TV (e�g� bedroom or kitchen) 1� Plug the supplies 3�5mm to RCA cable into the A/V OUT socket on the receiver and then plug into the RCA socket on your TV located in the receiving room�...
  • Page 9 Bedroom Receiver *Optional A/V OUT 3.5mm to SCART IN RCA Cable RCA Adapter 3.5mm to RCA Cable Power Adapter IR Remote Extender IR Remote Extender Receiver GB-9...
  • Page 10: Connecting The Transmitter

    Connecting The Transmitter (main viewing room, e�g� sitting room) 5� Plug the supplied 3�5mm to RCA cable into the A/V IN socket on the transmitter and then plug into the SCART output socket on your AV source device (e�g� satellite receiver, VCR or DVD player)� **Optional: Alternatively you may also use the supplied SCART OUT RCA adapter (Transmitter)�...
  • Page 11 Sitting room Transmitter IR EXT. A/V OUT **Optional 3.5mm to SCART OUT RCA Cable RCA Adapter Player 3.5mm to RCA Cable Satellite / VCR / DVD Player IR Remote Extender Cable Power Adapter GB-11...
  • Page 12 Bedroom IR Remote Extender Receiver DVD Player Sitting Room Transmitter GB-12...
  • Page 13: Hints And Tips

    Hints and Tips Buzzing noise • Slightly change the position of the when you use the receiver or the transmitter until the remote control� buzzing sound stops� • Sometimes it is not possible to solve the problem� The image of • Turn off the auto standby mode of the the video source video source�...
  • Page 14: Specifications

    Specifications Transmitter Video Input RCA JACK, 1Vp-p, 75Ω Audio Input RCA JACK, 1Vp-p, 10KΩ Transmitter Frequency 5�745 ~ 5�805GHz Modulation FM (Audio & Video) Channel Number 3@18MHz/CH� RF Output Level 10dBm Clear Line-Of Sight Range Max� 30m Power Source 230V ~ 50Hz/7�2V , 250mA Adapter IR Emitter Section Carrier Frequency...
  • Page 15: Receiver

    Receiver Video Input RCA JACK, 1Vp-p, 75Ω Audio Input RCA JACK, 1Vp-p, 10KΩ Transmitter Frequency 5�745 ~ 5�805GHz Channel Number 3@18MHz/CH� Power Source 230V ~ 50Hz/7�2V , 250mA Adapter IR Emitter Section Carrier Frequency 30K~60KHz Half Angle ±33° Receiver Distance 4�5 Meters (Min�) 6 Meters (Typ�) RF Section Transmitter Frequency...
  • Page 16: Safety Warnings

    Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference� • Retain the manual� If you pass the unit onto a third party make sure to include this manual� • Check that the voltage marked on the rating label matches your mains voltage� Damage • Please inspect the unit for damage after unpacking�...
  • Page 17 • Unplug the unit from the mains socket during a lightning storm� • In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e�g� overnight, while on holiday or while out of the house� Switch it off and disconnect the mains adapter from the mains socket�...
  • Page 20 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Transmitter VT58LOW=175U Receiver VR58LOW=175U IR Remote Extender ST18IR=175U SCART OUT RAC Adapter (for transmitter) 149=00000114 SCART IN RAC Adapter (for receiver) 149=00000113 Power Adapter 307001=10206...
