Summary of Contents for Logik LNPHP15

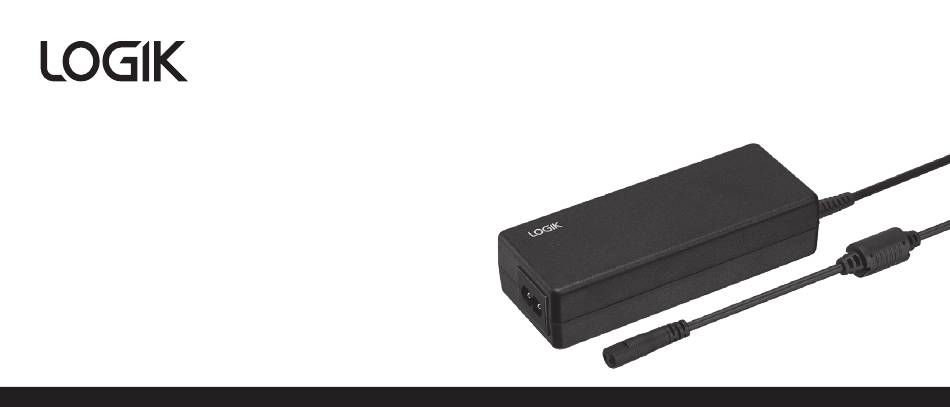

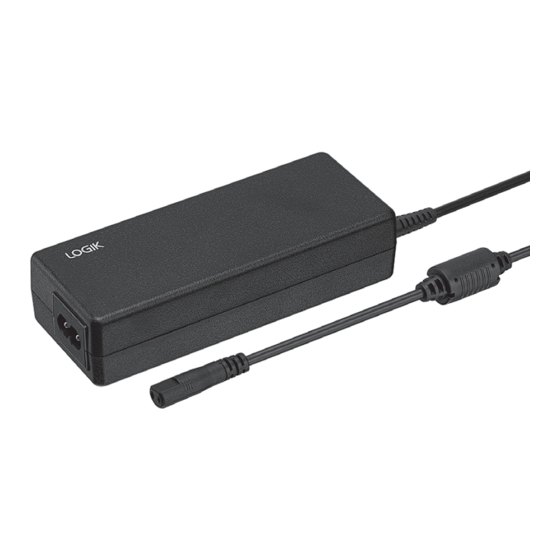

- Page 1 HP Laptop Power Adaptor Instruction Manual LNPHP15...
-
Page 3: Table Of Contents
Contents Safety Warnings ............. 4 Unpacking ..............5 Connecting the Power Adaptor ........6 Compatibility Table ............8 Specifications ..............9... -
Page 4: Safety Warnings
Safety Warnings • When operating your adaptor, regularly check that all connections are firmly connected. Loose connections can generate harmful heat that can damage your adaptor or attached laptop computer. • Do not operate your adaptor near a heat source, heat vent, or in direct sunlight. Your •... -
Page 5: Unpacking
Unpacking Thank you for purchasing your new Remove all items from the packaging. Retain the product. packaging. If you dispose of it please do so according We recommend that you spend some time to local regulations. reading this instruction manual in order that you The following items are included: fully understand all the operational features it offers. -
Page 6: Connecting The Power Adaptor
Connecting the Power 1. Confirm the brand, voltage and output wattages of your Adaptor laptop. Make sure the voltage is between 100-240V~, and output watts are less than 90W. • Using an incorrect tip for your laptop 2. Check the Compatibility Table to find out which tip computer may damage your computer or should be used for the brand of your laptop. - Page 7 3. Connect the tip to the adaptor 5. Connect the DC cable with the DC cable connector. correct tip to the power socket on your laptop. Ensure the tip is pushed all the way onto the Ensure the tip is not adaptor cable.
-
Page 8: Compatibility Table
Compatibility Table Adaptor Compatible laptop tips Some tips may not be compatible with all Acer, Asus, Clevo, Compaq, Fujitsu, models of the laptops shown. Brand names Hitachi, HP, IBM, Lenovo, NEC, Panasonic, and trademarks are the property of their Sharp, Toshiba respective owners. -
Page 9: Specifications
Specifications Input 100-240V~, 1.6A, 50/60Hz Output 19V DC, 4.74A, 90W Features and specifications are subject to change without prior notice. - Page 10 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
- Page 11 This unit is designed for indoor use only. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
- Page 12 Currys Group Limited (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative Currys Ireland Limited (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-LNPHP15-220210V6...
