StarTech.com 109B-USBC-HDMI Quick Start Manual

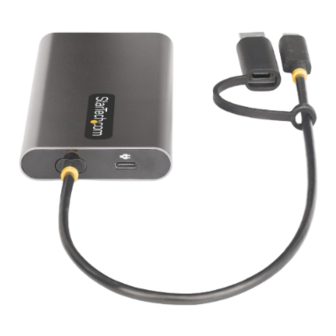

USB-C/USB-A to Dual HDMI - 4K 60Hz - 100W Power Delivery
Product ID
109B-USBC-HDMI
1
2
Component
1
HDMI Output 1
2 HDMI Output 2
3 USB-C Host Connection
4
USB-C to USB-A Adapter
Power Delivery Pass-
5
through Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
3
4
Function
Connect to an HDMI Display
•
Connect to an HDMI Display
•
Connect to a USB-C Enabled Computer
•
Connect to the USB-C Host Connection to use
•
with a USB-A Enabled Computer
Connect a USB-C Power Adapter
•
USB Power Delivery 3.0 (up to 100W, with up to
•
90W available for host charging)
Requirements
For the latest drivers/software, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/109B-USBC-HDMI
Package Contents
USB-C/USB-A to HDMI Adapter x 1
•
Quick-Start Guide x 1
•
Driver Installation
Installation is automatic for Windows 10 & up, and ChromeOS. If the drivers do
not auto-install, contact your IT administrator. If you are using macOS or another
supported operating system, the latest drivers are available at:
www.StarTech.com/109B-USBC-HDMI
Note: Operating system requirements are subject to change. For the latest
requirements, please visit: www.StarTech.com/109B-USBC-HDMI
Installation
Installing the Video Adapter
(Optional) Connect a USB-C Power Adapter (up to 100W) from an AC Outlet to the
1.
USB-C Power Delivery Pass-through Port, located on the USB Video Adapter, to
charge the host computer.
Note: A USB-C Port with Power Delivery on the host is required for PD Pass-through
to charge the host. When using the USB-C to USB-A Adapter to connect to a USB-A
Host, PD Pass-through is not available.
Connect the USB Host Connection to an available USB-C or USB-A Port on the Host
2.
Computer.
Connect an HDMI Cable (sold separately) from the HDMI Output 1 on the USB
3.
Video Adapter, to an HDMI Display.
Connect an HDMI Cable (sold separately) from the HDMI Output 2 on the USB
4.
Video Adapter, to an HDMI Display.
Arrange the display using the operating system's Display Settings.
5.
Quick-Start Guide
Manual Revision: January 16, 2023 9:41 AM
