7. Use the torque wrench to reconnect the RF cables to the Chan connectors. Tighten the cables by
turning clockwise until you hear a click from the wrench. DO NOT overtighten connectors as this will
cause the RF cable to break. The TRACER 4x03 system will not operate properly with broken RF
cables.
8. Reinstall the cover and carefully tighten all screws.
9. Change label on back of the unit to reflect the Plan change.
4
CH2
CH1

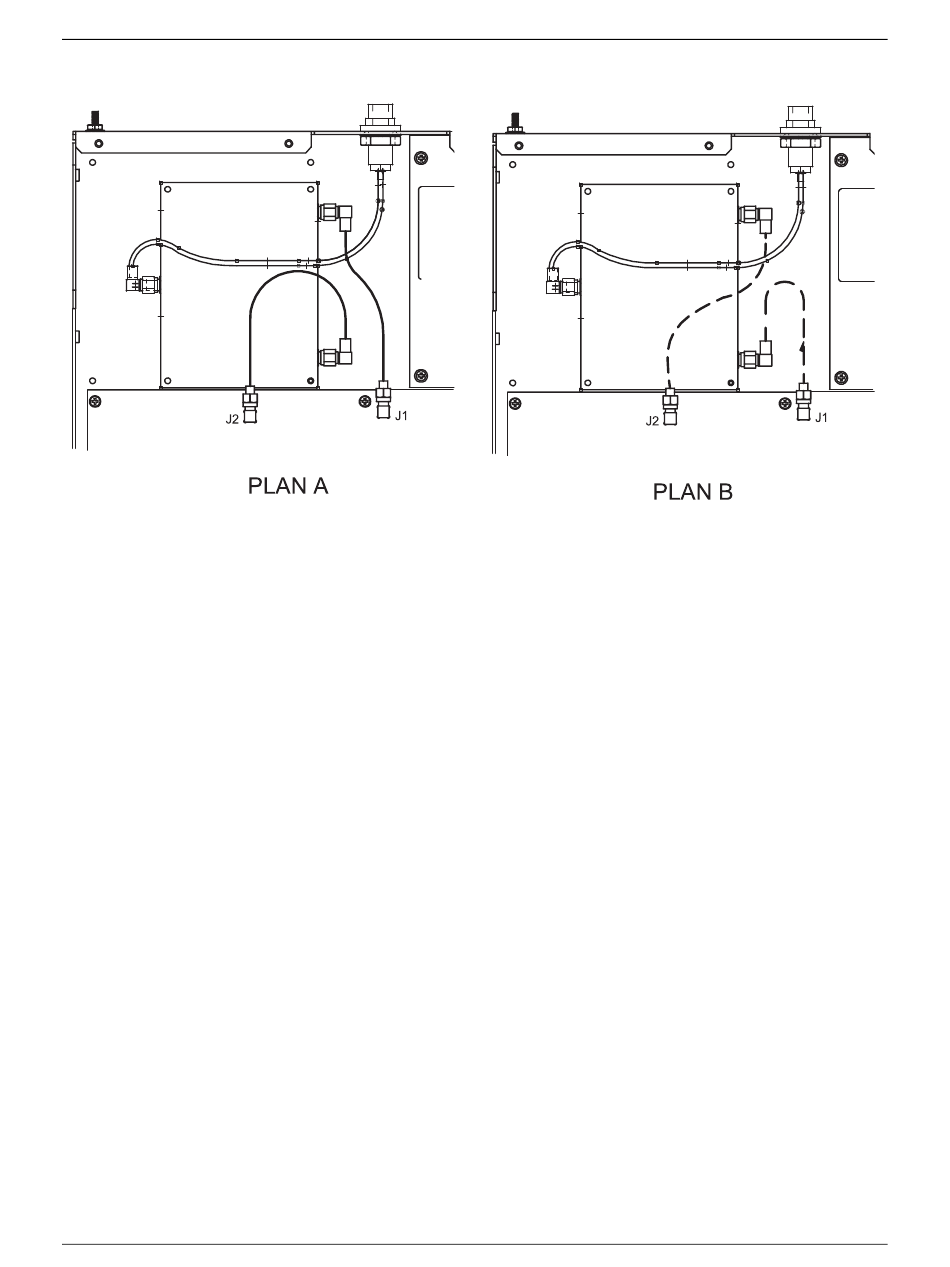

Figure 4. TRACER 4203 Cable Routing Diagrams
