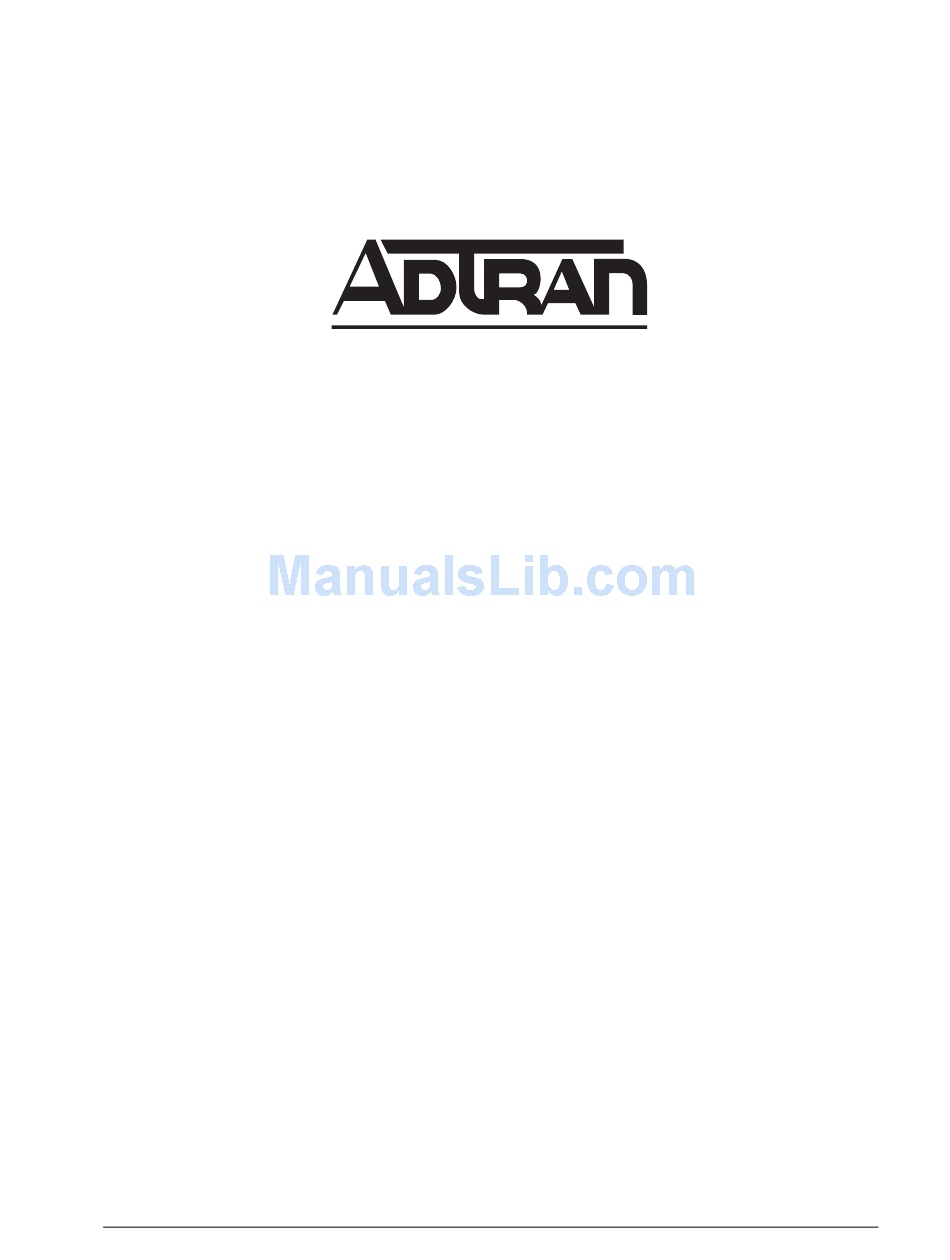

- Page 1 TRACER ® 4103/4203 User Manual TRACER 4103/4203 User Manual 61280242T1R1A-1A...
- Page 2 61280242T1R1A-1A TRACER 4103/4203 User Manual...
- Page 3 Rules and Regulations. This device must be professionally installed. Exposure to Radio Frequency Fields The TRACER 4103 operates in the 2.4 GHz Industrial, Scientific, and Medical (ISM) band with 100 mW power output, while the TRACER 4203 operates in the 5.8 GHz ISM band with 100 mW pow- er output.
- Page 4 During installation and alignment of the antenna, do not handle or touch the front of the antenna. These simple precautions must be taken to prevent general population and installation personnel from exposure to RF energy in excess of specified MPE levels. TRACER 4103/4203 User Manual...
-
Page 5: Table Of Contents
61280242T1R1A-1A Table of Contents Page Section 1 TRACER 4103/4203 Description Introduction..........................13 ISM Band Spread Spectrum ....................13 Direct Sequence ......................13 Coding..........................13 Applications ..........................14 Channel Selection ........................14 Forward Error Correction ......................15 T1 Operation ........................15 Framing......................15 Line Code......................15 DS1/DSX-1 Interface..................16 Line Buildout or LBO..................16 TRACER 4103/4203 System Configuration ................16... - Page 6 Section 3 Operation VT 100 User Interface ......................29 RS-232 Interface ........................29 Modem Connection........................29 Cable Connections ........................30 Password ..........................30 Menu Selections........................30 TRACER System Status ....................30 Main Menu........................31 TRACER System Configuration .................31 TRACER Link Performance History................33 T1A and T1B Status/Configuration/Loopback............33 TRACER 4103/4203 User Manual...
- Page 7 Spread Spectrum Data Pump ....................41 T1 Interface Specifications ......................41 User Interface...........................42 VT 100 Terminal Interface ......................42 Mechanical & Environmental....................42 Power ............................42 Section 6 Warranty, Ordering and Return Warranty ..........................43 Sales ............................43 Technical Support ........................43 Repairs and Returns .........................43 TRACER 4103/4203 User Manual...
- Page 8 61280242T1R1A-1A Table of Contents Glossary Acronyms Used in this Manual ....................45 Appendix A Cable Connections Terminal Connection (DB25) ....................47 Personal Computer Connection (DB9) ..................47 Modem Connection (DB25) ....................47 TRACER 4103/4203 User Manual...
- Page 9 List of Figures Figures Figure 1-1. Typical Application ..................14 Figure 1-2. Bandwidth Division ..................15 Figure 1-3. TRACER 4103/4203 Rear Panel ..............16 Figure 1-4. TRACER 4103 Front Panel ................17 Figure 3-1. TRACER System Status ..................30 Figure 3-2. TRACER Main Menu ..................31 Figure 3-3.
-
Page 10: List Of Figures
61280242T1R1A-1A List of Figures TRACER 4103/4203 User Manual... - Page 11 61280242T1R1A-1A List of Tables Tables Table 3-1. T1 Interface Alarms ..................35 TRACER 4103/4203 User Manual...
-
Page 12: List Of Tables
61280242T1R1A-1A List of Tables TRACER 4103/4203 User Manual... -
Page 13: Section 1 Tracer 4103/4203 Description
30 miles or more depending on path engineering. System performance is determined, in part, by the engineering of the microwave link. Each end of a TRACER 4103/4203 link is composed of a single rackmount unit. Two DS1/DSX-1 (T1) interfaces are provided on the rear of the TRACER 4103/4203, which can be mounted in a 19 or 23 inch rack. -
Page 14: Applications
Figure 1-1. Typical Application The TRACER 4103 or 4203 can be used in any application requiring that data be shared at a high rate of speed. In addition to telephony applications, TRACER 4103 or 4203 can be used in data communications such as internet networking, video conferencing, and telemetry. -
Page 15: Forward Error Correction
Error correction can be accomplished by allowing the receiver to request the retransmission of a detected errored block. The TRACER 4103 and TRACER 4203, on the other hand, implement forward error correction (FEC) which adds enough overhead data for the receiver to detect and correct errors in the data stream without the need for retransmission. -
Page 16: Ds1/Dsx-1 Interface
“0s” and the data is recovered intact. DS1/DSX-1 Interface When connecting the interface to the public switched network, an ADTRAN-provided cross-over cable (part number 3125M011) is required to meet FCC part 68 and IC CS03 requirements. This cable is required to cross-over the Tx and Rx pairs to meet the connecting arrangement of a network interface device. -
Page 17: Vt 100 Rs-232 Interface
AC adapter is available (ADTRAN P/N 1280650L1). TRACER 4103/4203 Front Panel The TRACER 4103 front panel is illustrated in Figure 1-4. The 4203 front panel is identical except for the model number. Figure 1-4. TRACER 4103 Front Panel... -
Page 18: Non-Volatile Memory
LBKA ...... Toggles T1A between no loopback and line loopback LBKB ...... Toggles T1B between no loopback and line loopback Non-volatile Memory The TRACER 4103/4203 system contains non-volatile memory to retain certain configuration settings. These settings include: Frequency plan Chipping code... -
Page 19: Built-In Tests
This test point is provided to assess relative signal level for alignment of antennas. Antenna TRACER 4103/4203 is intended to be coupled with an antenna that is directional and provides signal gain. There are several reasons for this requirement: •... - Page 20 61280242T1R1A-1A Section 1 TRACER 4103/4203 Description TRACER 4103/4203 User Manual...
-
Page 21: Section 2 Installation
ECTION UNPACK, INSPECT Carefully inspect the TRACER 4103/4203 for any damage. If damage is suspected, file a claim with the carrier, then contact ADTRAN Customer Service. If possible, keep the original shipping container for use in shipping the TRACER 4103/4203 back for repair or for verification of damage during shipment. -
Page 22: Ds1/Dsx-1 Interface
The supplemental equipment grounding terminal is located on the rear panel of the TRACER 4103/4203. DS1/DSX-1 Interface The rear panel of the TRACER 4103/4203 has two sets of jacks labeled T1A and T1B which provide the same functionality. The pin assignments for the eight-position modular jack are listed below. Name Function 1.... -
Page 23: Link Planning
Tx and Rx pairs to meet the connecting arrangement of a network interface device. This cable, labeled “T1 Crossover,” is included with the TRACER 4103/4203. For connections to other CPE-type equipment, such as an ADTRAN TSU, a straight-through T1 cable (ADTRAN P/N 3127004) is included with the TRACER 4103/4203. -
Page 24: Antenna Feedline Loss
Feedline loss is a function of feedline type and length. Feedline loss per 100 feet for several types of coax at RF frequencies is detailed in the table below. The RF loss applies to TRACER 4103/4203 to antenna interconnection. Antenna manufacturers' specifications may vary. -
Page 25: Path Loss
GHz D is the path length in miles F is the fade margin in dB Climate factors are given below. Climate Climate Factor Very Dry ....... 1/8 Temperate ..... 1/4 Humid ......1/2 TRACER 4103 /4203 User Manual... -
Page 26: Setting The Transmitter Power
6 dBi. At 2.4 GHz (TRACER 4103), the 1 watt maximum transmitter power must be reduced by 1 dB for every 3 dB of antenna gain over 6 dBi. Since the TRACER 4103 maximum transmit power is 100 milliwatts, only antennas with gains above 36 dBi (12 foot diameter parabolic dishes) require any reduction in transmit power. -
Page 27: Chipping Code
On the TRACER 4103/4203, plan A corresponds to a TX center frequency of 2422 MHz and an RX center frequency of 2462 MHz. Plan B on the TRACER 4103/4203 corresponds to a TX center frequency of 2462 MHz and an RX center frequency of 2422 MHz. On the TRACER 4203, plan A corresponds to a TX center frequency of 5747 MHz and an RX center frequency of 5827 MHz. -
Page 28: Rf Low
RSSI may be monitored on the front of the TRACER 4103/4203. If the received signal is too strong and RSSI reaches a maximum such that the peak cannot be discerned, then the transmitter power on the far end should be turned down. -
Page 29: Vt 100 User Interface
VT 100 USER INTERFACE The TRACER 4103/4203 may be accessed with a VT 100 compatible terminal set to 9600 bits per second, 8 data bits, and no parity, connected to the RS-232 port on the back of the unit. Flow control on the serial interface should be configured to none for proper operation. -
Page 30: Cable Connections
The password is also set via the system configuration menu. If the password is forgotten, physical access to TRACER 4103/4203 is required to access the terminal interface. The password may be bypassed by holding in the LBK A button while the system is rebooted. -
Page 31: Main Menu
Local and remote transmit power levels can be adjusted from this menu, while the receive power levels are a function of the link characteristics and cannot be changed. Selections are made by highlighting the option with the up or down arrow keys and TRACER 4103/4203 User Manual... -
Page 32: Figure 3-3. Tracer System Configuration
If password protection is enabled, the unit will automatically log out to the system status menu after 15 minutes and await password input. Password allows the password to be set or changed. The default password is tracer. Clear Performance Stats resets all the error counters. TRACER 4103/4203 User Manual... -
Page 33: Tracer Link Performance History
T1A and T1B Status/Configuration/Loopback Pressing 3 from the TRACER main menu or using the arrow keys to move to option 3 and then pressing Enter will select the T1A status/configuration/loopback menu. Option 5 selects the T1B status/ configuration/loopback menu. TRACER 4103/4203 User Manual... -
Page 34: Figure 3-5. T1A Status/Configuration/Loopback
Link - The local unit is looped at the T1 framer so that data is looped back to the far end. Line - The local unit is looped at the T1 interface so that data is looped back locally to the device attached to the T1 port. Normal - No loopback present. TRACER 4103/4203 User Manual... -
Page 35: T1A And T1B Performance History
(32 15-minute intervals) of performance history, press N. To view the previous eight hours, press P. This information is available for both ends of the link. To return to the TRACER main menu, press M. Figure 3-6. T1A Performance History TRACER 4103/4203 User Manual... - Page 36 61280242T1R1A-1A Section 3 Operation TRACER 4103/4203 User Manual...
-
Page 37: Section 4 Troubleshooting
If problems persist after you have followed the Recommended Actions, contact ADTRAN Technical Support at (888) 423-8726. Power LED is not Lit If the power LED is not lit, it is an indicator that the TRACER 4103/4203 is not receiving adequate DC power. Recommended Actions: 1. -
Page 38: Rf Low Led Is Lit
3. Verify the connections at the opposite end of the T1 cable. 4. Verify that the framing mode (ESF or D4) is on the same setting for both the TRACER 4103/ 4203 unit and the connected equipment. -
Page 39: Ais Led Is Blinking (Alarm Indication Signal Or Blue Alarm)
AIS LED is Blinking (Alarm Indication Signal or Blue Alarm) A Blue Alarm (also called AIS, keep alive, and all-ones), when indicated at TRACER 4103/4203, is generated by the attached equipment. The root cause must be determined at the attached equipment. A typical cause of a blue alarm is a lack of input to a CSU. - Page 40 61280242T1R1A-1A Section 4 Troubleshooting TRACER 4103/4203 User Manual...
-
Page 41: Section 5 Specifications
Channel Bandwidth ........40 MHz (TRACER 4103); 62 MHz (TRACER 4203) Intermediate Frequency ....................... 280 MHz Receiver Receive Level, range ....-30 to -91 dBm (TRACER 4103); -30 to -90 dBm (TRACER 4203) Receive Level, maximum ..................... -30 dBm Receive Level, nominal ......................-60 dBm Intermediate Frequency ....................... -
Page 42: User Interface
Size........................19" x 1.75" x 10.5" Humidity ......................95%, Non-condensing Weight ............................6 lbs Power Input Voltage............21 to 63 Vdc, either polarity referenced to ground Power Consumption ......................16 watts Connector ....................2 pin terminal block (DC) Fuse ......................1 amp, 250 Volt slo-blow TRACER 4103/4203 User Manual... -
Page 43: Section 6 Warranty, Ordering And Return
ECTION WARRANTY ADTRAN will replace or repair this product within five years from the date of shipment if it does not meet its published specifications or fails due to defects in materials and workmanship. For detailed warranty, repair, and return information, refer to the ADTRAN Equipment Warranty, Re- pair, and Return Policy and Procedure located on the ADTRAN web site at http://www.adtran.com. - Page 44 61280242T1R1A-1A Section 6 Warranty, Ordering and Return TRACER 4103/4203 User Manual...
-
Page 45: Acronyms Used In This Manual
ESF.................Extended superframe FCC ................Federal Communications Commission FEC ................Forward error correction IF ..................Intermediate Frequency ISM ................Industrial, Scientific, and Medical LBK................Loopback QPSK ................Quadrature Phase Shift Keying RF...................Radio frequency RSSI ................Received signal strength indicator Rx ...................Receive SF ...................Superframe Tx ...................Transmit TRACER 4103/4203 User Manual... - Page 46 61280242T1R1A-1A Glossary TRACER 4103/4203 User Manual...
-
Page 47: Personal Computer Connection (Db9)
(DCE) Number Name Number Name 2 ....TXD 3 ....3 ....RXD 2 ....4 ....RTS 5 ....5 ....CTS 4 ....6 ....DSR 20 ....7 ....Ground 7 ....Ground TRACER 4103/4203 User Manual... - Page 48 61280242T1R1A-1A Appendix A Cable Connections TRACER 4103/4203 User Manual...
