Perform the steps below in the order listed.
Remove all connected mounting brackets before attempting to remove the unit cover.
1. Remove the screws from the chassis cover using a Phillips-head screwdriver (see Figure 1).
2. Remove the nuts on either side of the RS-232 connector (on the rear panel of the unit) using the 3/16"
nut driver (see Figure 2).
3. Carefully slide the cover toward the back of the unit until the front edge of the cover is disconnected
from the front of the unit. Lift the cover off and set aside.
2

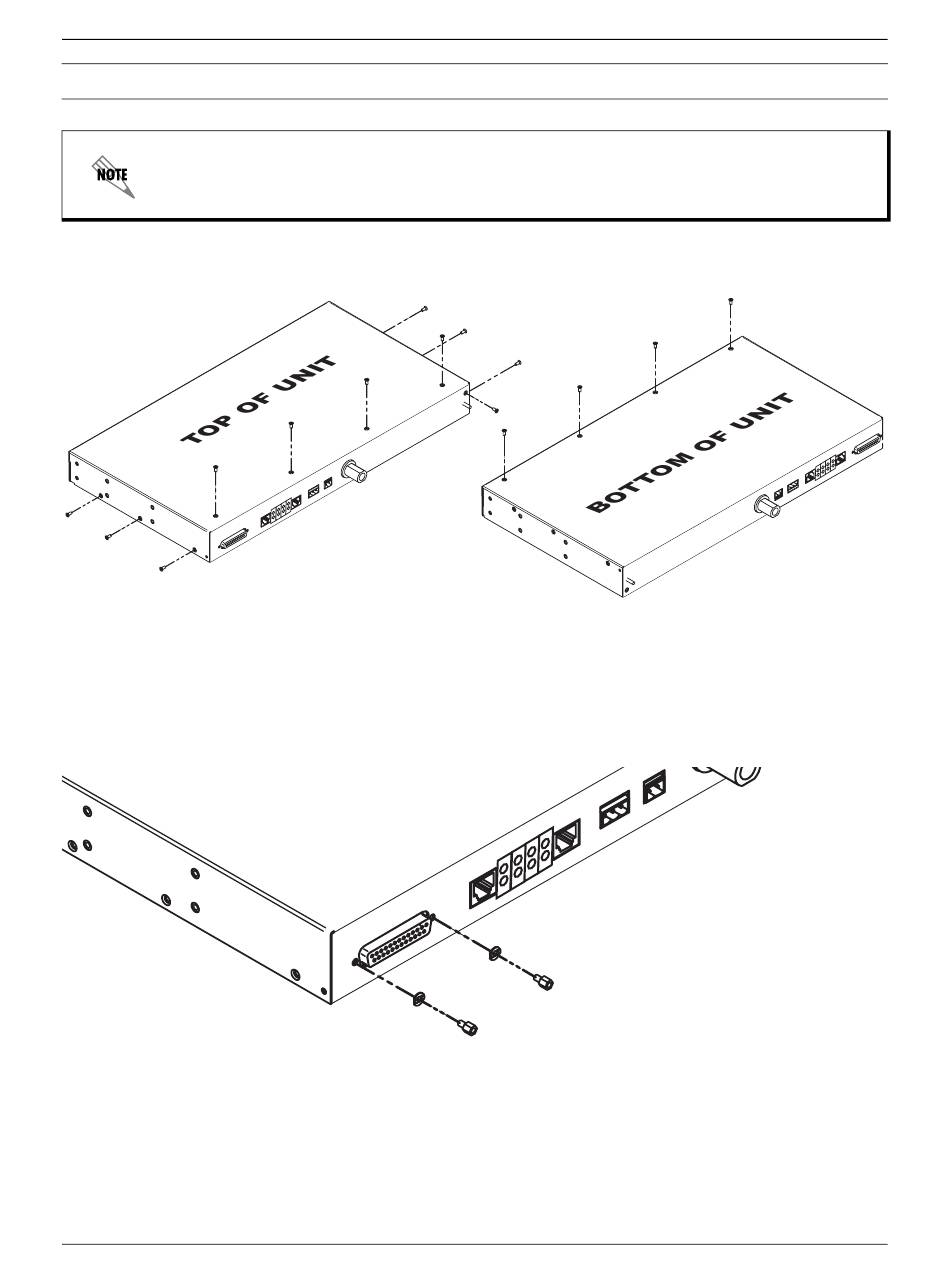

Figure 1. Removing the Cover Screws (TRACER 4x03)
Figure 2. Removing the RS-232 Nuts
