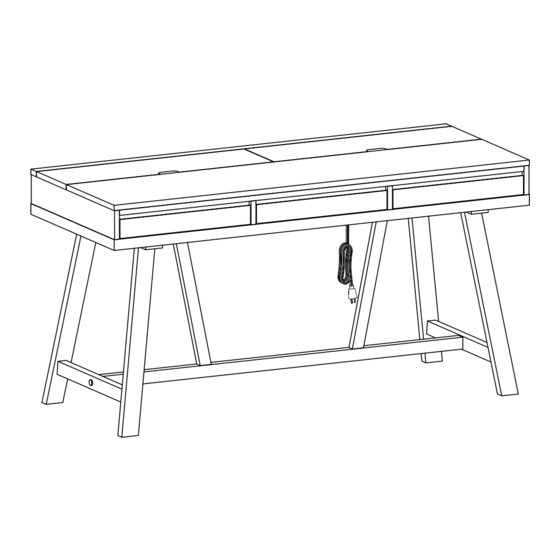

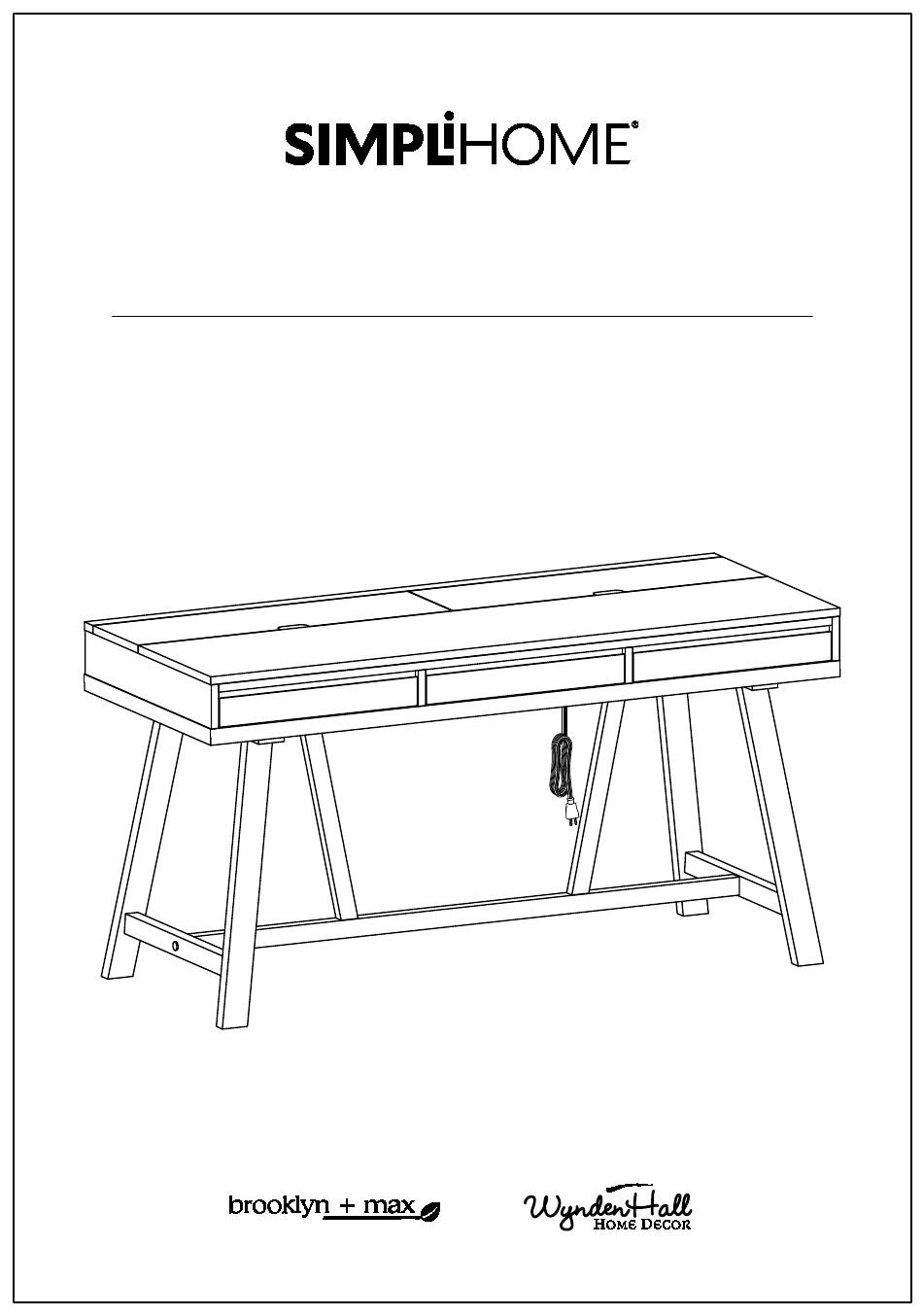

- Page 1 Bowman / Atkins / Simonds Flip Up Desk Model # AXCBOW-12-GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCBOW-12-GR Part Description LEG ( L&R Same ) QTY 1 QTY 2 LEG CONNECTOR SUPPORT BAR ( L&R Same ) QTY 2 QTY 1... - Page 8 Pre-Assembly Information Model # AXCBOW-12-GR Hardware Description ALLEN KEY BOLT: M8 X 30 mm - QTY 14 ALLEN KEY SCREW WASHER: Ø19/Ø12 X 1 mm - QTY 14 M7 X 60 mm QTY 4 QTY 14 SETS ALLEN KEY SCREW M6 X 50 mm ALLEN KEY QTY 4...
- Page 9 Components - Key Diagram Model # AXCBOW-12-GR...
- Page 10 Assembly Model # AXCBOW-12-GR Step 1 1. Attach Legs B to Top A using fourteen sets Allen Key Bolts and Washers 1 ( seven sets Bolts and Washers for each Leg ). 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 11 Assembly Model # AXCBOW-12-GR Step 2 1. Attach Support Bars C to Top A using Allen Key Screws 3 . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCBOW-12-GR Step 3 1. Align and insert wood dowels on Support Bars C into guide holes of Leg Connector D using Allen Key Screws 2 connect Leg Connector D to Support Bars C . 2. Align Leg Connector D to Legs B using Allen Key Screws 2 connect Leg Connector D to Legs B .
- Page 13 Assembly Model # AXCBOW-12-GR Step 4 1. Insert Bolt Caps 5 into exposed bolt holes on Legs B . 2. Use rubber mallet to tap Bolt Caps 5 into drilled holes securely.
- Page 14 Assembly Model # AXCBOW-12-GR Step 5 1. Open the small flap on the Top. 2. Insert the Power Center 7 into the small flap on Top A . 3. Use two Phillips Screws 6 to secure the Power Center 7 to Top A . 4.
