Rockford Fosgate PUNCH PMX-1 Installation & Operation Manual

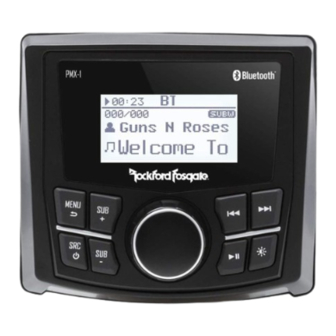

Digital media receiver
Hide thumbs
Also See for PUNCH PMX-1:
- Operation manual (12 pages) ,
- Installation & operation manual (31 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Rockford Fosgate PUNCH PMX-1
Summary of Contents for Rockford Fosgate PUNCH PMX-1
-
Page 2: Specifications
CEA 2006 Power ratings on Rockford Fosgate source units conform to CEA-2006 industry standards. These guidelines Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission. Pandora is only available in certain countries. -
Page 3: Design Features
Design Features Wiring Diagram Rotary Encoder REV / FWD button This knob is for adjusting main volume, zone volumes, Use this button to skip back and forward menu navigation and setting adjustments. through channels or tracks with a short press. Long pressing will activate manual seek mode. -
Page 4: Installation / Mounting
Installation / Mounting Settings Contents Mounting (Using Mounting Plate) AUX INPUT • Source Unit • Screws To mount the unit, you will need to find a flat surface with adequate clearance RENAME – To rename AUX, short press the encoder button to set the first letter behind it that provides enough clearance for the unit and all it’s necessary wiring. -
Page 5: Operation
Settings Operation ADJUSTING THE SUBWOOFER OUTPUT AUTO STORE ADD PRESETS Press the SUB + or SUB- buttons to adjust the output level (0-20). Short press the encoder button to access the AUTO STORE function. You will Short press the encoder button on the ADD PRESETS option. You will need to need to be under the PRESET group you want to adjust first (FM1>FM2>FM3). -
Page 6: Troubleshooting
Operation Troubleshooting Symptom Diagnosis Remedy Basic Blown fuse Check fuse of the unit, replace with correct rating. If connected following the instructions, the unit will not Vehicle’s ignition is off operate with ignition off. Source unit does not turn on. Check battery, connections and fuses and repair or replace Voltage applied to Red wire is not between 10.5 &... -
Page 7: Warranty
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
