User Manual
8-Port Fast Ethernet PoE+ Switch
with 2 100Mbps Rj45 Uplink
(PoE Power Display Function)
ST-F0802PE

Packing list

PoE+ Switch
User Manual
Power Cable
R

Product description

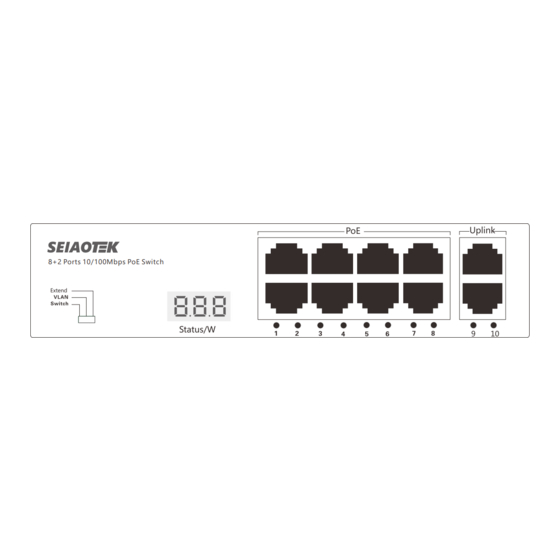

1-8: 10/100M PoE+ Ports
8+2 Ports 10/100Mbps PoE Switch
DIP Button
PoE Power Display
lndicator light
Status
ON
Port is connected
Flashing
Link/Act
Port is transmitting data
OFF
The port is not connected, or the connection is abnormal
ON
The power supply of the switch is normal
PoE Power
Display
OFF
The switch is not powered on, or the power supply is abnormal
lnterface/
Button
PoE Ports
1-8: 10/100M PoE+ ports. Support Auto MDI/MDIX function
Uplink Ports
9-10: 100M Rj45 ports
Switch
Default Mode, switch all ports can communicate with each other.
Enable Vlan, and the access ports isolated from each other and
VLAN
only can communicate with uplink port.
DIP Button
Switch to Extend, Port 1~8 rate down to 10M, the maximum
Extend
transmission distance reach upto 250m.
9-10: 100M Rj45 Ports
Link,Act
Description
Description
