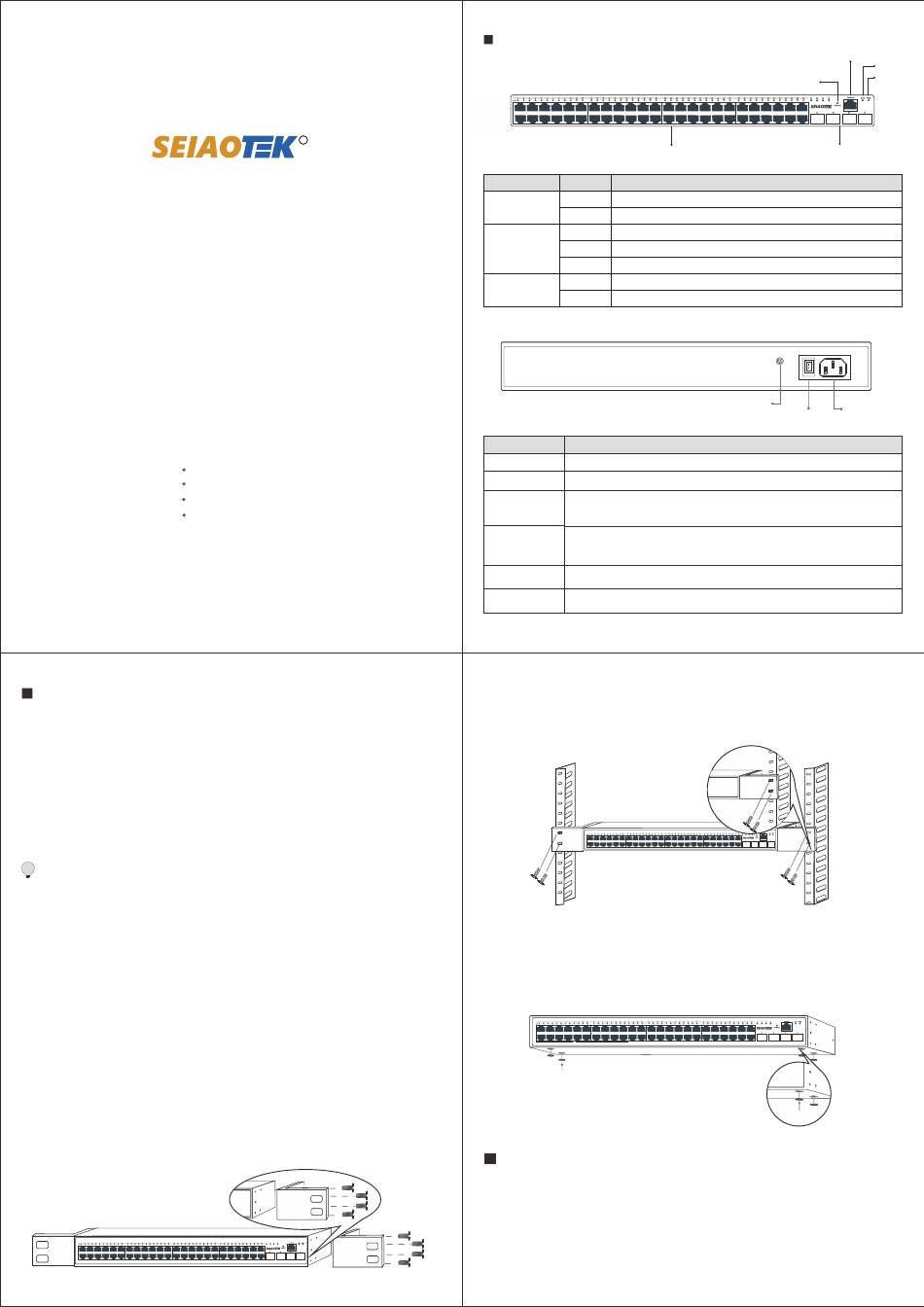

SEIAOTEK ST-M4804TX User Manual

User Manual
52 Ports Gigabit Managed Layer 3
Ethernet Switch with 10G SFP+ Slots
ST-M4804TX

Packing List

Ethernet Switch
User Manual
Power Cable
Bracket kits

Device Installation

Installation Precautions

To avoid damage to the switch or personal injury caused by improper use, please follow up
the below precautions:
1. During the installation procedure, wear an anti-static wristband, keep the switch powered off.
Ensure that the input voltage under the input voltage range.
2. Ensure that the heat dissipation holes of the switch are well ventilated.
3. Do not disassemble the switch.
4. Do not supply power to the switch before cleaning it. Do not use any liquid to scrub the switch.
5. Keep the switch far away from power lines, lights, and power grids.
Note
A tamper-evident seal is sealed on a mounting screw of the switch chassis. When the
agent maintains the switch, the maintenance switch is required The seal remains intact.
If the user needs to open the switch case, please obtain the permission of the local agent.
Otherwise, due to all consequences caused by opening the cabinet will be borne by the
user himself.

Prepare the installation tools

1. Static bracelet
2. Screw driver
3. Optional: flat-blade screw driver, needle-nose pliers, diagonal pliers

Install the switch into a 19-inch standard cabinet

Step 1: Check the grounding and stability of the rack-mountable.
Step 2: Use the screws to fix the two L-shaped brackets on both sides of the switch.
R

Product description

48 Ports 10/100/1000M RJ45
Indicator light
Status
Switch power supply is normal
ON
PWR
The switch is not powered on or the power supply is abnormal
OFF
ON
Port is connected
Link/Act
Flashing Port is transmitting data
OFF The port is not connected, or the connection is abnormal
The switch is working normal
Flashing
SYS
The switch is not power / switch working abnormal
OFF / ON
Interface/button
Ethernet ports 1-48: Gigabit Rj45 ports, Support Auto-MDI/MDIX function.
SFP Slots 1X-4X: 10G SFP+ Slots.
Console port: Connect the Serial Cable to the Serial port of the computer
Console
to manage and configure the switch.
Restart or reset buttons: Press and hold this button around 10 seconds,
Default
the switch will recovery to factory settings.
Connect the protective ground wire to prevent lightning strikes.
Ground terminal
Power connector
Connect the power cable with the switch.
Step 3: Place the switch in a proper position in the rack, and fix the L-shaped brackets on the
guide grooves at both ends of the rack with screws (if users required) to ensure that the
switch is installed on the rack smoothly
Install the switch to the desktop
After sticking the foot pads on the four corners of the bottom surface of the switch, please place
and keep the switch face up on the stable desktop.
Foot pad

Hardware connection

Connect 10G SFP+ Slots

Step 1: Grab the handle end of the optic fiber module, confirm that the handle of the optic fiber module
facing upwards, and then insert the optical module into the 1X~4X SFP+ port of the switch.
Step 2: After confirming the Rx and Tx ports on the optic fiber module, insert the two fiber connectors at
one end of the fiber into the Rx and Tx ports of the optical module respectively, and then plug the
two fiber connectors at the other end of the fiber into the opposite device. Tx and Rx ports.
Console
Default
4*10G SFP+
Description
Ground terminal
Power
connector
Power switch
Description
Foot pad
SYS
PWR
