SEIAOTEK ST-M1602PS User Manual

User Manual
16-Port Gigabit Managed Layer 2
PoE+ Switch with 2 SFP slots
ST-M1602PS
Packing List
PoE+ Switch
User Manual
Power Cable
Bracket kits
Device Installation
Installation Precautions
To avoid damage to the switch or personal injury caused by improper use, please follow up
the below precautions:
1. During the installation procedure, wear an anti-static wristband, keep the switch powered off.
Ensure that the input voltage under the input voltage range.
2. Ensure that the heat dissipation holes of the switch are well ventilated.
3. Do not disassemble the switch.
4. Do not supply power to the switch before cleaning it. Do not use any liquid to scrub the switch.
5. Keep the switch far away from power lines, lights, and power grids.
Note
A tamper-evident seal is sealed on a mounting screw of the switch chassis. When the
agent maintains the switch, the maintenance switch is required The seal remains intact.
If the user needs to open the switch case, please obtain the permission of the local agent.
Otherwise, due to all consequences caused by opening the cabinet will be borne by the
user himself.
Prepare the installation tools
1. Static bracelet
2. Screw driver
3. Optional: flat-blade screw driver, needle-nose pliers, diagonal pliers

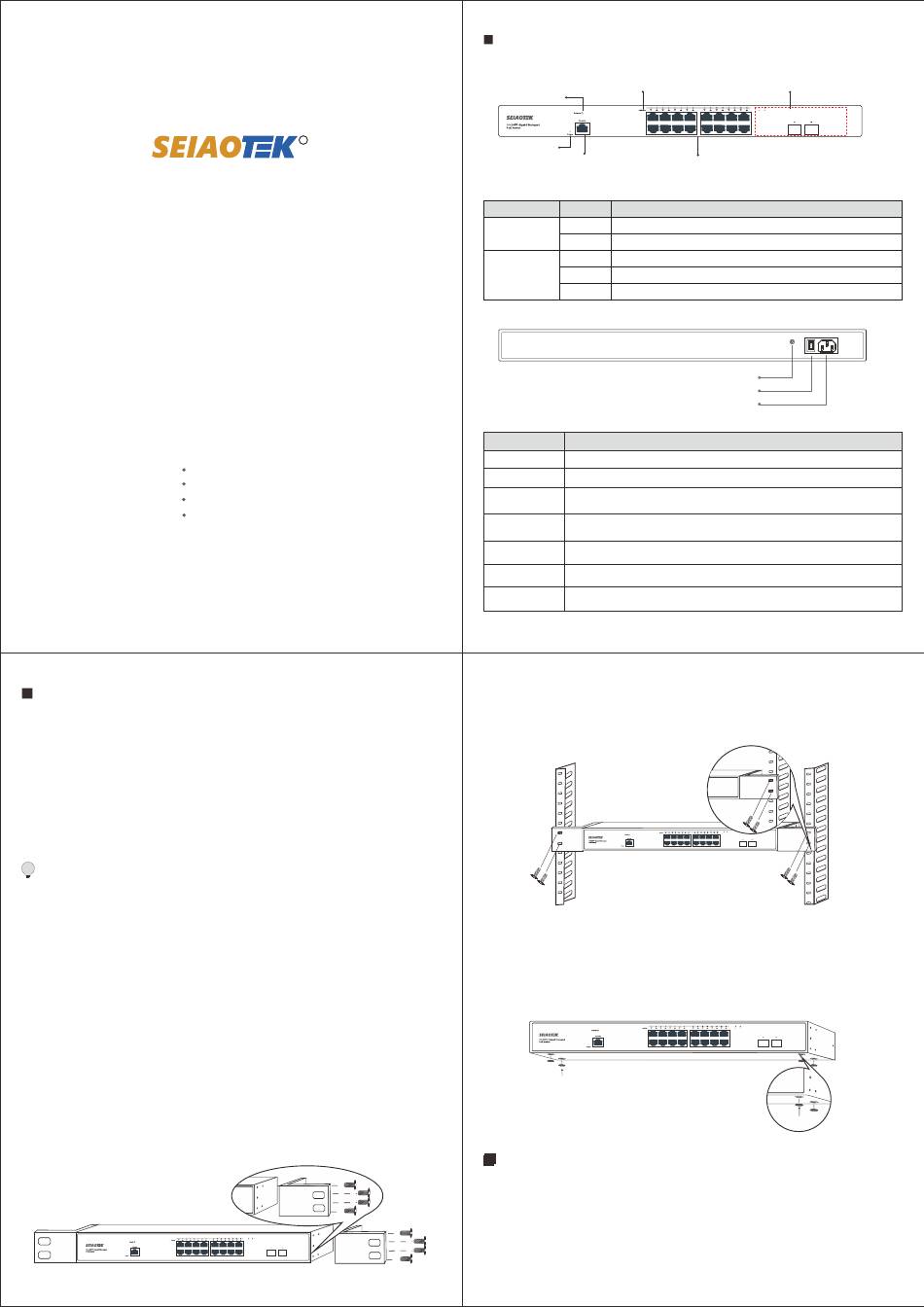

Install the switch into a 19-inch standard cabinet
Step 1: Check the grounding and stability of the rack-mountable.
Step 2: Use the screws to fix the two L-shaped brackets on both sides of the switch.
R
Product description
Link/Act
Default
PWR
Console
1~16: 10/100/1000M PoE+ Ports
Indicator light
Status
Switch power supply is normal
ON
PWR
The switch is not powered on or the power supply is abnormal
OFF
ON Port is connected
Link/Act
Flashing Port is transmitting data
The port is not connected, or the connection is abnormal
OFF
Interface/button
PoE ports
1-16: 10/100/1000M PoE+ ports, Support Auto-MDI/MDIX function.
17-18: Gigabit SFP Slots.
SFP Slots
Console port: Connect the Serial Cable to the Serial port of the computer
Console
to manage and configure the switch.
Restart or reset buttons: Press and hold this button around 10 seconds,
Default
the switch will recovery to factory settings.
Ground terminal Connect the protective ground wire to prevent lightning strikes.
Switch on/off.
Power Switch
Power connector
Connect the power cable with the switch.
Step 3: Place the switch in a proper position in the rack, and fix the L-shaped brackets on the
guide grooves at both ends of the rack with screws (if users required) to ensure that the
switch is installed on the rack smoothly
Install the switch to the desktop
After sticking the foot pads on the four corners of the bottom surface of the switch, please place
and keep the switch face up on the stable desktop.
Foot pad
Hardware connection
Connect SFP Slots
Step 1: Grab the handle end of the optic fiber module, confirm that the handle of the optic fiber module
facing upwards, and then insert the optical module into the 17~18 SFP Slots of the switch.
Step 2: After confirming the Rx and Tx ports on the optic fiber module, insert the two fiber connectors at
one end of the fiber into the Rx and Tx ports of the optical module respectively, and then plug the
two fiber connectors at the other end of the fiber into the opposite device. Tx and Rx ports.
17~18: Gigabit SFP Slots
Description
Ground terminal
Power switch
Power connector
Description
Foot pad
