User Manual
16 Ports Gigabit Ethernet Switch
ST-G16T
Packing List
•
Ethernet Switch
•
User Manual
•
Power Cable
R
R

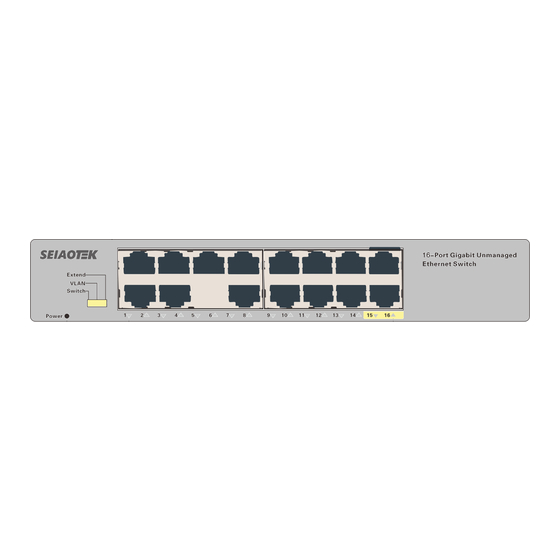

Product description
DIP Button
Power Indicator
10/100/1000M Rj45 Ports
Power connector
Port
Status
ON
Port is connected
Flashing
1~16
Port is transmitting data
The port is not connected, or the connection is abnormal
OFF
ON
Normal
Power
OFF
Abnormal
Default Mode, switch all ports can communicate with each other
Switch
Enable Vlan, and the access ports isolated from each other
VLAN
DIP Button
and only can communicate with uplink port.
Switch to Extend, Port 1~14 rate down to 10M, the maximum
Extend
transmission distance reach upto 250m.
Ground terminal
Description
Advertisement
Related Manuals for SEIAOTEK ST-G16T
Summary of Contents for SEIAOTEK ST-G16T
- Page 1 Product description DIP Button Power Indicator 10/100/1000M Rj45 Ports User Manual 16 Ports Gigabit Ethernet Switch ST-G16T Ground terminal Power connector Packing List • Ethernet Switch Port Status Description • User Manual Port is connected • Power Cable Flashing 1~16...
- Page 2 To install the switch, please follow the steps: Name 16 Ports Gigabit Ethernet Switch (1) This switch only used indoor please place it in ventilated and dry space. ST-G16T Model (2) Please avoid placing the switch on an unsteady desk. lnterface...
