Test Port Notifications

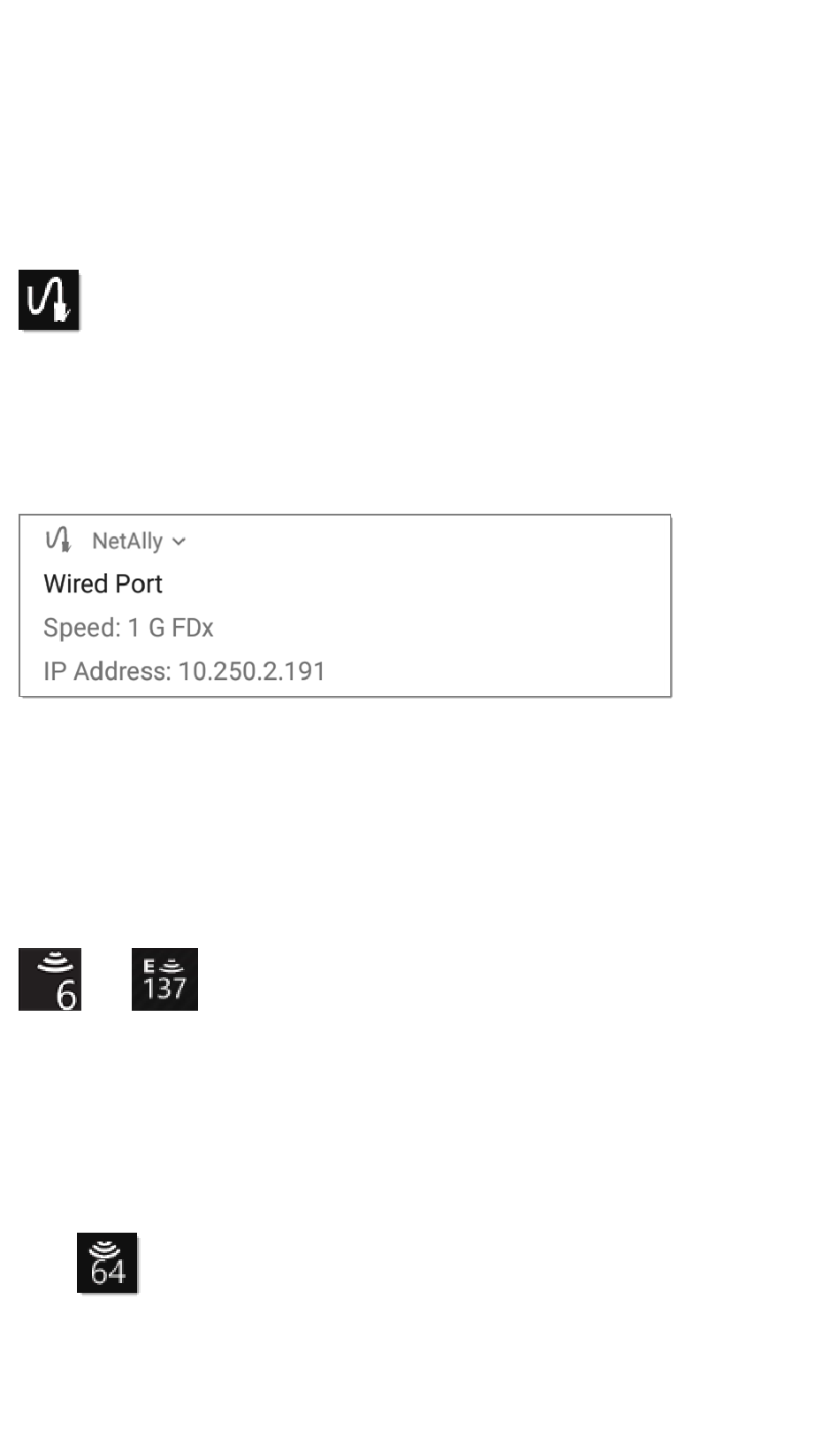

Active network connections on the test ports are
established using the
A Wired Test Port connection, called the
"Wired Port" in app settings, is established in
either the top RJ-45 Ethernet
Fiber port.
NOTE: If both the fiber and top copper ports
are connected to an active network, the
Product uses the fiber link as the "Wired
Port" for testing.
or
with the wireless channel number under a Wi-Fi
or Link icon. Channels in the 6 GHz band (EXG-
300/300E only) display with an E by the Wi-Fi or
Link icon.
When the Product unit is dwelling on a
Wi-Fi channel (in this case channel 64), the
The Wi-Fi Test Port status displays
General Settings and Tools
AutoTest app.
port
91
or the top
