Manual
Inverter Welder
Applies for:
Code
Model
16053
SOIN-130/200
SOIN-130/200
CAUTION
Read this manual thoroughly
before using the tool.
40%
Work Cycle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOIN-130/200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Truper SOIN-130/200

  • Page 1 Manual Inverter Welder Work Cycle Applies for: Code Model 16053 SOIN-130/200 SOIN-130/200 Read this manual thoroughly CAUTION before using the tool.
  • Page 2: Table Of Contents

    LED light ALARM on. Let the welder cool for 15 minutes and turn it back on. SOIN-130/200 It is recommended to use a 12 AWG extension cord and connect it to an INDEPENDENT CHARGING CENTER.
  • Page 3: Technical Specifications

    Technical specifications SOIN-130/200 Code 16053 Description Inverter Welder Input Power 127 V 220 V Bi-Voltage automatic adaptation system Frequency 50 Hz / 60 Hz Current 39.5 A 45 A No. of Phases 1 phase 2 phase Output Input Rated Capacity 5.0 kVA...
  • Page 4: General Power Tools Safety Warnings

    General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 5: Safety Warnings For Inverter Welders

    Safety Warnings for Inverter Welders Protection Equipment for Welding Prevent Injuries and Accidents WARNING WARNING • Wear a welding mask to protect eyes • Risks of electric shock: and face when soldering. Assure the mask protective glass An electric shock coming from the soldering electrode may shade is adequate for the soldering process to carry out.
  • Page 6: Parts

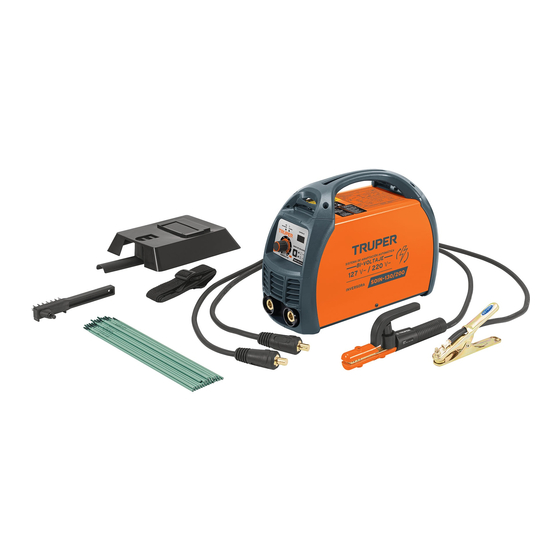

    Parts Transportation Handle Thermal Protection Light Work Piece light Grounding Clamp Current Adjustment Control Positive Connection ( + ) Welding Electrode Process Holder Selector Negative (SMAW or TIG) Connection ( - ) Switch Carrying Strap Hammer-Brush for Slag Removal Power Protective Mask Cord...
  • Page 7: Installation (Smaw)

    Installation (SMAW) Connections CAUTION To prevent electric shock, you need to see information in section “Electrical Requirements” in pages 3 and 5. • The fast connections of the electrode holder and the grounding clamp are inserted and turned, one-quarter of a turn in a clockwise direction in the front panel output to get them properly secured.
  • Page 8: Installation (Tig)

    Installation (TIG) TIG Connection • This inverter welder can also be used to TIG welding. It is a high-quality soldering with non- consumable tungsten electrodes and arc protected by inert gas like Argon or Helium. • TIG welding is ideal for welding stainless steel, iron and copper. •...
  • Page 9: Start Up

    Start Up Preparation • Only experience, practice and care can guarantee a good welding job. • The factor intervening in the welding process are many: required current, distance between the electrode and the 45° 45° work piece, soldering speed and direction, thickness and type of the material, the work piece position, electrode angle and also gauge, type of material and electrode 60°...
  • Page 10 Start Up Examples of welding Correctly Applied Welding Electrode movement too fast and / or very low current. Electrode movement too slow and / or very high current. Electrode too separated from the work piece. Spiral movement. Half-Moon movement. Bevel Zigzag Movement.
  • Page 11: Maintenance

    Maintenance • The correct use and regular cleansing extend the useful life of the welder. CAUTION • Only qualified personnel shall carry out repairs. We recommend visiting a Authorized Service Center to repair your welder, get supplies or accessories. Regular Maintenance Storage •...
  • Page 12: Troubleshooting

    Troubleshooting Problem Cause Solution The thermal protection • The welder has no adequate ventilation. • Keep the welder least 11.8” away from any walls at to light is ON. allow air circulation. • Environment temperature is too high. • The welder will recuperate once the temperature gets back to the right range to operate.
  • Page 13: Authorized Service Centers

    Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center.
  • Page 14: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
