Page 1
Manual Inverter Welder Work Cycle Applies for: Code Model 102236 SOIN-130 SOIN-130 Read the user’s manual thoroughly CAUTION before operating this tool.
Contents CAUTION Technical specifications Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tools Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Inverter Welders of fatal injuries please read and understand this Manual before Parts using the tool.
Technical specifications SOIN-130 Code 102236 Description Inverter Welder Input Power 127 V Frequency 50 Hz / 60 Hz Current 39 A No. of Phases 1 phase Output Input Rated Capacity 4.9 kVA Open Circuit Voltage 69 V cc Current Range...
General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
Safety Warnings for Inverter Welders Protection Equipment for Welding Prevent Injuries and Accidents WARNING WARNING • Wear a welding mask to protect eyes • Risks of electric shock: and face when soldering. Assure the mask protective glass An electric shock coming from the soldering electrode may shade is adequate for the soldering process to carry out.

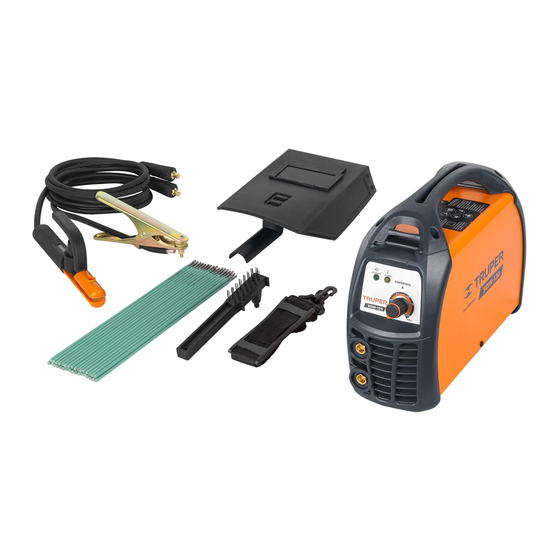

Parts Transportation Handle Work Piece Grounding Clamp Thermal Protection Light light Power Adjustment Control Positive Connection ( + ) Negative Connection ( - ) Electrode Switch Holder Power Cord Carrying Strap Ventilation Inlet Wire Protective Brush Mask To get better results use cable set with soldering clamp CAB-200 ENGLISH...
Installation Connections CAUTION To prevent electric shock please consult information in the “Electrical Requirements” section in pages 3 and 5. • The fast connections in the electrode holder and the Inverse grounding clamp are inserted and turned one quarter of a Polarity turn in a clockwise direction in the outlets found iin the front panel to be secured.
Start Up Preparation • Only experience, practice and care can guarantee a good welding job. • The factor intervening in the welding process are many: required current, distance between the electrode and the 45° 45° work piece, soldering speed and direction, thickness and type of the material, the work piece position, electrode angle and also gauge, type of material and electrode covering.
Page 9
Start Up Examples of welding Correctly Applied Welding Electrode movement too fast and / or very low current. Electrode movement too slow and / or very high current. Electrode too separated from the work piece. Spiral movement. Half-Moon movement. Bevel Zigzag Movement.
Maintenance • The correct use and regular cleansing extend the useful life of the welder. CAUTION • Only qualified personnel shall carry out repairs. We recommend visiting a Authorized Service Center to repair your welder, get supplies or accessories. Regular Maintenance Storage •...
Troubleshooting Problem Cause Solution The thermal protection • The welder has no adequate ventilation. • Keep the welder least 11.8” away from any walls at to light is ON. allow air circulation. • Environment temperature is too high. • The welder will recuperate once the temperature gets back to the right range to operate.
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS...
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
Page 15
Instructivo de Soldadora inversora Ciclo de trabajo Este instructivo es para: Código Modelo 102236 SOIN-130 SOIN-130 Lea este Instructivo por completo ATENCIÓN antes de usar la herramienta.
Page 16
ndice Í ATENCIÓN Especificaciones técnicas Requerimientos eléctricos Para poder sacar el máximo provecho de la herramienta, Advertencias generales de seguridad alargar su vida útil, hacer válida para herramientas eléctricas la garantía en caso de ser necesario y evitar riesgos o Advertencias de Seguridad para uso de lesiones graves, es fundamental soldadoras inversoras...
Especificaciones técnicas SOIN-130 Código 102236 Descripción Soldadora inversora Entrada Tensión 127 V Frecuencia 50 Hz / 60 Hz Corriente 39 A No. de fases 1 Fase Salida Capacidad nominal de entrada 4.9 kVA Tensión de circuito abierto 69 V cc...
Advertencias generales de seguridad para herramientas eléctricas ¡ADVERTENCIA! Lea detenidamente todas las advertencias de seguridad y todas las instrucciones que se enlistan a continuación. La omisión de alguna de ellas puede dar como resultado un choque eléctrico, incendio y/o daño serio. Conserve las advertencias y las instrucciones para futuras referencias. Área de trabajo No sobrepase su campo de acción.
Page 19
Advertencias de Seguridad para uso de soldadoras inversoras • No respire los humos y gases del proceso ADVERTENCIA Equipo de protección para soldadura de soldadura, mantenga la cabeza alejada de las emanaciones. PELIGRO ADVERTENCIA • Use careta para soldar para •...
Partes Mango de transporte Pinza para aterrizar la pieza de trabajo Luz de protección térmica Luz de encendido Control de ajuste de corriente Conexión positiva ( + ) Conexión negativa ( - ) Porta Interruptor electrodo Cable de alimentación Correa de transporte Entrada de ventilación...
Instalación Conexiones ATENCIÓN Para evitar descargas eléctricas es necesario consultar la información de la sección “Requerimientos eléctricos” en las página 3 y 5. • Las conexiones rápidas del porta electrodo y la pinza Polaridad para aterrizar se insertan y giran un cuarto de vuelta en inversa sentido horario en las salidas del pánel frontal para quedar bien aseguradas.
Puesta en marcha Preparativos • Sólo con experiencia, práctica y cuidado se puede garantizar un buen trabajo de soldadura. • Los factores que intervienen en el proceso de soldadura son muchos: corriente requerida, distancia entre el 45° electrodo y la pieza de trabajo, velocidad y dirección de 45°...
Page 23
Puesta en marcha Ejemplos de soldadura Soldadura aplicada Movimiento muy correctamente rápido del electrodo y/o corriente muy baja. Movimiento muy lento del electrodo y/o corriente muy alta. Electrodo muy separado de la pieza de trabajo. Movimiento en espiral. Movimiento en media luna. Bisel Movimiento en zigzag.
Mantenimiento • El uso correcto y una limpieza regular prolongan la vida útil de la soldadora. ATENCIÓN • Sólo personal calificado debe hacer las reparaciones. Se recomienda visitar un Centro de Servicio Autorizado para reparar la soldadora, adquirir suministros o accesorios. Mantenimiento regular Almacenamiento •...
Solución de problemas Problema Causa Solución La luz de protección • La soldadora no cuenta con ventilación • Mantenga la soldadora apartada de cualquier pared al térmica está adecuada. menos 30 cm para permitir que el aire circule. encendida. • Temperatura ambiente muy alta. •...
En caso de tener algún problema para contactar un Centro de Servicio Autorizado consulte nuestra página www.truper.com donde obtendrá un listado actualizado, o llame al: 800 690-6990 ó 800 018-7873 donde le informarán cuál es el Centro de Servicio más cercano.
. Los gastos de transportación que resulten para su cumplimiento serán cubiertos por Para dudas o comentarios, llame al 800-690-6990. Hecho en China. Importado por Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Sello del establecimiento comercial.
