Product Manual
IAMA
Isolated universal converter
Model No. IA M A0 0 01
D rawing No. L P1101
Ver sion No. 102
Revision Date 19/0 6
ZONE 2
Zone 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAMA0001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for red lion IAMA0001

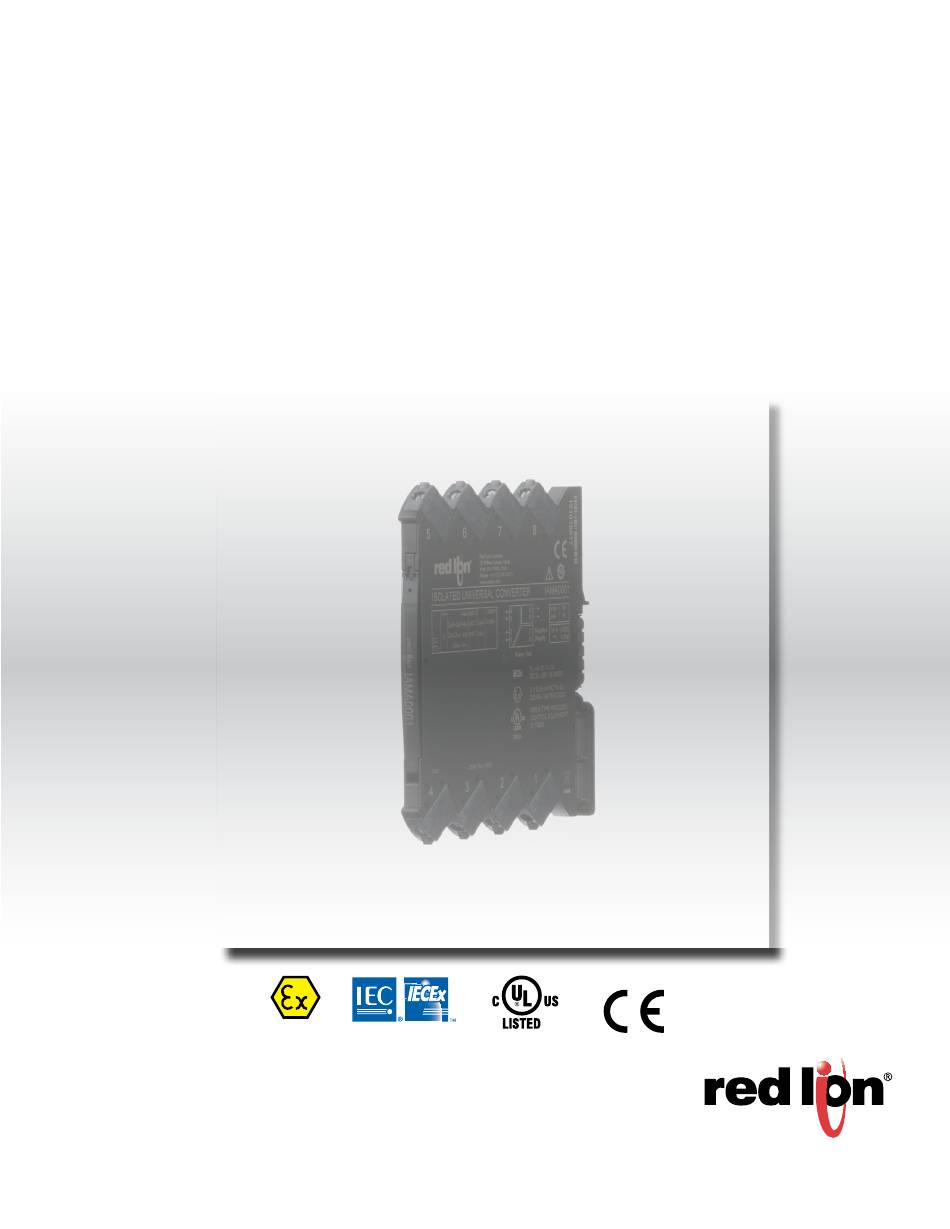

  • Page 1 Product Manual IAMA Isolated universal converter ZONE 2 Zone 2 Model No. IA M A0 0 01 D rawing No. L P1101 Ver sion No. 102 Revision Date 19/0 6...
  • Page 3: Table Of Contents

    Isolated universal converter IAMA Table of contents Warning ....................Symbol identification .
  • Page 4: Warning

    GENERAL connect hazardous voltages to the device. To avoid explosion and serious injury: Modules having mechanical failures must be returned to Red Lion Controls for repair or replacement. Repair of the device must be done by Red Lion Controls only.
  • Page 5 Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, Red Lion Controls www.redlion.net Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.
  • Page 6 When disconnected, the device may be cleaned with a cloth moistened with distilled water. Liability To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against Red Lion Controls that would otherwise exist according to the concluded sales agreement.
  • Page 7: Mounting And Demounting Of The Device

    Mounting and demounting of the device Picture 1: Mounting on DIN rail. Click the device onto the rail. Picture 2: Demounting from DIN rail. First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. Picture 3: Wire size AWG 26-12 / 0.13 x 2.5 mm stranded wire.
  • Page 8: Installation On Din Rail

    Installation on DIN rail The IAMA can be installed on a DIN rail. Marking The front cover of the IAMA has been designed with an area for affixation of a click-on marker. The area assigned to the marker measures 5 x 7.5 mm. Markers from Weidmüller’s MultiCard System, type MF 5/7.5, are suitable.
  • Page 9: Side Label

    Side label Terminal numbers Type no. connections Approvals LP1101...
  • Page 10: Advanced Features

    A green front LED indicates normal operation and malfunction. • Continuous check of vital stored data for safety reasons. • 3-port 2.5 kVAC galvanic isolation. Product overview Part no. IAMA0001 Product name Isolated universal converter Universal DC / DC and temperature Description converter with loop supply output Parameterisation...
  • Page 11: Pgm Display / Programmer Front

    PGM display / programmer front Functionality The simple and easily understandable menu structure and the explanatory help texts guide you effortlessly and automatically through the configuration steps, thus making the product very easy to use. Functions and configuration options are described in the section ”Configuration / operating the function keys”. Application •...
  • Page 12: Technical Data

    Technical data Environmental conditions: Operating temperature ....... . -25°C to +70°C Storage temperature .
  • Page 13 Accuracy, the greater of the general and basic values: General values Input type Absolute accuracy Temperature coefficient ≤ ±0.1% of span ≤ ±0.01% of span / °C Basic values Input type Basic accuracy Temperature coefficient ≤ ±16 µA ≤ ±1.6 µA / °C ≤...
  • Page 14 TC input: Type Min. value Max. value Standard 0°C +1820°C IEC 60584-1 -100°C +1000°C IEC 60584-1 -100°C +1200°C IEC 60584-1 -180°C +1372°C IEC 60584-1 -200°C +900°C DIN 43710 -180°C +1300°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -200°C +400°C IEC 60584-1...
  • Page 15 Observed authority requirements: EMC..........2014/30/EU LVD .
  • Page 16: Signal Outside Range

    Display readout on the PGM of sensor error detection and input signal outside range Sensor error check: Device: Configuration Sensor error detection: OUT.ERR=NONE. IAMA Else: Outside range readout (IN.LO, IN.HI): If the valid range of the A/D converter or the polynomal is exceeded Input Range Readout...
  • Page 17: Error Indications

    Error indications Readout at hardware error Error search Readout Cause Defect internal CJC sensor or CJC temperature out CJC sensor error - check device temperature CJ.ER of allowed range** Flash memory error - default configuration is FL.ER Error in FLASH (configuration)* loaded No communication NO.CO...
  • Page 18: Connections

    Connections Input Output Supply Input signals Supply Active Current Sensor Supply + Supply - Potentiometer Voltage Passive Current Sensor Output signals Current Voltage LP1101...
  • Page 19: Led Indication

    LED indication The device is equipped with a green power LED in the front to indicate the operation status, see the table below. Output and Condition Action required loop supply Connect supply / No supply / device error or De-energized code-flash CRC error replace device 1 Flash...
  • Page 20: Default Configuration

    Default configuration Input Input type ........Temperature Voltage input .
  • Page 21: Configuration / Operating The Function Keys

    Configuration / operating the function keys Documentation for routing diagram. In general When configuring the IAMA, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. Configuration is carried out by using the 3 function keys: 1 will increase the numerical value or choose the next parameter 2 will decrease the numerical value or choose the previous parameter...
  • Page 22 Language: In the menu ”lang.setup” you can choose between 7 different language versions of help texts that will appear in the menu. You can choose between UK, DE, FR, IT, ES, SE and DK. Selection of units After choosing the input signal type you can choose the process units which will be displayed in text line 2 (see table). By selection of temperature input the process value is always displayed in Celsius or Fahrenheit.
  • Page 23 Hold 1 and 2: Toggle Line 3 function between A.Out / TAG. Power up (Setting is volatile - use DISP setup menu to change and store Line 3 function.) 40.00 2-10 VOLT 0-10 CURR 1111 10.4 LIN.R 111.1 69 units 0000 POTM 0.2-1...
  • Page 24: Routing Diagram

    Routing diagram If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving.
  • Page 25: Routing Diagram, Advanced Settings (Adv.set)

    Routing diagram, advanced settings (ADV.SET) MEM, DISP, SAVE CAL, SIM, LOAD PASS, LANG SAVE SETUP MEMORY Txt 26 Txt 27 A.OUT DISP A.OUT SETUP CONTRA LINE 3 LIGHT TAGNO_ Txt 26 Txt 28 Txt 31 Txt 29 Txt 30 850.0 850.0 -200.0 -200.0...
  • Page 26: Help Text Overview

    Help text overview [01] Set correct password [18] Select current as analog output type [02] Enter advanced setup menu? Select voltage as analog output type [03] Select temperature input [19] Select 0-20 mA output range Select potentiometer input Select 4-20 mA output range Select linear resistance input Select 20-0 mA output range Select current input...
  • Page 27: Ordering Information

    Ordering information DESCRIPTION PART NUMBER Universal Signal Conditioner IAMA0001 Programming Module Kit PGMMOD02 LP1101...
  • Page 28 LP1101...
