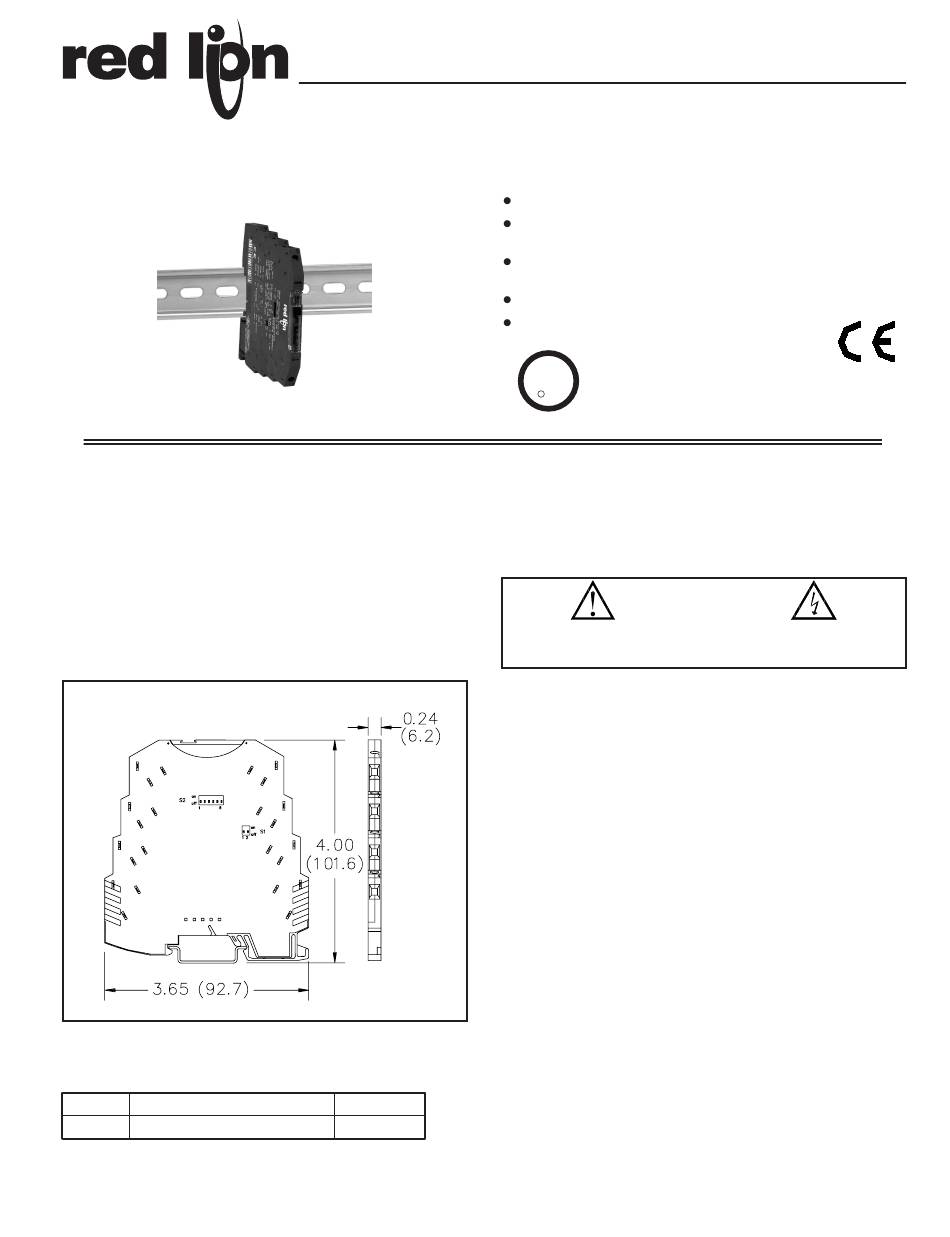

MODEL IAMA - CONFIGURABLE 3-WAY ISOLATING AMPLIFIER

GENERAL DESCRIPTION

The IAMA can isolate and convert over 35 combinations of analog signal
ranges. The IAMA converts and transmits signals linearly proportional to the
input. DIP switch range selection eliminates the need to order and stock
different modules for each input and output signal range, and allows quick and
convenient setup for over 35 standard signal conversions. In addition to the
conversion capabilities, the IAMA modules feature optically isolated
Input/Output signal circuits and isolated Power to Input, Power to Output
circuits. The modules' overall full scale accuracy typically exceed 0.04%. DIN
rail mounting saves time and panel space. The units are equipped with universal
mounting feet for attachment to standard top hat profile rail according to
EN50022 - 35x7.5.
DIMENSIONS In inches (mm)

ORDERING INFORMATION

MODEL NO.
DESCRIPTION
IAMA
Configurable 3-Way Isolating Amplifier
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
3-WAY ISOLATION OF ANALOG SIGNALS
UNIVERSAL CONVERSION MODULE - INPUTS AND OUTPUTS
SELECTED VIA DIP SWITCH SETTINGS
OVER 35 INPUT AND OUTPUT ANALOG CONVERSION
COMBINATIONS
ULTRA SLIM DESIGN – ONLY 0.244" WIDE
19 to 30 VDC POWER
C
LISTED

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

SPECIFICATIONS

1. POWER: 19.2 to 30 V DC, 450 mW max.
2. INPUT / OUTPUT RANGES: See table 1
3. SPAN ADJUSTMENT: Potentiometer, located below transparent top cover.
4. MAX INPUT SIGNAL:
Current: 50 mA
Voltage: 30 V
5. INPUT RESISTANCE:
Current: Approx. 50 Ω
Voltage: Approx. 100 kΩ
6. MAX OUTPUT SIGNAL:
Current: 28 mA/12.5 V
Voltage: 12.5 V/22 mA
7. LOAD RESISTANCE:
Current: 500 Ω max.
Voltage: 10 kΩ min
8. OUTPUT COMPLIANCE:
Current: 12.5 V max (500 Ω). Ripple: < 20 mV
Voltage: 22 mA (10 kΩ). Ripple: < 20 mV
9. TRANSMISSION ERROR:
The transmission error without adjustment is < 0.4%. Using the
10. TEMPERATURE COEFFICIENT:
Max.: < 0.01%/K
Typ.: < 0.002%/K
11. CUT-OFF FREQUENCY: 100 Hz
12. STEP RESPONSE (FROM 10 to 90 %): 3.5 msec
PART NUMBER
13. TEST VOLTAGE (Input/Output/Supply): 1.5 kV, 50 Hz, 1 min.
14. ENVIRONMENTAL CONDITIONS:
IAMA0006
Operating Temperature Range: -20°C to 65°C (-4°F to 149°F)
Storage Temperature Range: -40°C to +85°C (-40°F to 185°F)
1
U L
PROCESS CONTROL
EQUIPMENT FOR HAZARDOUS
US
LOCATIONS 31ZN
4
CLASS 1, DIV 2
GROUPS A, B, C, D T5
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
potentiometer, the error can be adjusted to < 0.1%.
Bulletin No. IAMA6-X
Drawing No. LP0609
Released 06/05
CAUTION: Risk of electric shock.
