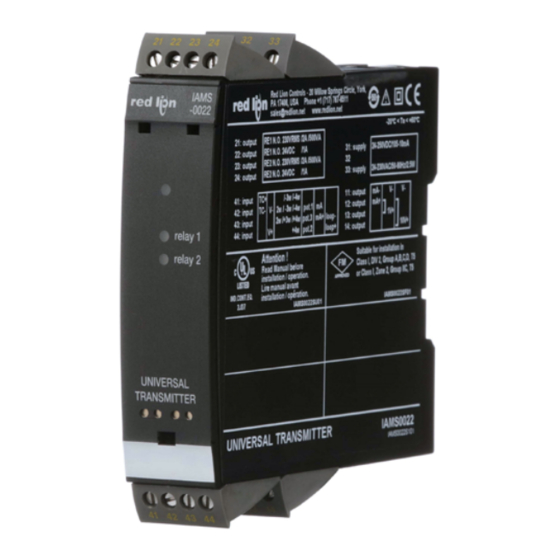

I A M S
M o d e l s N o . 0 0 0 2
0 0 2 2 / 0 0 2 0
D r a w i n g N o . L P 1 1 0 9
V e r s i o n N o . 1 0 4
R e v i s i o n D a t e 1 9 / 0 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAMS0002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for red lion IAMS0002

  • Page 1 I A M S M o d e l s N o . 0 0 0 2 0 0 2 2 / 0 0 2 0 D r a w i n g N o . L P 1 1 0 9 V e r s i o n N o .
  • Page 3: Table Of Contents

    IAMS 0002 / 0022 / 0020 CONTENTS Warning ....................... Symbol identification ................Safety instructions ................. How to dismantle the IAMS 0002 / 0022 / 0020 ....When front LED lights red / display shows AO.ER ....Advanced features ................. Application ....................Technical characteristics ..............
  • Page 4: Warning

    VOLTAGE General mounting, connection and disconnection of wires. Troubleshooting the device. Repair of the device must be done by Red Lion Controls only. WARNING To keep the safety distances, the relay contacts on the devices must not be connected to both hazardous and non-hazard ous volt ages at the same time.
  • Page 5: Symbol Identification

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, Red Lion Controls www.redlion.net LP1109...
  • Page 6 When disconnected, the device may be cleaned with a cloth moistened with distilled water. LIABILITY To the extent that the instructions in this manual are not strictly observed, the custom er cannot advance a demand against Red Lion Controls that would otherwise exist according to the concluded sales agreement. LP1109...
  • Page 7: How To Dismantle The Iams 0002 / 0022 / 0020

    When front LED lights red / display shows AO.ER IAMS0002 and IAMS0022 are designed as SIL 2 devices with a high safety level. Therefore, a continuous measurement of the outgoing current is carried out on a 4...20 mA and 20...4 mA output signal.
  • Page 8: Advanced Features

    • Process control with standard analogue output. • Galvanic separation of analogue signals and measurement of floating signals. • The IAMS0002 and IAMS0022 have been designed according to strict safety requirements and is thus suitable for application in SIL 2 installations.
  • Page 9: Technical Characteristics

    Technical characteristics • When the devices are used in combination with a programming front (PGMMOD 00/C1), all operational parameters can be modified to suit any application. As the devices are designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches. •...
  • Page 10: Pgm Display / Programmer Front

    PGM DISPLAY / PROGRAMMER FRONT Functionality The simple and easily understandable menu structure and the explanatory help texts guide you effortlessly and automatically through the configuration steps, thus making the product very easy to use. Functions and configuration options are described in the section ”Configuration / operating the function keys”.
  • Page 11: Mounting / Demounting The Pgmmod

    MOUNTING / DEMOUNTING THE PGMMOD 1: Insert the tabs of PGMMOD into the holes at the top of the device. 2: Swing PGMMOD into place. Demounting of PGMMOD 3: Push the release button on the bottom of PGMMOD and swing PGMMOD up. LP1109...
  • Page 12: Applications

    APPLICATIONS Input signals: Volt - Potentio- Current meter RTD and lin.R Connect., wires See the connection drawing on page 20. Output signals: Relays 10 V 10 V Analogue, 0/4...20 mA and voltage Supply: 21.6...253 VAC 19.2...300 VDC Polarity is reversible. LP1109...
  • Page 13: Electrical Specifications

    IAMS0022 .............. 170 g (6.0 oz) Max. wire size ............1 x 2.5 mm stranded wire Screw terminal torque ........... 0.5 Nm Vibration ..............IEC 60068-2-6 : 2007 (IAMS0002) IEC 60068-2-6 (IAMS0022/IAMS0020) 2...13.2 Hz .............. ±1 mm 13.2...100 Hz ............±0.7 g Common specifications Supply voltage, universal ........
  • Page 14 Accuracy, the greater of the general and basic values: General values Input Absolute Temperature type accuracy coefficient ≤ ±0.1% of span ≤ ±0.01% of span / °C LP1109...
  • Page 15 Basic values Input Basic Temperature type accuracy coefficient ≤ ±4 µA ≤ ±0.4 µA / °C Volt ≤ ±20 µV ≤ ±2 µV / °C Pt100 ≤ ±0.2°C ≤ ±0.01°C / °C Linear resistance ≤ ±0.1 Ω ≤ ±0.01 Ω / °C Potentiometer ≤...
  • Page 16 TC input Min. Max. Type value value Standard 0°C +1820°C IEC 60584-1 -100°C +1000°C IEC 60584-1 -100°C +1200°C IEC 60584-1 -180°C +1372°C IEC 60584-1 -200°C +900°C DIN 43710 -180°C +1300°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -200°C +400°C IEC 60584-1...
  • Page 17 Max. AC power ............500 VA Observed authority requirements Standard EMC 2004/108/EC ..........EN 61326-1 (IAMS0002) EMC 2014/30/EU ............. EN 61326-1 (IAMS 0022 / 0020) LVD 2006/95/EC ............EN 61010-1 (IAMS0002) LVD 2014/35/EU ............. EN 61010-1 (IAMS 0022 / 0020) FM ..................
  • Page 18: Visualisation In The Pgm Of Sensor Error Detection And Input Signal Outside Range

    Visualisation in the PGM of sensor error detection and input signal outside range Sensor error check: Configuration Sensor error detection: R1, ERR.ACT=NONE - R2, ERR.ACT=NONE, OUT.ERR=NONE. Else: Outside range readout (IN.LO, IN.HI): If the valid range of the A/D converter or the polynomial is exceeded Input Range Readout...
  • Page 19: Error Indications

    Error indications Readout at hardware error Error search Readout Error cause CJC sensor defect or tem- Test of internal CJC sensor CJ.ER perature outside range Checksum test of the configuration in FLASH FL.ER Error in FLASH 1) No load on the current out- Check measurement of analogue output current* AO.ER put (only S4...20/S20...4 mA)
  • Page 20: Connections

    CONNECTIONS Supply: Inputs: TC, internal RTD, 2-wire RTD, 3- / 4-wire Resistance, 2-wire CJC sensor 41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44 Resistance, Potentiometer 2-wire transmitter Current 3- / 4-wire 41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44...
  • Page 21: Block Diagram

    BLOCK DIAGRAM 2-wire transmitter Current Voltage Potentiometer Safety LP1109...
  • Page 22: Configuration / Operating The Function Keys

    CONFIGURATION / OPERATING THE FUNCTION KEYS Documentation for routing diagram. In general: When configuring the IAMS devices, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. Configuration is carried out by using the 3 function keys: will increase the numerical value or choose the next parameter will decrease the numerical value or choose the previous parameter...
  • Page 23 Signal and sensor error info via display front PGMMOD00 Sensor error (see limits in the table) is displayed as SE.BR (sensor break) or SE.SH (sensor short). Signals outside the selected range (not sensor error, see table for limits) are displayed as IN.LO indicating low input signal or IN.HI indicating high input signal.
  • Page 24 Latch When the setpoint is exceeded the relay outputs enter an alarm state. The latch function of the IAMS0022 and IAMS0020 will hold the relays in this state until the function is deactivated manually. The latch function can be applied when the relay function setpoint or window is selected.
  • Page 25 Manual deactivation of the latch function If the relay outputs are activated and thereby latched, it will be indicated in the display. The backlight flashes and the scrolling help text tells you how to deactivate the output. Manual deactivation is carried out by way of the front buttons on the PGMMOD00.
  • Page 26 Auto diagnosis The unit performs an advanced auto diagnosis of the internal circuits. The following possible errors can by display in the front unit PGMMOD00. CJ.ER - CJC sensor defect or CJC temperature outside range FL.ER - Flash error AO.ER - No load on the current output (only for S4...20 mA/S20...4 mA) NO.CO - Connection error IN.ER - Error levels on input...
  • Page 27 Selection of units After choosing the input signal type you can choose the process units which will be displayed in text line 2 (see table). By selection of temperature input the process value is always displayed in Celsius or Fahrenheit. This is selected in the menu point after selection of temperature input.
  • Page 28 Power up Fast setpoint adjustment 50.0 and relay test RELAY1 1 Increase setpoint Txt 57 2 Decrease setpoint 75.0 3 Save and exit the menu RELAY2 1 and 2 simultaneously = change relay state 50.0 Txt 57 12.0 2-10 VOLT 0-10 CURR 1111...
  • Page 29: Routing Diagram

    ROUTING DIAGRAM If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Accept the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving Availability of output parameters are model number dependent.
  • Page 30 SETP HOLD WIND CLOS OPEN 3600 3600 N.O. 100.0 INCR 100.0 NONE 0000 0000 N.C. DECR NONE SETP N.O. 50.0 INCR ERR.ACT ON.DEL OFF.DEL R2.FUNC R2.CONT R2.SETP ACT.DIR R2.HYST Txt 24 Txt 25 Txt 26 Txt 19 Txt 20 Txt 21 Txt 22 Txt 23 HOLD...
  • Page 31 S20-4 20-4 20-0 HOLD S4-20 CLOS 23mA 4-20 OPEN 3600 3600 VOLT 0/3.5mA 0-20 NONE 0000 0000 CURR NONE -200 -200 NONE CURR 4-20 23mA 150.0 ERR.ACT ON.DEL OFF.DEL ANA.OUT O.RANGE OUT.ERR OUT.LO OUT.HI Txt 24 Txt 25 Txt 26 Txt 36 Txt 37 Txt 38...
  • Page 32: Routing Diagram Advanced Settings (Adv.set)

    ROUTING DIAGRAM Advanced settings (ADV.SET) 2.0 In the submenu simulation (SIM) you must DISP press 3 to return to the default state 1.0. SAVE PASS LANG LOAD SAVE SETUP MEMORY Txt 43 Txt 44 DISP SETUP CONTRA LIGHT VALVE 5 Txt 43 Txt 45 Txt 46...
  • Page 33: Manual Deactivation Of The Latch Function

    ROUTING DIAGRAM Manual deactivation of the latch function To setup menu 40.0 Rx.LATC ENT.SET Txt 67 Txt 65 0000 9999 R1 reset To default state 1.0 40.0 0000 40.0 R1.LATC PASSW R1.LATC R1.RLSE Txt 65 Txt 65 Txt 1 Txt 66 0000 9999 R2 reset...
  • Page 34: Scrolling Help Text In Display Line 3

    SCROLLING HELP TEXT IN DISPLAY LINE 3 [01] Set correct password [19] Select OFF function - relay is permanently off [02] Enter advanced setup menu? Select POWER function - relay indicates power status OK [03] Select temperature input Select ERROR function - relay indicates sensor error only Select potentiometer input Select SETPOINT function - relay controlled by 1 setpoint Select linear resistance input...
  • Page 35 [43] Enter password setup Enter simulation mode Perform process calibration Enter display setup Perform memory operations [44] Load saved configuration into IAMS0002 Save IAMS0002 configuration in PGM [45] Adjust LCD contrast [46] Adjust LCD backlight [47] Write a 6-character device TAG...
  • Page 36: Graphic Depiction Of Latch Function Setpoint

    Graphic depiction of latch function setpoint Input ON delay signal OFF delay Setpoint (increasing) Hysteresis Time Relay latched Closed Relay contact (N.O.) Open Release not possible (setpoint still exceeded) Release not possible (setpoint-hysteresis still exceeded) Release not possible (OFF delay still exceeded) Release possible (manual deactivation) LP1109...
  • Page 37: Graphic Depiction Of Latch Function Window

    Graphic depiction of latch function window LP1109...
  • Page 38: Graphic Depiction Of Relay Action Setpoint

    Graphic depiction of relay action setpoint Relay units Relay units Hysteresis = 10 Setpoint = 50 Setpoint = 50 Hysteresis = 10 Off N.O. On N.O. Off N.O. Off N.O. On N.O. Off N.O. On N.C. On N.C. On N.C. On N.C.
  • Page 39: Ordering Information

    Ordering information DESCRIPTION PART NUMBER IAMS0002 Universal transmitter with analog output IAMS0022 Universal transmitter with analog output / 2 relays Universal trip amplifier / 2 relays IAMS0020 Display / programming module PGMMOD00 Display/Comms Module - Modbus RTU protocol PGMMODC1 interface over RS-485...
  • Page 40 LP1109...
