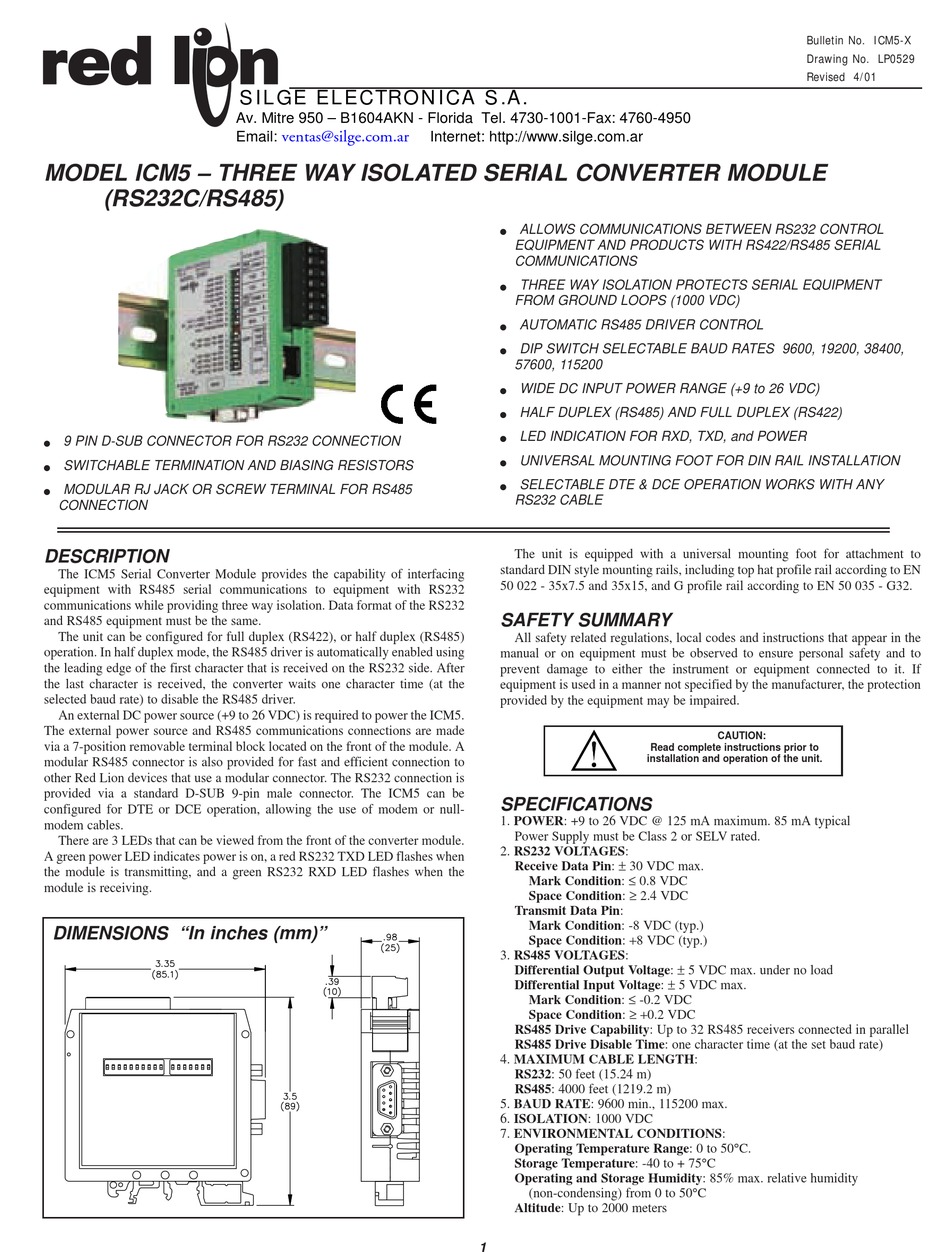

MODEL ICM5 – THREE WAY ISOLATED SERIAL CONVERTER MODULE
(RS232C/RS485)
9 PIN D-SUB CONNECTOR FOR RS232 CONNECTION
!
SWITCHABLE TERMINATION AND BIASING RESISTORS
!
MODULAR RJ JACK OR SCREW TERMINAL FOR RS485
!
CONNECTION
DESCRIPTION

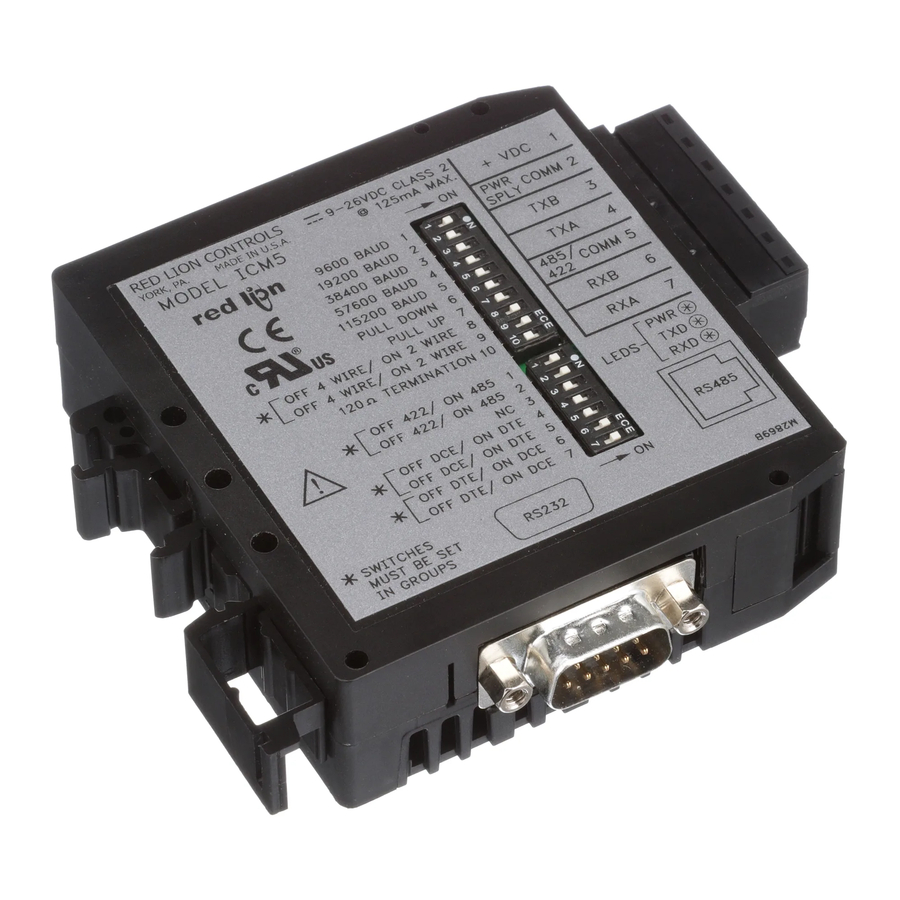

The ICM5 Serial Converter Module provides the capability of interfacing
equipment with RS485 serial communications to equipment with RS232
communications while providing three way isolation. Data format of the RS232
and RS485 equipment must be the same.
The unit can be configured for full duplex (RS422), or half duplex (RS485)
operation. In half duplex mode, the RS485 driver is automatically enabled using
the leading edge of the first character that is received on the RS232 side. After
the last character is received, the converter waits one character time (at the
selected baud rate) to disable the RS485 driver.
An external DC power source (+9 to 26 VDC) is required to power the ICM5.
The external power source and RS485 communications connections are made
via a 7-position removable terminal block located on the front of the module. A
modular RS485 connector is also provided for fast and efficient connection to
other Red Lion devices that use a modular connector. The RS232 connection is
provided via a standard D-SUB 9-pin male connector. The ICM5 can be
configured for DTE or DCE operation, allowing the use of modem or null-
modem cables.
There are 3 LEDs that can be viewed from the front of the converter module.
A green power LED indicates power is on, a red RS232 TXD LED flashes when
the module is transmitting, and a green RS232 RXD LED flashes when the
module is receiving.
DIMENSIONS "In inches (mm)"
SILGE ELECTRONICA S.A.
Av. Mitre 950 – B1604AKN - Florida Tel. 4730-1001-Fax: 4760-4950
ventas@silge.com.ar
Email:
Internet: http://www.silge.com.ar
ALLOWS COMMUNICATIONS BETWEEN RS232 CONTROL
!
EQUIPMENT AND PRODUCTS WITH RS422/RS485 SERIAL
COMMUNICATIONS
THREE WAY ISOLATION PROTECTS SERIAL EQUIPMENT
!
FROM GROUND LOOPS (1000 VDC)
AUTOMATIC RS485 DRIVER CONTROL
!
DIP SWITCH SELECTABLE BAUD RATES 9600, 19200, 38400,
!
57600, 115200
WIDE DC INPUT POWER RANGE (+9 to 26 VDC)
!
HALF DUPLEX (RS485) AND FULL DUPLEX (RS422)
!
LED INDICATION FOR RXD, TXD, and POWER
!
UNIVERSAL MOUNTING FOOT FOR DIN RAIL INSTALLATION
!
SELECTABLE DTE & DCE OPERATION WORKS WITH ANY
!
RS232 CABLE
The unit is equipped with a universal mounting foot for attachment to
standard DIN style mounting rails, including top hat profile rail according to EN
50 022 - 35x7.5 and 35x15, and G profile rail according to EN 50 035 - G32.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. POWER: +9 to 26 VDC @ 125 mA maximum. 85 mA typical
Power Supply must be Class 2 or SELV rated.
2. RS232 VOLTAGES:
Receive Data Pin: ± 30 VDC max.
Mark Condition: ≤ 0.8 VDC
Space Condition: ≥ 2.4 VDC
Transmit Data Pin:
Mark Condition: -8 VDC (typ.)
Space Condition: +8 VDC (typ.)
3. RS485 VOLTAGES:
Differential Output Voltage: ± 5 VDC max. under no load
Differential Input Voltage: ± 5 VDC max.
Mark Condition: ≤ -0.2 VDC
Space Condition: ≥ +0.2 VDC
RS485 Drive Capability: Up to 32 RS485 receivers connected in parallel
RS485 Drive Disable Time: one character time (at the set baud rate)
4. MAXIMUM CABLE LENGTH:
RS232: 50 feet (15.24 m)
RS485: 4000 feet (1219.2 m)
5. BAUD RATE: 9600 min., 115200 max.
6. ISOLATION: 1000 VDC
7. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50°C.
Storage Temperature: -40 to + 75°C
Operating and Storage Humidity: 85% max. relative humidity
(non-condensing) from 0 to 50°C
Altitude: Up to 2000 meters
1
Bulletin No. ICM5-X
Drawing No. LP0529
Revised 4/01
CAUTION:
Read complete instructions prior to
installation and operation of the unit.
