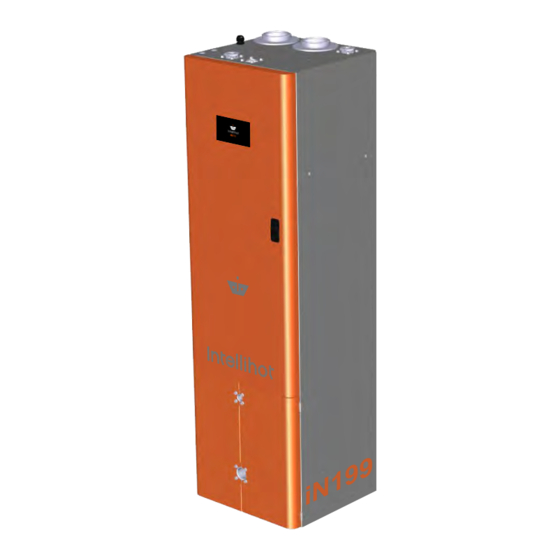

Intellihot iN199A Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Intellihot Manuals
  4. Water Heater
  5. iN199A
  6. Installation & operation manual

Intellihot iN199A Installation & Operation Manual
