Delta Controls DNT-T221 Installation Manual

INSTALLATION GUIDE
Product Description

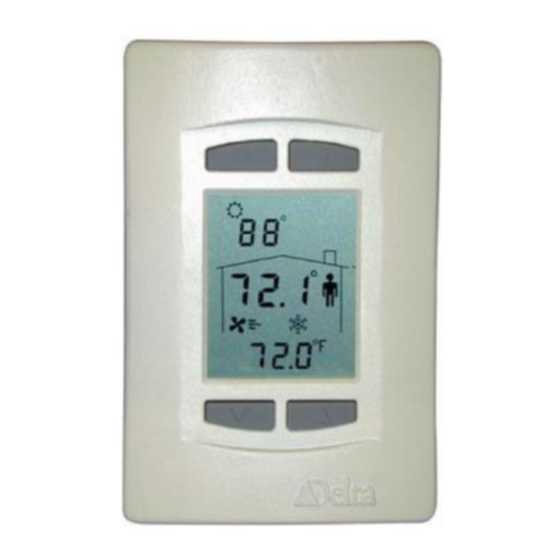

The DNT-T221 BACstat II is an intelligent 4-button room thermostat
with a custom 3-value, 96 segment LCD display that is used with
Delta's product line of BACnet Application Controllers. It has 2 extra
universal inputs, 2 analog and 1 binary outputs and built-in control
applications, and is capable of displaying a wide range of digital or
analog values, including setpoints, temperature, air flow, heating and
cooling status, fan speed, valve and damper position, and more.
also capable of communicating on Delta's proprietary LINKnet
network or directly on a BACnet MS/TP
to an Application Controller on a LINKnet network it provides
programmable remote sensor and expanded I/O capabilities to the
controller. When connected on an MS/TP network it functions as an
independent BACnet sensor with local control capabilities.
