Delta Controls DNT-T103 Installation Manual

Network thermostat bacstat ii
Hide thumbs Also See for DNT-T103:

Advertisement

Table of Contents

Product Description

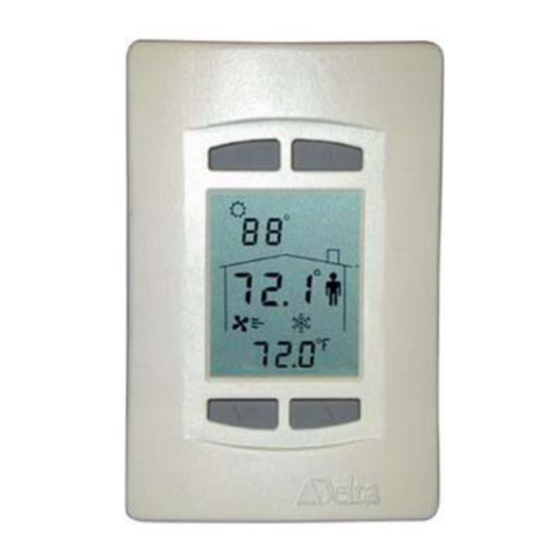

The DNT-T103 is an intelligent room thermostat with a custom 3-
value, 96 segment LCD display. The DNT-T103 can communicate on
a BACnet MS/TP network or on Delta's proprietary LINKnet network.
The DNT-T103 can display a wide-range of digital or analog values,
including setpoints, temperature, air flow, heating and cooling status,
fan speed, valve and damper position, and more.
When connected on a BACnet MS/TP network the DNT-T103
functions as an independent BACnet thermostat. When connected to a
controller, on a LINKnet network, it provides a programmable remote
sensor and expanded I/O capabilities. This version's firmware can be
flash loaded over the network, and has a termination resistor that is
jumper selectable.
Contents
MODEL NUMBERS ............................................................................................................. 2
PACKAGE CONTENTS ...................................................................................................... 2
OTHER RELEVANT DOCUMENTS................................................................................. 2
PRODUCT SPECIFICATIONS .......................................................................................... 2
PCB BOARD LAYOUT........................................................................................................ 4
JUMPERS .............................................................................................................................. 5
MOUNTING .......................................................................................................................... 6
WIRING DIAGRAM ............................................................................................................ 6
POWER.................................................................................................................................. 7
NETWORK CABLING & REQUIREMENTS .................................................................. 7
NETWORK TOPOLOGY.................................................................................................... 9
CAUTIONS & WARNINGS ................................................................................................ 9
COMPLIANCE DECLARATIONS .................................................................................. 10
Document Edition 1.9
I
NSTALLATION
Delta Network Thermostat: BACstat II
DNT-T103 (Rev 4.1)
G
UIDE
Document Edition 1.9
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DNT-T103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Controls DNT-T103

Summary of Contents for Delta Controls DNT-T103

  • Page 1: Table Of Contents

    DNT-T103 (Rev 4.1) Document Edition 1.9 Product Description The DNT-T103 is an intelligent room thermostat with a custom 3- value, 96 segment LCD display. The DNT-T103 can communicate on a BACnet MS/TP network or on Delta’s proprietary LINKnet network. The DNT-T103 can display a wide-range of digital or analog values, including setpoints, temperature, air flow, heating and cooling status, fan speed, valve and damper position, and more.

  • Page 2: Model Numbers

    Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide Model Numbers Features DNT-T103 DNT-H103B DNT-T103-UL864 Internal Thermistor Input Internal Humitity Input Additional I/O (1 IP and 3 OP) Backlighting Option B External Input Terminator Option X...
  • Page 3 Delta Controls Communication Port LINKnet Connection • Communications Speed @ 76,800 bps • Up to 12 Devices per segment (depending on the controller), only two of which can be DNT or DFM devices BACnet MS/TP Connection • Communications Speed @ 9,600 or 19,200 or 38,400 or 76,800 bps (the default) •...

  • Page 4: Pcb Board Layout

    Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide BACnet MS/TP Connection • Set via Keypad Configuration Setup, or Software Setup • Keypad MAC Address Range: 1 to 99 per network segment • Software Address Range: As per the BACnet standard •...

  • Page 5: Jumpers

    Delta Controls Jumpers INPUT SIGNAL TYPE The input type is selected by placing the jumper in the correct location on the Input Type Selector Block. The diagram to the left shows the factory default selection of 10 KΩ. For 10 KΩ Thermistor temperature sensors, as well as Binary or Dry Contact inputs.

  • Page 6: Mounting

    Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide NETWORK TERMINATION RESISTOR This jumper is used to select the termination resistor at each end of each TERM MS/TP network segment. The diagram to the left shows the factory default selection of No Term.

  • Page 7: Power

    VA and that the same polarity is observed from device to device. Power The DNT-T103 requires a 24V AC Class 2 power supply. The VA requirements vary depending on the output configuration as follows: 41 VA maximum (with internally powered triacs at full load) 3 VA (with triacs externally powered) More than one device –...
  • Page 8 Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide Boards segment. Ensure you do not overlook this in laying out your network architecture. • LINKnet: Jumper select a termination resistor on each end of the network when there are more than 2 nodes.

  • Page 9: Network Topology

    Delta Controls Network Topology BACstats Configured as MS/TP Subnet Devices With V3.21 firmware or higher, one possible MS/TP network architecture has the MS/TP devices configured as Subnet devices, which allows BACstats to reside on the MS/TP network with other Subnet devices. Note that V3.21 requires a DCU, while V3.22 or higher may use any System Controller instead.

  • Page 10: Cautions & Warnings

    Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide Cautions and Warnings The DNT-T103 BACstat II is an electrostatically sensitive device. An ESD protection (ground strap) should be unnecessary if sufficient care is taken in handling because the electronics are contained within the product housing.

  • Page 11: Compliance Declarations

    Delta Controls Compliance Declarations FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12 Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide CE - DECLARATION OF CONFORMITY according to ISO/IEC Guide 22 and EN 45014 Manufacturer's Name: Delta Controls Manufacturer's Address: 17850 56 Avenue Surrey, British Columbia Canada V3S 1C7...
