Summary of Contents for EURO EO604SX
- Page 1 U S A G E A N D C A R E G U I D E PRODUCT CODE: EO604SX EO604WH...
-
Page 3: Safety Hints
ACKNOWLEDGMENT Thank you for purchasing our product.We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference.Ensure that other people using the product are familiar with these instructions as well. -
Page 4: Fitting The Oven Into The Kitchen Unit
-The earthing cable (yellow-green) must be 10mm longer than the power cable. Heating resistance temperature of power cord is above 70 C.The power cord should be connected with duplex switch,which is no less than 250V and 10AMP. FITTING THE OVEN INTO THE KITCHEN UNIT Fit the oven into the space provided in the kitchen unit;... -
Page 5: Product Description

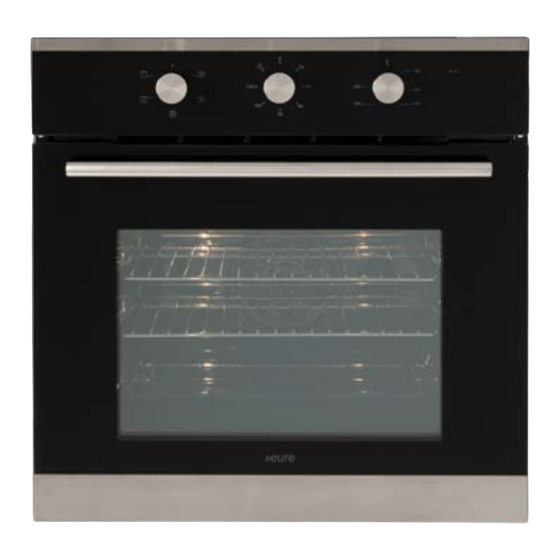

PRODUCT DESCRIPTION Timer knob Temperature Knob Function Knob Symbol Function description Oven Lamp: which enables the user to observe the progress of cooking without opening the door. Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). -
Page 6: Shelf Placement Warning
ACCESSORIES Wire shelves : For grill .dishes, cake pan with items for roasting and grilling. Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. (only for specific models) Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc,or for collecting fat/ spillage and meat juices. -
Page 7: Bulb Replacement
BULB REPLACEMENT The bulb in the light is a special bulb, and has high temperature resistance (230V~25W). For replacement, proceed as follows: 1>.Disconnect power from the mains outlet or switch off the circuit breakerof the unit's mains outlet. 2>.Unscrew the covering glass and replace the bulb with a new one of the same type. -
Page 8: Cleaning And Maintenance
CLEANING AND MAINTENANCE For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly. - Page 9 Table and tips Time Cooking Shelf Temp. 1st side 2nd side Food Weight Dish Method position (min.) (min.) Baking tray Beef 10-15 8-10 Pork 90-100 ------ wire shelves 1.2kg ------ Chicken 50-60 wire shelves wire shelves Small cakes ------ 0.3-0.4kg 20-25 wire shelves 1.2kg...
- Page 12 Pronto Service + Support: 1800 440 335 Email: service@eurostylegroup.com.au HEAD OFFICE 65 Glynburn Road, Glynde SA 5070 Ph: 08 8165 1012 www.euroappliances.com.au...
Need help?
Do you have a question about the EO604SX and is the answer not in the manual?
Questions and answers
How to remove door on EO604SX
To remove the door on the EURO EO604SX oven, follow these general steps based on typical features mentioned:
1. Ensure the oven is turned off and completely cool.
2. Open the oven door fully.
3. Locate the hinges on both sides of the door.
4. Flip the hinge locks into the open position.
5. Slowly close the door until it reaches a partially closed position (about 15°).
6. Lift the door upwards to remove it from the hinge slots.
The oven has a triple glazed removable door, indicating it is designed for easy removal using standard hinge mechanisms.
