Daewoo KOG-36852S Service Manual page 18

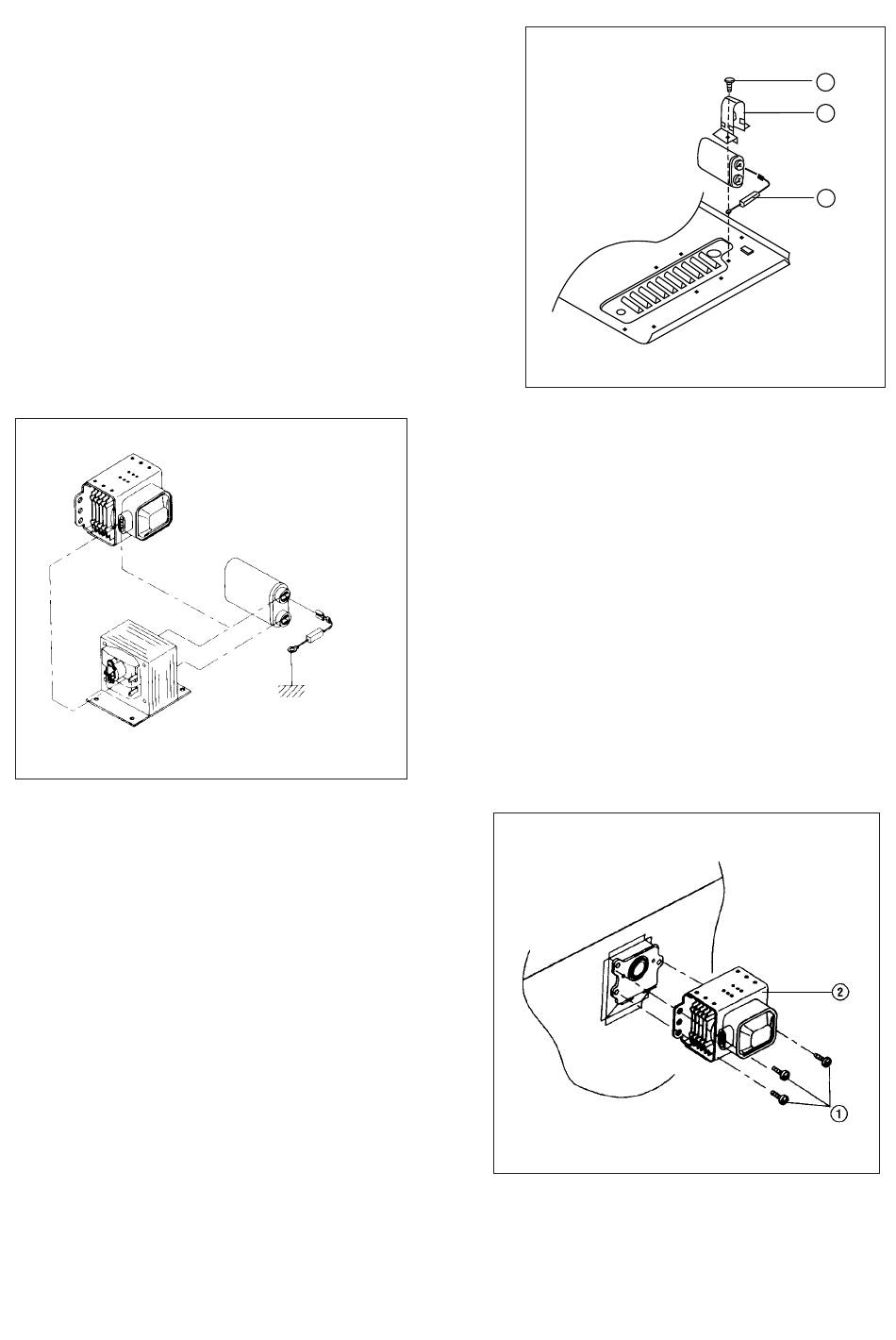

6. To remove high voltage capacitor.
(1) Remove a screw ¤ which secure the grounding ring
terminal of the H.V. diode ¤Ł and the capacitor holder ¤Ø .
(2) Remove the H.V. diode ¤Ł from the capacitor holder ¤Ø .
(3) Reverse the above steps for reassembly.
High voltage circuit wiring
Magnetron
H.V. Transformer
7. To remove magnetron.
(1) Remove three screws ¤ which secure the
magnetron ¤Ł .
(2) Remove the magnetron ¤Ł .
(3) Reverse the above steps for reassembly.
H.V. Capacitor
H.V. Diode
18
1
3
2
