We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

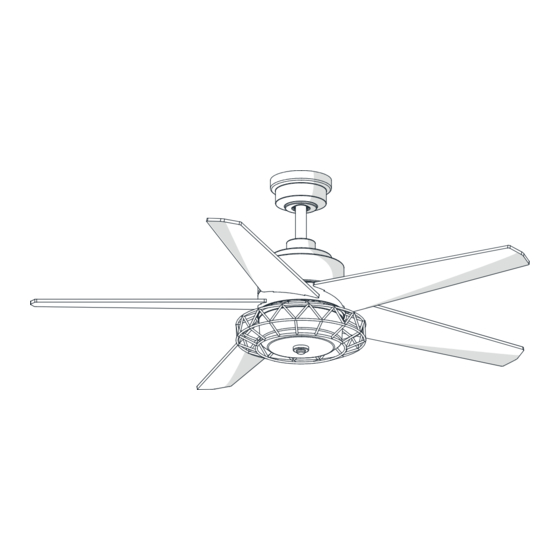

PEMBERTON 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #1002 316 433
Model #56072
UL Model # 52-PADA
Advertisement
Related Manuals for Home Decorators Collection PEMBERTON 56072
Summary of Contents for Home Decorators Collection PEMBERTON 56072
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Plastic wire connector...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Cage (inside canopy) Light kit fitter assembly Ball/downrod assembly Glass bowl Canopy Receiver Decorative motor collar cover Remote control (battery included) Fan-motor assembly Extension lead wire Blade IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock, proper blade clearance when installing on a steep, sloped or personal injury, mount the fan to an outlet box ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparation for standard mounting Routing the wires □ □ Remove the canopy bottom cover (DD) from the canopy Route the wires exiting the top of the fan motor assembly (C) by turning the bottom cover counterclockwise until it (E) through the decorative motor collar cover (D) and then unlocks. - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ Carefully lift the fan-motor assembly (E) up to the slide-on WARNING: To reduce the risk of fire, electric shock, or other mounting bracket (A). personal injury, mount the fan to an outlet box or supporting □...
- Page 9 Assembly - Hanging the Fan (continued) Setting the code on the remote control and receiver NOTE: The frequencies on your receiver and hand unit have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and hand unit are set to the same frequency.
- Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the household Wiring the fan to the receiver wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with the electricity off at the main fuse box before wiring.
- Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 12 Assembly - Attaching the Light Kit Installing the cage □ Remove one screw (MM) from the black bracket below fan motor assembly (E), and loosen but do not remove the other two screws. □ Push the cage (G) up to the fan motor assembly (E) so that the two loosened screw heads fit into the keyhole slots.
-
Page 13: Operation
Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on. -
Page 14: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 15 (2) this device must accept any interference received, including interference that may cause undesired operation. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
