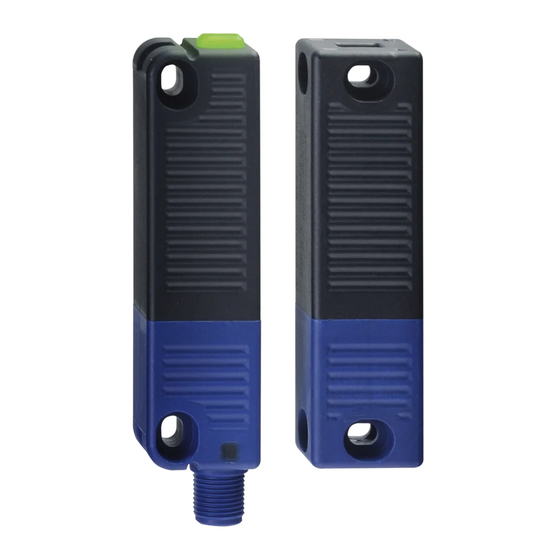

INSTRUCTIONS FOR OPERATION AND ASSEMBLY Electronic safety-sensor RSS 36-SD-ST Test Table of Contents 1 About this document 1.1 Function 1.2 Target group of the operating instructions: authorised qualified personnel 1.3 Explanation of the symbols used 1.4 Appropriate use 1.5 General safety instructions 2 Product description 2.1 Ordering code... -
Page 2: Target Group Of The Operating Instructions: Authorised Qualified Personnel
Warning:Failure to comply with this warning notice could lead to physical injury and/or damage to the machine. 1.4 Appropriate use Products in Schmersal's range are not intended to be used by private end consumers. The products described in these operating instructions are developed to execute safety-related functions as part of an entire plant or machine. -
Page 3: Product Description
Further technical information can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com. 2 Product description 2.1 Ordering code Product type description: RSS 36 (1)-(2)-(3)-(4) without Standard coding Individual coding Individual coding, re-teaching enabled... -
Page 4: Warning About Misuse
The safety function consists of safely switching off the safety outputs when the safety guard is opened and maintaining the safe switched off condition of the safety outputs for as long as the safety guard is open. The safety switchgears are classified according to ISO 14119 as type 4 interlocking devices. Designs with individual coding are classified as highly coded. - Page 5 Certificates TÜV cULus ECOLAB General data Standards EN IEC 60947-5-3 Coding Universal coding Coding level according to EN ISO 14119 Working principle RFID Housing construction form Block Installation conditions (mechanical) not flush Sensor topology Sensor for series wiring Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing Active area Glass-fibre, reinforced thermoplastic...
- Page 6 Performance Level, up to Category PFH value 2.70 x 10⁻¹⁰ /h Safety Integrity Level (SIL), suitable for applications in Mission time 20 Year(s) Mechanical data Actuating panels lateral Active area lateral Hysteresis (Switching distance), maximum 2 mm Repeat accuracy R 0.5 mm Note (Repeat accuracy R) Axial offset: The long side allows for a maximum height...
- Page 7 Ambient temperature, minimum -25 °C Ambient temperature, maximum +70 °C Storage and transport temperature, minimum -25 °C Storage and transport temperature, maximum +85 °C Material temperature resistance of the cable (in motion), minimum -10 °C Material temperature resistance of the cable (at rest), minimum -30 °C Material temperature resistance (long-term), maximum +105 °C...
- Page 8 This device complies with the nerve stimulation limits (ISED SPR-002) when operated at a minimum distance of 100 mm. Changes or modifications not expressly approved by K.A. Schmersal GmbH & Co. KG could void the user's authority to operate the equipment.
-
Page 9: Mounting
This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective. -
Page 10: Accessories
Actuator Alternative suitable actuators with different design: refer to products.schmersal.com. 4.3 Accessories Set of disposable screws (order separately) - 4x M4x25 incl. washers, order number 101217746 - 4x M4x30 incl. washers, Bestellnummer 101217747 Sealing kit (order separately) - Order number 101215048 - 8 plugs and 4 under seals - To seal the mounting holes and as a spacer (approx. -
Page 11: Switch Distance
4.4 Switch distance Switching distances in mm to IEC 60947-5-3 Typical switching distance s Assured switching distance s Assured switch-off distance s There are new switch distances as per the table below owing to the necessity of technical modifications (V2). Please check the design of your guard system following installation to ensure adherence to the secured switch distances (≤... -
Page 12: Adjustment
The side allows for a maximum height misalignment (X) of sensor and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm. Latching versions X ± 5 mm, Y ± 3 mm. The latching force will be reduced by misalignment. -
Page 13: Serial Diagnostic -Sd
Requirements for the connected safety-monitoring module: dual-channel safety input, suitable for p-type sensors with NO function Information for the selection of suitable safety-monitoring modules can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com. -
Page 14: Wiring Examples For Series-Wiring
5.3 Wiring examples for series-wiring Series-wiring can be set up. In the case of a series connection, the risk time remains unchanged and the reaction time increases by the sum of the reaction time of the inputs per additional unit specified in the technical data. The number of components is only limited by the external cable protection according to the technical data and the line loss. - Page 15 Function safety switchgear Pin configuration of the Colour codes of the Schmersal Poss. connector connectors colour codes of other customary connectors 8-pin 5-pin 8-pin version ST 5-pin to IEC version ST version ST version ST 60947-5-2: 2007 with...
-
Page 16: Actuator Coding
6 Actuator coding Safety sensors with standard coding are ready to use upon delivery. Individually coded safety sensors and actuators will require the following "teach-in" procedure: 1. Energise the safety sensor. 2. Introduce the actuator in the detection range. The teach-in procedure is signalled at the safety sensor, red LED on, yellow LED flashes (1 Hz). -
Page 17: Operating Principle Of The Electronic Diagnostic Output
LED indication (red) Error cause 1 flash pulse Error output Y1 2 flash pulses Error output Y2 3 flash pulses Cross-wire Y1/Y2 4 flash pulses ambient temperature too high 5 flash pulses Wrong or defective actuator Continuous red ... -
Page 18: Safety-Sensors With Serial Diagnostic Function
Table 1: Examples of the diagnostic function of the safety-sensor with conventional diagnostic output Sensor function LED's Diagnostic- Safety Comments output outputs green yellow Y1, Y2 Supply voltage Voltage on, no evaluation of the voltage quality actuated 24 V 24 V The yellow LED always signals... - Page 19 SD-Gateway is integrated as a slave in an existing field bus system. In this way, the diagnostic signals can be evaluated by means of a PLC. The necessary software for the integration of the SD-Gateway is available for download at products.schmersal.com. The response data and the diagnostic data are automatically and permanently written in the assigned input byte of the PLC for each safety sensor in the series-wired chain.
- Page 20 Table 2: Function of the visual diagnostic LEDs, the serial status signals and the safety outputs by means of an example System LED's Safety Status signals serial diagnostic byte Bit n° conditi outputs green yellow Y1, Y2 Non- actaute d, inputs X1 and enabled Actuate...
-
Page 21: Set-Up And Maintenance
Table 3: Tabular overview of status signals, warnings or error messages(The described condition is reached, when Bit = Communication Request byte: from the PLC to the local safety sensor directions: Response byte: from the local safety sensor to the PLC ... -
Page 22: Disassembly
9.1 Disassembly The safety switchgear must be disassembled in a de-energised condition only. 9.2 Disposal The safety switchgear must be disposed of in an appropriate manner in accordance with the national prescriptions and £ legislations.
