Page 1: Table Of Contents

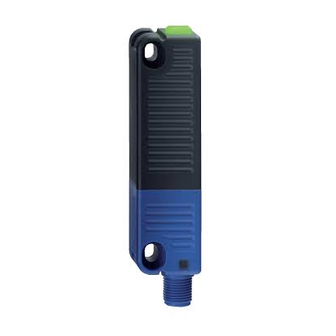

操作与安装指示 ELECTRONIC SAFETY-SENSOR RSS 36- I2-SD-ST-DU Table of Contents 1 About this document 1.1 Function 1.2 Target group of the operating instructions: authorised qualified personnel 1.3 Explanation of the symbols used 1.4 Appropriate use 1.5 General safety instructions 2 Product description 2.1 Ordering code 2.2 Special versions 2.3 Purpose... -
Page 2: Target Group Of The Operating Instructions: Authorised Qualified Personnel
Warning:Failure to comply with this warning notice could lead to physical injury and/or damage to the machine. 1.4 Appropriate use Products in Schmersal's range are not intended to be used by private end consumers. The products described in these operating instructions are developed to execute safety-related functions as part of an entire plant or machine. -
Page 3: Product Description
Further technical information can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com. 2 Product description 2.1 Ordering code 产品描述: RSS 36 (1)-(2)-(3)-(4) 无 标准编码 独立编码 单独编码，可重新示教 无 without diagnostic function (only on request for ST5) 带诊断输出... -
Page 4: Warning About Misuse
The safety function consists of safely switching off the safety outputs when the safety guard is opened and maintaining the safe switched off condition of the safety outputs for as long as the safety guard is open. The safety switchgears are classified according to ISO 14119 as type 4 interlocking devices. Designs with individual coding are classified as highly coded. - Page 5 证书 TÜV cULus ECOLAB 总体数据 标准 EN IEC 60947-5-3 通用信息 单独编码，多次示教 编码等级，依据EN ISO 14119 高 作用原理 RFID Frequency band RFID 125 kHz Transmitter output RFID, maximum -6 dB/m 外壳结构类型 块体 安装条件（机械） 非冲洗 传感器拓扑 串联传感器 外壳材料 塑料，玻璃纤维加固热塑塑料，自熄灭 活动区域 玻璃纤维，加强型热塑塑料 毛重 250 g 准备就绪时间，最大...
- Page 6 安全评估 标准 EN ISO 13849-1 EN IEC 60947-5-3 EN IEC 62061 EN IEC 61508 性能水平，最高 控制类别，根据EN ISO 13849 PFH值 2.70 x 10⁻¹⁰ /h PFD值 2.10 x 10⁻⁵ 安全完整性等级 (SIL)，适用于以下应用 任务时间 20 年 机械参数 操作面板 横向 活动区域 横向 滞后（开关距离），最大 2 mm 重复精度...
- Page 7 传感器高度 25 mm 环境条件 防护等级 IP65 IP67 IP69 环境温度，最小 -25 °C 环境温度，最大 +70 °C 储存和运输温度，最小 -25 °C 储存和运输温度，最大 +85 °C 最大相对湿度 93 % 注（相对湿度） 无冷凝 不结冰 抗振性，依据EN 60068-2-6： 10 ... 55 Hz，振幅 1 mm 抗冲击 30 g / 11 ms 防护等级...
- Page 8 Test pulse interval, minimum 100 ms 分类 ZVEI CB24I，接收器 分类 ZVEI CB24I，信号源 Electrical data - Safety digital outputs 指定，安全输出 Y1和Y2 额定工作电流（安全输出） 250 mA 输出电流（故障安全输出），最大 0.25 A 版本 短路保护，P型 电压降 U ，最大值 电流漏泄 0.5 mA 电压，应用类别 DC-12 24 VDC 电流，应用类别 DC-12 0.25 A 电压，应用类别...
-
Page 9: Mounting
This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective. -
Page 10: Dimensions
recommended when the actuator is mounted upright and/or when the sealing discs are used. (Tightening torque 2,2...2,5 Nm). The labelled surfaces of the safety sensor and the actuator have to be opposite. The safety sensor must only be used within the assured switching distances ≤ sao and ≥ sar. To avoid any interference inherent to this kind of system and any reduction of the switching distances, please observe the following guidelines: The presence of metal chips in the vicinity of the sensor is liable to modify the switching distance. -
Page 11: Accessories
Alternative suitable actuators with different design: refer to products.schmersal.com. 4.3 Accessories Set of disposable screws (order separately) - 4x M4x25 incl. washers, order number 101217746 - 4x M4x30 incl. washers, Bestellnummer 101217747 Sealing kit (order separately) - Order number 101215048 - 8 plugs and 4 under seals - To seal the mounting holes and as a spacer (approx. -
Page 12: Switch Distance
4.4 Switch distance Switching distances in mm to IEC 60947-5-3 Typical switching distance s Assured switching distance s Assured switch-off distance s There are new switch distances as per the table below owing to the necessity of technical modifications (V2). Please check the design of your guard system following installation to ensure adherence to the secured switch distances (≤... -
Page 13: Adjustment
The side allows for a maximum height misalignment (X) of sensor and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm. Latching versions X ± 5 mm, Y ± 3 mm. The latching force will be reduced by misalignment. -
Page 14: Serial Diagnostic -Sd
Requirements for the connected safety-monitoring module: dual-channel safety input, suitable for p-type sensors with NO function Information for the selection of suitable safety-monitoring modules can be found in the Schmersal catalogues or in the online catalogue on the Internet: products.schmersal.com. -
Page 15: Wiring Examples For Series-Wiring
5.3 Wiring examples for series-wiring Series-wiring can be set up. In the case of a series connection, the risk time remains unchanged and the reaction time increases by the sum of the reaction time of the inputs per additional unit specified in the technical data. The number of components is only limited by the external cable protection according to the technical data and the line loss. - Page 16 Function safety switchgear Pin configuration of the Colour codes of the Schmersal Poss. connector connectors colour codes of other customary connectors 8-pin 5-pin 8-pin version ST 5-pin to IEC version ST version ST version ST 60947-5-2: 2007 with...
-
Page 17: Actuator Coding
6 Actuator coding Safety sensors with standard coding are ready to use upon delivery. Individually coded safety sensors and actuators will require the following "teach-in" procedure: 1. Energise the safety sensor. 2. Introduce the actuator in the detection range. The teach-in procedure is signalled at the safety sensor, red LED on, yellow LED flashes (1 Hz). -
Page 18: Operating Principle Of The Electronic Diagnostic Output
LED indication (red) Error cause 1 flash pulse Error output Y1 2 flash pulses Error output Y2 3 flash pulses Cross-wire Y1/Y2 4 flash pulses ambient temperature too high 5 flash pulses Wrong or defective actuator Continuous red ... -
Page 19: Safety-Sensors With Serial Diagnostic Function
Table 1: Examples of the diagnostic function of the safety-sensor with conventional diagnostic output Sensor function LED's Diagnostic- Safety Comments output outputs green yellow Y1, Y2 Supply voltage Voltage on, no evaluation of the voltage quality actuated 24 V 24 V The yellow LED always signals... - Page 20 SD-Gateway is integrated as a slave in an existing field bus system. In this way, the diagnostic signals can be evaluated by means of a PLC. The necessary software for the integration of the SD-Gateway is available for download at products.schmersal.com. The response data and the diagnostic data are automatically and permanently written in the assigned input byte of the PLC for each safety sensor in the series-wired chain.
- Page 21 Table 2: Function of the visual diagnostic LEDs, the serial status signals and the safety outputs by means of an example System LED's Safety Status signals serial diagnostic byte Bit n° conditi outputs green yellow Y1, Y2 Non- actaute d, inputs X1 and enabled Actuate...
-
Page 22: Set-Up And Maintenance
Table 3: Tabular overview of status signals, warnings or error messages(The described condition is reached, when Bit = Communication Request byte: from the PLC to the local safety sensor directions: Response byte: from the local safety sensor to the PLC ... -
Page 23: Disassembly
9.1 Disassembly The safety switchgear must be disassembled in a de-energised condition only. 9.2 Disposal The safety switchgear must be disposed of in an appropriate manner in accordance with the national prescriptions and £ legislations.
