Officeworks ND 21 Assembly Instructions Manual

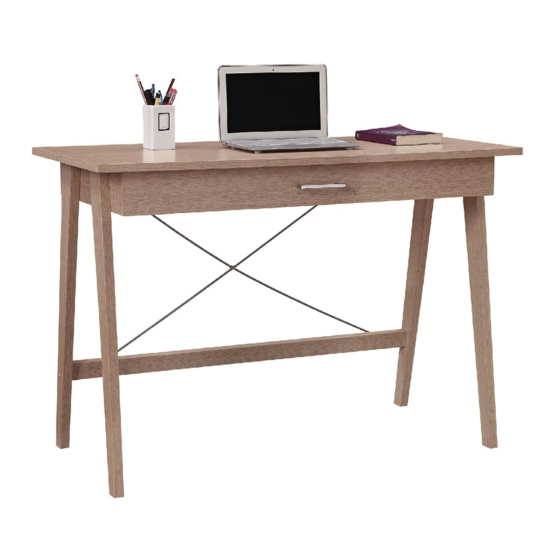

Merlot one drawer desk

Download this manual

Important:

Lay out all of the parts on a non-abrasive surface in order to avoid scratching, then identify and

count prior to assembly.

If you are missing any hardware components from the Hardware List or need assembly assistance, please

contact UBIZ Furniture on

Tel: (03) 9357 5800 Fax: (03) 9357 5811 / Email: smallparts@ubizfurniture.com

If you are missing any parts from the Parts List please contact your store of purchase.

Need help?

Do you have a question about the ND 21 and is the answer not in the manual?

Page 1 Important: Lay out all of the parts on a non-abrasive surface in order to avoid scratching, then identify and count prior to assembly. If you are missing any hardware components from the Hardware List or need assembly assistance, please contact UBIZ Furniture on Tel: (03) 9357 5800 Fax: (03) 9357 5811 / Email: smallparts@ubizfurniture.com If you are missing any parts from the Parts List please contact your store of purchase.
Page 2 PARTS IDENTIFICATION Top frame 1 PC 1 PC Left front leg Left back leg 1 PC 1 PC Right front leg Right back leg 1 PC 1 PC Back lower bar Tension bar 2 PCS Page 2 of 6...
Page 3 HARDWARE IDENTIFICATION Allen bolt ( dia. 6 x 65mmL ) 2 PCS 2 PCS Wood dowel 2 PCS Glue 1 PC Handle 1 PC Machine screw ( Dia.4 x 22mm L ) 2 PCS Wood screw ( Dia.3 x 15mmL ) 4 PCS Wood cover 2 PCS...
Page 4 Left side : Press up the key of glide STEP 1 Right side : Press down the key of glide Before assembling legs, open the drawer, press the key of glide and move the drawer outwards until the screw holes on side panel is exposed, then you can put screws in the hole to assemble legs.
Page 5 STEP 3 4pcs 1pcs 1pcs 1pcs STEP 4 2PCS Page 5 of 6...
Page 6 Maximum Load Capacity Product overall size : 1100 x 500 x 760mmH Page 6 of 6...
