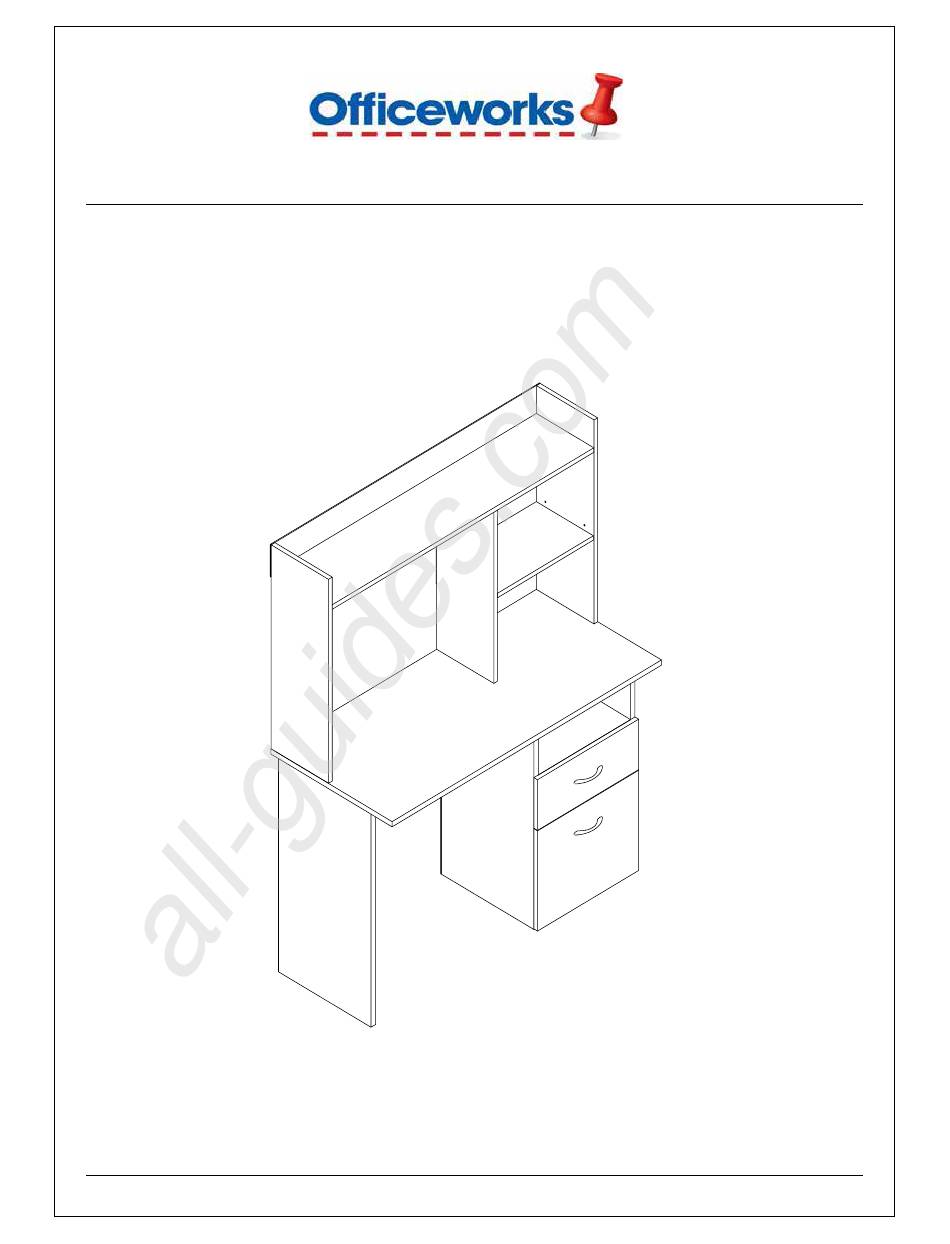

- Page 1 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS MODEL#: SMOXFORDHU OXFORD HUTCH DESK This design and instruction booklet is subject to copyright. www.officeworks.com.au Page 1 of 18...
- Page 2 - Please ensure you have the name of the item and hardware part required and quantity. - Please retain your receipt for proof of purchase to validate warranty. Enjoy your new purchase. Officeworks Superstores Pty Ltd. 236-262 East Boundary Road...
-
Page 3: Parts List
All manuals and user guides at all-guides.com PARTS LIST x1pc x1pc x1pc x1pc x1pc x2pcs x1pc x1pc x1pc x1pc x1pc x2pcs x1pc x1pc x1pc x1pc x1pc x1pc x1pc x1pc x1pc x1pc x1pc x1pc Page 3 of 18... -
Page 4: Hardware List
All manuals and user guides at all-guides.com HARDWARE LIST x2pcs x28pcs x30pcs x4pcs x12pcs x16pcs x2pcs x2pcs x2pcs x2pcs x2pcs x22pcs x16pcs x8pcs x4pcs x6pcs x6pcs x6pcs x12pcs x4pcs x4pcs Page 4 of 18... - Page 5 All manuals and user guides at all-guides.com Step 1 x8pcs x8pcs x2pcs x2pcs Step 2 x2pcs x4pcs x2pcs Page 5 of 18...
- Page 6 All manuals and user guides at all-guides.com Step 3 x4pcs x2pcs x2pcs Step 4 x10pcs 。 XX=YY=90 Note: Partially hammer the nails 2/3 into back panel at this step for easy removal. After the drawers are fully aligned and travel smoothly, fully hammer nails to inside back panel.
- Page 7 All manuals and user guides at all-guides.com Step 5 x4pcs Step 6 x4pcs x4pcs Page 7 of 18...
- Page 8 All manuals and user guides at all-guides.com Step 7 x4pcs x8pcs x6pcs Step 8 x2pcs Page 8 of 18...
- Page 9 All manuals and user guides at all-guides.com Step 9 x2pcs x2pcs Step 10 x2pcs x2pcs Page 9 of 18...
- Page 10 All manuals and user guides at all-guides.com Step 11 x2pcs x2pcs Step 12 x12pcs Page 10 of 18...
- Page 11 All manuals and user guides at all-guides.com Step 13 x6pcs Step 14 x6pcs x6pcs Page 11 of 18...
- Page 12 All manuals and user guides at all-guides.com Step 15 x6pcs x6pcs Step 16 x4pcs Page 12 of 18...
- Page 13 All manuals and user guides at all-guides.com Step 17 x4pcs Step 18 x4pcs Page 13 of 18...
- Page 14 All manuals and user guides at all-guides.com Step 19 x4pcs x1pc x1pc Step 20 x2pcs x1pc Page 14 of 18...
- Page 15 All manuals and user guides at all-guides.com Step 21 x4pcs Step 22 x4pcs Page 15 of 18...
- Page 16 All manuals and user guides at all-guides.com Step 23 x2pcs x4pcs Step 24 x4pcs x1pc x1pc Page 16 of 18...
- Page 17 All manuals and user guides at all-guides.com Step 25 x2pcs x1pc Step 26 x4pcs Page 17 of 18...
-
Page 18: Maximum Weight Capacity
Maximum Weight will result in instability and may cause possible injury. Thank you for purchasing our product! Please retain your receipt to validate warranty lf you’d like to know more about Officeworks’ furniture products, please visit our website.www.officeworks.com.au Page 18 of 18...
