Summary of Contents for Officeworks J.BURROWS JBRAPTPRBK

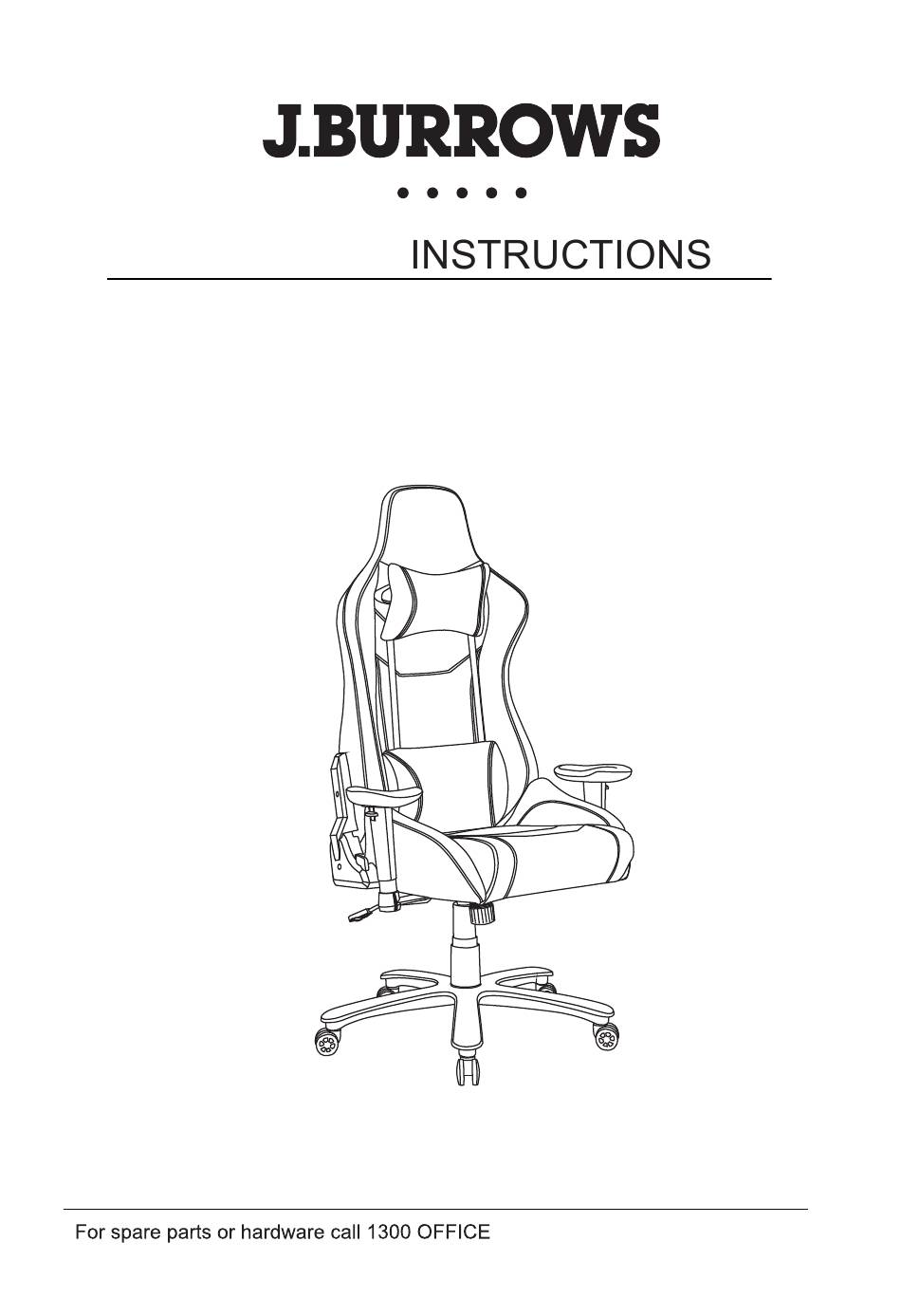

- Page 1 ASSEMBLY TYPHOON ELITE GAMING HIGH BACK CHAIR JBRAPTPRBK Weight capacity:160kg & 1 CTN www.officeworks.com.au 1/10...
- Page 2 Furniture Assembly Instructions S Assembly Video tyle Guide To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service Contact Details Spare Parts & Hardware...
- Page 3 • If parts are missing, broken, damaged or worn, stop using the product until all repairs are made using manufacturer authorised parts. • Failure to follow these warnings could result in serious injury. DANGER • CHILDREN MUST BE SUPERVISED. Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA 3/10...
- Page 4 Parts List Hardware List Hardware Spare Parts number - HWRAPTPRHW 30mm M5*12mm Spare Parts number - HWRAPTPRBS HWRAPTPRCA HWRAPTPRAR HWRAPTPRGL 4/10...
- Page 5 Step 1 Step 2 5/10...
- Page 6 Step 3 M8*25mm Step 4 M5*12mm 6/10...
- Page 7 Step 5 M5*12mm Step 6 M8*30mm FRONT C(L) C(R) 7/10...
- Page 8 Step 7 M8*25mm FRONT Step 8 8/10...
- Page 9 Back Tilt Sitting in the chair pull lever up. Move your upper body back & forth to a comfortable position. When comfortable lock the Arm Pad Swivel position by pushing the lever down. Chair Height Adjustment Arm Height Adjustment To increase chair height pull lever upward while lifting body Pull lever up whilst moving the arm up or down.
- Page 10 Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
