SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE

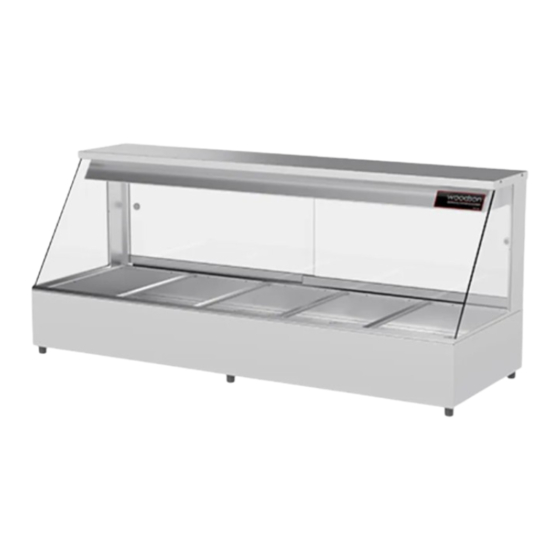

Hot Food Displays
W.HFS22
W.HFSQ22
W.HFS23
W.HFSQ23
W.HFS24
W.HFSQ24
W.HFS25
W.HFSQ25
W.HFS26
W.HFSQ26
A guide on the use, care and maintenance
of your quality Woodson product
Models:
W.HFC22
W.HFC23
W.HFC24
W.HFC25
W.HFC26
Revision: B - 24/07/2020
W.HFSS23
W.HFSS24
W.HFSS25
W.HFSS26
Advertisement
Table of Contents
Related Manuals for STODDART Woodson W.HFS22
Summary of Contents for STODDART Woodson W.HFS22

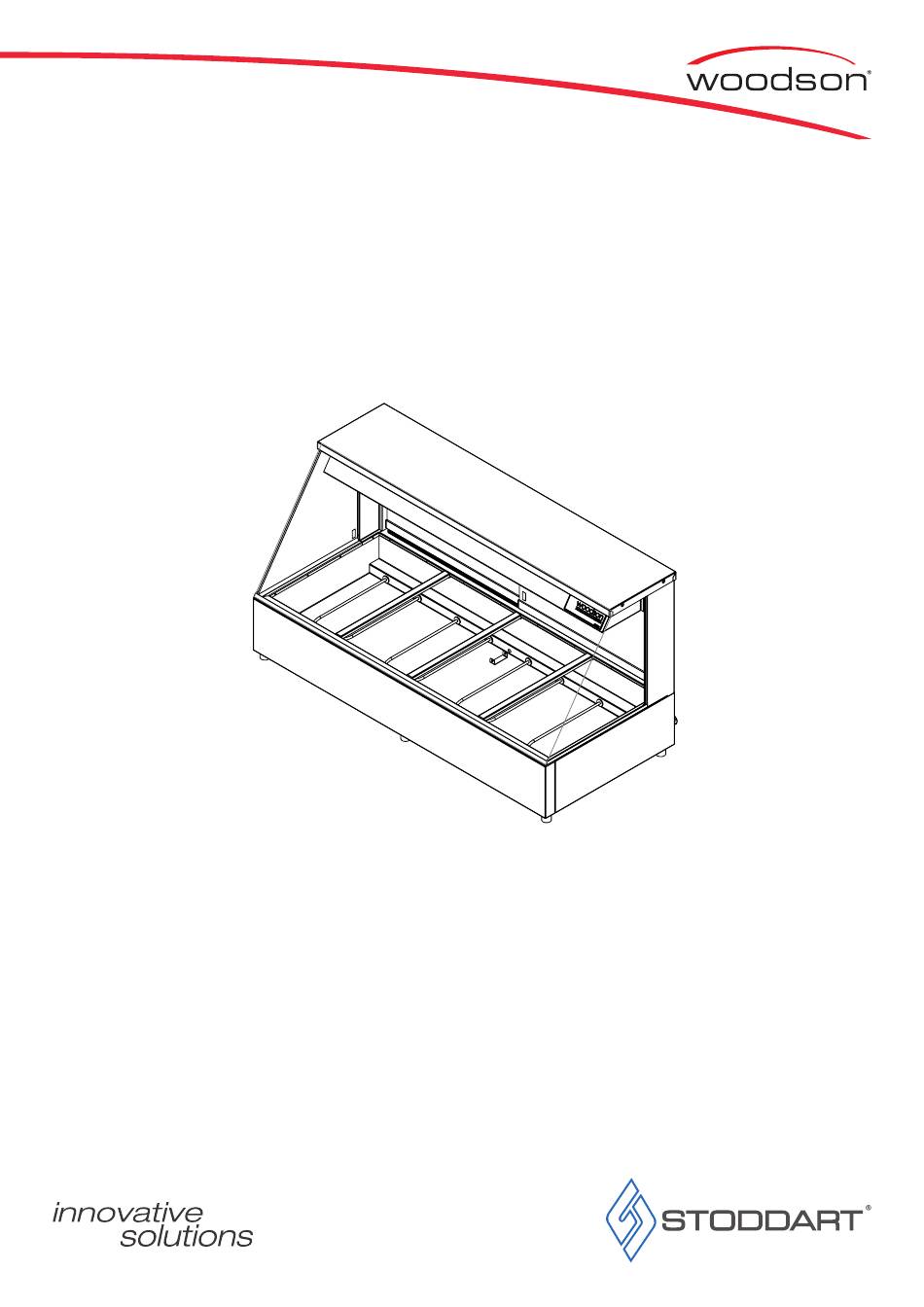

- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Hot Food Displays Models: W.HFS22 W.HFSQ22 W.HFC22 W.HFSS23 W.HFS23 W.HFSQ23 W.HFC23 W.HFSS24 W.HFS24 W.HFSQ24 W.HFC24 W.HFSS25 W.HFS25 W.HFSQ25 W.HFC25 W.HFSS26 W.HFS26 W.HFSQ26 W.HFC26 A guide on the use, care and maintenance of your quality Woodson product Revision: B - 24/07/2020...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
-
Page 3: Table Of Contents
Food Safety ......12 Food Temperature Food Storage Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 2... -
Page 4: Introduction
Woodson product in accordance with these instructions, will provide many years of reliable service. Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering value-for-money, ease-of-use and reliability. -
Page 5: Australia And New Zealand Warranty
The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the machine • Only specifi cally trained/qualifi ed Technicians (Stoddart, one of our service agents, or a similarly qualifi ed persons) should carry out any and all repairs, maintenance and services Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 6: Installation
Surface is Hot Hot Food Display Straight Glass Profile - W.HFS24 Front Glass Heating Heat Lamp Element Rubber Feet Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... -
Page 7: Setting Up
For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 6... -
Page 8: Electrical Connection
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard. Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard •... -
Page 9: Sneeze Guard / Tray Race
Remove the screws from the LHS and RHS bottom back of unit, mount the tray race brackets in place with the screws Place tray onto the brackets and secure with screws Place end brackets into position and secure with screws Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8... -
Page 10: Technical Specifications
15A plug & lead fitted W.HFC22 - 705mm W.HFC23 - 1030mm W.HFC24 - 1355mm W.HFC25 - 1680mm W.HFC26 - 2005mm Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 9... -
Page 11: W.hfsqxx
15A plug & lead fitted 15A plug & lead fitted W.HFSS23 - 1030mm W.HFSS24 - 1355mm W.HFSS25 - 1680mm W.HFSS26 - 2005mm Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10... -
Page 12: Operation
The water in the well and the surfaces of this unit are HOT when operating. Take caution and do NOT place any part of the body in the water. Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 11... -
Page 13: Gn Pans, Loading Hot Food Display
This unit is NOT designed to store product after hours. The unit MUST be switched OFF • If the unit is moved for night storage, ensure the castors are locked (mobile units only) Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 12... -
Page 14: Cleaning And Maintenance
Contact with hot surfaces can cause burns and food, deeming the surface not serious injury FOOD SAFE Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13... -
Page 15: Cleaning Schedule
Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices and folds Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14... -
Page 16: Replacing Heat Lamp Bulbs
Re-install the lamp shield bars then place the end capping into position and secure with the retaining screw Lamp Shield Bars Bulb End Capping Retaining Screw Socket Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 15... -
Page 17: Troubleshooting
• If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. - Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 17...
- Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 18...
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz...
