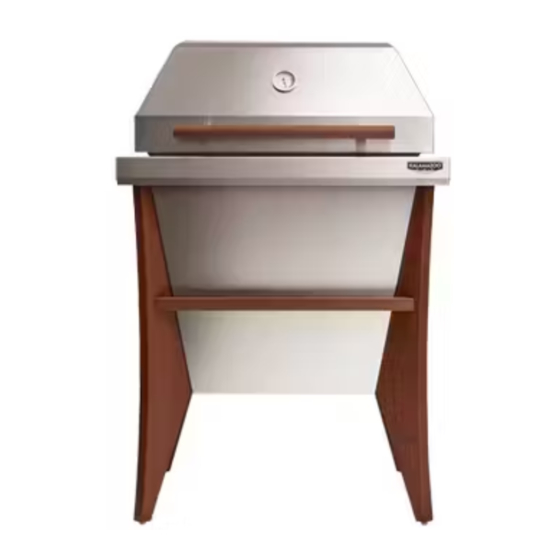

Kalamazoo Shokunin Kamado KSHOK430 Use And Care Manual
  1. Manuals
  2. Brands
  3. Kalamazoo Manuals
  4. Grill
  5. Shokunin Kamado KSHOK430
  6. Use and care manual

Kalamazoo Shokunin Kamado KSHOK430 Use And Care Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Shokunin Kamado Grill
U S E
A N D
C A R E
G U I D E
+1.800.868.1699
1

Advertisement

loading

Related Manuals for Kalamazoo Shokunin Kamado KSHOK430

Summary of Contents for Kalamazoo Shokunin Kamado KSHOK430

  • Page 1 Shokunin Kamado Grill U S E A N D C A R E G U I D E +1.800.868.1699...
  • Page 2 KalamazooGourmet.com...
  • Page 3 Important Safety Warnings This grill is FOR OUTDOOR USE ONLY. It is not to be used inside a garage, other building or any type of enclosed area. Do not use below overhead combustible surfaces. Do not use on combustible decks or other surfaces. WARNING: Failure to follow the information in this Use and Care Guide exactly may result in fire, causing property damage, personal injury or death.
  • Page 4 This Use and Care Guide contains important information necessary Thank you for choosing Kalamazoo Outdoor for the proper assembly and safe Gourmet cooking equipment. use of the grill. Because of the high performance nature and Read and follow all warnings and...

  • Page 5: Table Of Contents

    Table of Contents Safety Information Anatomy of the Shokunin Initial Setup Operation and Lighting Dimensions and Clearances Product Care Packing List About Kalamazoo Outdoor Gourmet +1.800.868.1699...
  • Page 6 KalamazooGourmet.com...

  • Page 7: Safety Information

    Safety Information +1.800.868.1699...
  • Page 8 Safe Operation WARNING: When in use, portions of your grill get hot enough to cause severe burns. Children and pets should never be left alone or unattended in the area where the grill is being used. Never allow children to sit, stand or play on or around the grill. IMPORTANT: Improper use or installation is dangerous.
  • Page 9 Backdrafts WARNING: Use caution to avoid a dangerous backdraft. A backdraft can occur in kamado- style grills when a hot fire is deprived of oxygen and then the lid is opened. The sudden inrush of oxygen can cause a massive eruption of flame as the oxygen reaches the heat of the smothered fuel.
  • Page 10 KalamazooGourmet.com...

  • Page 11: Anatomy Of The Shokunin

    Anatomy of the Shokunin +1.800.868.1699...
  • Page 12 Anatomy of the Shokunin Kamado Grill FOREST STEWARDSHIP COUNCIL (FSC) CERTIFIED IPE WOOD FRAME: The Shokunin frame is crafted from beautiful and durable ipe wood. Natural variations in the wood mean that no two Shokunin Kamado Grills are the same. The frame is available in two finishes: natural ipe, or treated with Penofin oil. INSULATED STAINLESS STEEL BODY: The body and lid of the Shokunin are crafted from two layers of stainless steel sandwiching two inches of glass fiber insulation, making the grill incredibly efficient at holding heat.
  • Page 13 MAIN FIRE GRATE: The main fire grate occupies the lowest fire grate position. It is primarily used for cooking “low and slow” at lower temperatures. The increased distance from the food encourages a more gentle and uniform heat. The main fire grate can be left in position inside the grill even when using the adjustable fire grates above it.
  • Page 14 KalamazooGourmet.com...

  • Page 15: Initial Setup

    Initial Setup +1.800.868.1699...
  • Page 16 Initial Setup The Shokunin Kamado Grill arrives fully assembled. The ash pan, fire grates and grill grates simply need to be placed in their positions inside the grill. ƒ Remove all protective film and packing materials. ƒ Wipe down and/or wash the interior of the grill and the internal parts with water and mild dish soap before first use.
  • Page 17 +1.800.868.1699...
  • Page 18 KalamazooGourmet.com...

  • Page 19: Operation And Lighting

    Operating Instructions +1.800.868.1699...
  • Page 20 (where there is no fire below), close the lid, and coast to the desired doneness. We flip and rearrange the steaks every 5 minutes during this portion of the cook. NOTE: Kalamazoo strongly recommends cooking with all-natural hardwood lump charcoal rather than briquettes. KalamazooGourmet.com...
  • Page 21 Lighting the Fire Once the fire grates have been configured for your cook, flip up your cooking grates and load the charcoal in the desired position. We recommend loading meaningfully more charcoal than you are likely to consume during the cook. This leads to the most efficient and effective burning of the charcoal. When you close the control vents and lid at the conclusion of cooking, the fire will die, and excess charcoal will be leftover for use in the next cook.
  • Page 22 Getting to the Right Temperature The temperature inside the grill is controlled be restricting the air to reduce the combustion. It is very important to monitor the grill temperature as the fire is getting started because the temperature can escalate quickly.
  • Page 23 Using the Crossflow Vent System The Shokunin Kamado Grill is engineered with a unique crossflow vent system that is designed to draw the heat and smoke across your food when using offset fire cooking techniques. The system takes advantage of the grill’s rectangular shape and helps expand the cooking versatility.
  • Page 24 For Barbecue (225° to 300°F) 100% 100% Loading the Charcoal Load a generous amount of charcoal (optionally mixed with hardwood chunks for added smoke flavor) onto the main fire grate in the lowest position. Light the fire at a single point on the top center of the charcoal.
  • Page 25 For Offset Fire Roasting (350° to 500°F) 100% 100% Loading the Charcoal Load a generous amount of charcoal onto the left or right half of the fire grates positioned in the middle (roasting) position. For this example, we will build the fire on the left side. Light the fire in one or two points on the top of the charcoal.
  • Page 26 For Grilling and Searing (500° to 750°F) 100% 100% Loading the Charcoal Load a generous amount of charcoal onto the fire grates positioned in the middle (roasting) or upper (searing) position. Light the fire in two or three points on the top of the charcoal. U P P E R ( E X H A U S T ) During Startup L O W E R ( S U P P L Y )
  • Page 27 Using the Tilting Grate System In our effort to design the ultimate kamado-style grill we wanted to make it as convenient as possible to load the grill and to clean it. The cooking grates and fire grates all tilt up out of the way to give you clear access to each level when configuring your fire grates, loading your charcoal, lighting the grill or removing the ash pan for cleaning.
  • Page 28 KalamazooGourmet.com...

  • Page 29: Dimensions And Clearances

    Dimensions and Clearances +1.800.868.1699...
  • Page 30 Clearances to Combustible Surfaces This grill is for outdoor use only. „ Do not use beneath an unprotected overhead combustible structure. „ Minimum clearance between sides/back of unit and any combustible construction is 24 inches. „ Never locate the grill in a building, breezeway, shed or other such enclosed areas. 26 1/8"...
  • Page 31 65" [1651mm] 36 1/4" [921mm] 26 1/8" 663mm 9 3/4" 6 5/8" 32 1/8" 816mm [247mm] 27 5/8" 702mm [170mm] +1.800.868.1699...
  • Page 32 KalamazooGourmet.com...

  • Page 33: Product Care

    Product Care +1.800.868.1699...
  • Page 34 The grates are best cleaned for each cooking session when they are hot. Kalamazoo Outdoor Gourmet recommends using the Great Scrape tool, or a grill brush made from brass or stainless steel. The cooking grates should be removed for periodic degreasing and deep cleaning.
  • Page 35 Cleaning Inside the Grill: The ash pan should be emptied frequently (after at least every sixth time the grill is used). Wait at least 24 hours after the fire has been snuffed before cleaning the inside of the grill. The insulation on the Shokunin is so efficient that it will remain hot inside for many hours.
  • Page 36 KalamazooGourmet.com...

  • Page 37: Packing List

    Packing List +1.800.868.1699...
  • Page 38 Packing List Please ensure you have all of these parts before discarding any packaging. Shokunin Kamado Grill (1) Cooking Grates (2) Adjustable Fire Grates (2) Main Fire Grate (1) Ash Pan (1) Fire Grate Fences (2) Grate Lifting Tool (1) KalamazooGourmet.com...
  • Page 39 +1.800.868.1699...
  • Page 40 KalamazooGourmet.com...

  • Page 41: About Kalamazoo Outdoor Gourmet

    Kalamazoo’s equipment is still built by hand with the same dedication to quality and craftsmanship. We build it to order, and we ship directly from our factory in Kalamazoo, Michigan to homes all over the globe. When each grill has been through the process of cutting, forming, welding, finishing, assembly and testing, it is signed by the people who made it with their own hands.
  • Page 42 Gourmet is always focused on product improvement, we reserve the right to make changes at any time. This includes all specifications of the product. © 2019 Kalamazoo Outdoor Gourmet, LLC. Not to be reproduced wholly or in part without specific written permission from Kalamazoo Outdoor Gourmet, LLC.
  • Page 43 +1.800.868.1699...
  • Page 44 KalamazooGourmet.com...
