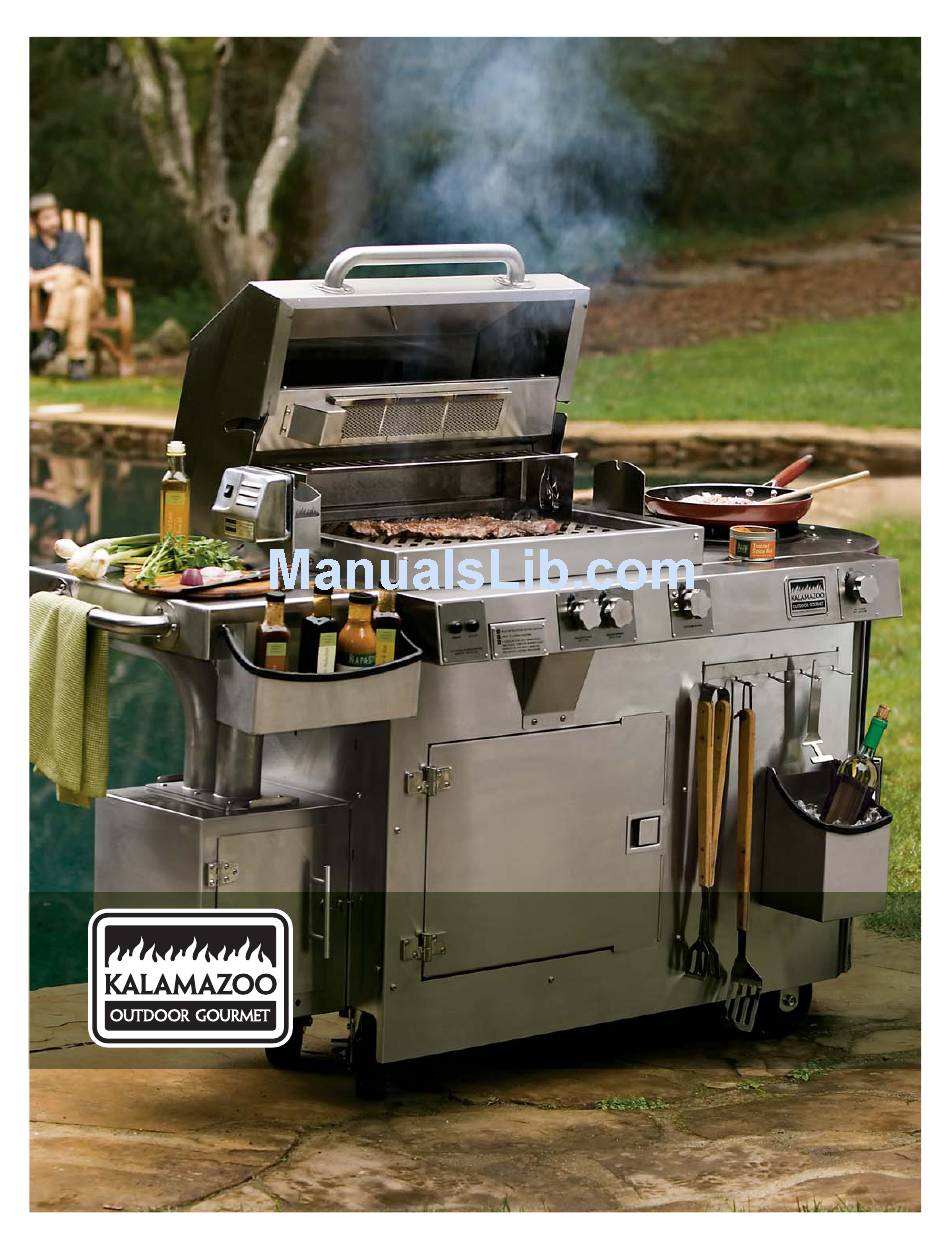

- Page 1 450 & 900 Series Grills User Manual January 1, 2008 www.KalamazooGourmet.com...
-
Page 2: Table Of Contents
TURN OFF INSTRUCTIONS INSTRUCTIONS AND WARNINGS FOR OPTIONAL SMOKER BOX SMOKER TRAY INSTRUCTIONS ROTISSERIE INSTRUCTIONS SEARING BURNER INSTRUCTIONS COOKING WITH YOUR KALAMAZOO OUTDOOR GOURMET GRILL OPTIONS SAMPLE RECIPE A NOTE FROM THE DESIGNER KALAMAZOO OUTDOOR GOURMET LIMITED WARRANTY PRODUCT REGISTRATION INFORMATION... -
Page 3: Information For The New Owner
Kalamazoo Outdoor Gourmet™ grill. When properly cared for, Kalamazoo Outdoor Gourmet products will give safe, reliable service for many years. However, extreme care must be used since the grill produces intense heat and can increase accident potential. When using this grill, basic safety practices must be followed. -
Page 4: General Safety Precautions
• Clean the tubes completely if you find any such obstructions. • Do not operate the Kalamazoo Outdoor Gourmet grill if there is a gas leak present. Do not use a flame to check for gas leaks. • Do not store cover or anything flammable on or in the storage area under the grill. -
Page 5: General Instructions
National Fuel Gas Code: ANSI Z 223.1, or CAN/CGA-B149.1, National Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. The regulator supplied with the Kalamazoo Outdoor Gourmet grill must be used. This regulator is set for 11 inches of water column (pressure). -
Page 6: Safe Handling Tips For Lp Gas
LP tank in a car on a hot day). • The Kalamazoo Outdoor Gourmet grill requires that the LP cylinder be 20-lb. Size (18 ¼ inches high, 12 ¼ inches in diameter). -
Page 7: Refilling The Lp Tank
WARNING: We recommend that a qualified attendant at an authorized LP gas dealer fill your LP tank. CAUTION: If you exchange your LP tank, make sure you get a similar tank in return. Verify that the new tank has a similar valve connection. Kalamazoo Outdoor Gourmet 1.800.868.1699 ™ www.KalamazooGourmet.com... -
Page 8: Connecting Lp Tank/ Leak Testing
For free-standing models, open right end door, and set the tank on bottom shelf. Kalamazoo 450 Series Grills provide two slots to hold the tank in place. See first diagram below. Kalamazoo 900 Series Grills provide a cutout in the floor for the tank to rest. - Page 9 1/2 psi (3.5 kPa). NOTE: Kalamazoo Outdoor Gourmet is not responsible for improper tank hookup. Kalamazoo Outdoor Gourmet 1.800.868.1699...
-
Page 10: General Maintenance
Keep the ventilation openings on back panel of the LP Tank enclosure free and clear from debris at all times. PERIODIC CLEANING CAUTION: Turn the Kalamazoo Outdoor Gourmet grill OFF and wait for it to cool before cleaning. Every Kalamazoo Outdoor Gourmet grill has all stainless steel surfaces, inside and out. -
Page 11: Spider Alert
Kalamazoo Outdoor Gourmet 1.800.868.1699 www.KalamazooGourmet.com ™... -
Page 12: Maintenance Troubleshooting
Is there no clicking noise when the igniter button is pressed? Igniters click, but the igniter probes are not sparking. If problems cannot be corrected by using these methods, please contact Kalamazoo Outdoor Gourmet Customer Service at 800-868-1699. Kalamazoo Outdoor Gourmet RESOLUTION Refill LP tank. -
Page 13: Storage
• Never store a spare LP tank under or near the Kalamazoo Outdoor Gourmet grill. • If the Kalamazoo Outdoor Gourmet grill is stored for a long period of time it should be checked for gas leaks and obstructions in the burner tubes before using. (See Section “General Maintenance”) -
Page 14: The Kalamazoo 450 Series
Our design engineers were given the mission to build a grill, which held our commitment to simplicity in design and durability in construction while also providing an intimate relationship between chef and fire. A serious grill with style and value is at the heart of the Kalamazoo 450 Series. -
Page 15: The Kalamazoo 900 Series
The Kalamazoo 900 Series are grills for those who entertain medium to large groups but who cook for the family as well. The Kalamazoo 900 Series grill is three times the size of the Kalamazoo 450 Series. We offer the Kalamazoo 900 Series with our patented hybrid... -
Page 16: Operating Instructions
CERAMIC TILES AND CERAMIC TILE BRACKETS (For gas models only) Place ceramic holders and ceramic tiles into grill hopper as shown below. Three sets are included with the Kalamazoo 450 Series Gas Grills. Six sets are included with the Kalamazoo 900 Series Gas Grills. - Page 17 WARNING: Do not use spray can with aerosol to season your cooking surface. COOKING SURFACE TOOL A cooking surface tool is included with all Kalamazoo Outdoor Gourmet grills that include either a 3/16” or 1/4” stainless steel cooking surface. Use the tool to lift your cooking surface off the grill as pictured above.
- Page 18 WARMING RACK MAIN BURNER DRIP PAN Each Kalamazoo Outdoor Gourmet grill comes with a disposable Main Burner Drip Pan to be placed inside the grill to collect drippings. See diagram above for placement. Check the Drip Pan before each use. Remove excess grease to avoid a grease fire in the Drip Pan.
- Page 19 SIDE BURNER COVER (Side Burner Models Only) A side burner cover is supplied with all Kalamazoo Outdoor Gourmet grills that include a side burner. Place side burner cover over side burner when not in use.
- Page 20 A modular Ash Guard tray accessorizes the Hybrid Grills. The modular tabs fit into the slots in the front panel of your grill, just above the control panel. Note: tabs fit into the slots with the large flange facing up. The Ash Guard is intended to protect the control panel from loose ashes and embers when the Hybrid Drawer is opened.
-
Page 21: Control Knobs
(i.e. below “LOW” setting). Flame may be off, but gas will continue to flow. Kalamazoo Outdoor Gourmet All Kalamazoo Outdoor Gourmet grills feature our cast stainless steel control knobs. One knob is provided for each independently controlled burner. To install knobs, simply line up the flat edge of the knob base with the flat edge of the valve stem and gently push into place. -
Page 22: Lighting Instructions
WARNING: Check hose before each use of grill for wear, nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the Kalamazoo Outdoor Gourmet grill. Replace using only the Kalamazoo Outdoor Gourmet authorized replacement manifold assembly. -
Page 23: Main Burner (Manual Lighting)
CAUTION: Do not attempt to light side burner using ignition buttons on grill control panel. The side burner on all Kalamazoo Outdoor Gourmet grills has an independent ignition system. • With the control knob in the “OFF” position. Turn gas on at source (LP tank or other). -
Page 24: Hybrid Models (Wood / Charcoal & Gas)
When cooking with charcoal or wood: • Load drawers with charcoal or wood (drawer does not need to be full!) • Too much charcoal will burn too hot – use little until you know your grill! • Push drawers in completely •... -
Page 25: Adjusting The Airflow
ADJUSTING THE AIRFLOW Main Burner adjustment: Main Burner Flame Pattern The Kalamazoo Outdoor Gourmet burners have been factory set for the correct air and gas mixture. Airflow adjust is not necessary for the main burner. The correct flame pattern is shown. -
Page 26: Turn Off Instructions
“snuff” fire from oxygen and it will slowly go out. Do not do this if temperature is above 800 degrees – too much heat will build up below the hood causing possible damage to your grill. Kalamazoo Outdoor Gourmet 1.800.868.1699 www.KalamazooGourmet.com... -
Page 27: Instructions And Warnings For Optional Smoker Box
INSTRUCTIONS AND WARNINGS FOR OPTIONAL SMOKER BOX Your Kalamazoo Outdoor Gourmet grill Smoker Box is a great cooking tool that gives you full command of the smoking process. Rear Smoke Diversion Pipe Cook Box Smoke Diversion Pipe Rear Slide Gate... - Page 28 A special feature of the Kalamazoo Outdoor Gourmet Smoker Box is the water reservoir tray. By filling this tray with water you can smoke your food with “wet smoke” creating a finished product that is both smoky and juicy.
-
Page 29: Smoker Tray Instructions
SMOKER TRAY INSTRUCTIONS Shown with no covers A smoker tray comes standard on all Kalamazoo 450 and Kalamazoo 900 Series gas grills. When not in use, the Smoker Tray should remain in place while cooking. The Smoker Tray may be removed will grilling to allow for more even heat distribution. -
Page 30: Rotisserie Instructions
(available on most models) and the main grill burner or the searing burner at the same time, as the grill will get too hot. A single one of those burners should produce sufficient heat to cook the food on the spit rod. - Page 31 Kalamazoo Outdoor Gourmet 1.800.868.1699 www.KalamazooGourmet.com ™...
- Page 32 Press clip down to hold motor onto bracket Rotisserie motor assembly complete Plug AC adapter into motor Square rotisserie slot inside grill Square end of rotisserie basket this end Curved groove end rests on rollers opposite side Completed rotisserie system Kalamazoo Outdoor Gourmet 1.800.868.1699 www.KalamazooGourmet.com ™...
-
Page 33: Searing Burner Instructions
CAUTION: Leave your grill hood open when operating your searing burner except in cases of inclement weather or in high wind conditions. Do not leave the grill unattended when using your searing burner. Do not allow the internal temperature of the grill to exceed 900 degrees. -
Page 34: Cooking With Your Kalamazoo Outdoor Gourmet Grill
COOKING WITH YOUR KALAMAZOO OUTDOOR GOURMET GRILL The Kalamazoo Outdoor Gourmet grill should not be moved when operating or when hot. You can adjust flame for left and right burners individually as desired. Preheating Gas Models After lighting, close lid and turn all burners to “High.” Preheating to between 500 and 550°F (260 and 290°C) will take 5 to 10 minutes depending on conditions such... - Page 35 • When reheating fully cooked meats like hot dogs, grill them to 165°F, or until steaming hot. • After cooking meat and poultry on the grill, at home or on a picnic, keep it hot until served. Outdoors, keep the meats hot by setting them to the side of the grill rack or on the warming rack, not directly over the coals where they would eventually overcook.
-
Page 36: Options
OPTIONS There are many accessories available for your Kalamazoo Outdoor Gourmet grill. Mix and match any or all of these to customize your grill. To view these items visit our website at www.kalamazoogourmet.com. GRILL COVER Most Kalamazoo Outdoor Gourmet grill models have a custom grill cover available to protect your grill from the elements. - Page 37 The Utensil Rack utilizes the Kalamazoo Outdoor Gourmet grill’s exclusive modular system. WASTEBASKET This beautiful stainless steel wastebasket utilizes the Kalamazoo Outdoor Gourmet grill’s exclusive modular system. ICE/WINE BUCKET This stainless steel bucket is the perfect size for keeping your favorite vintage on ice.
- Page 38 Kalamazoo Outdoor Gourmet grill’s exclusive modular system. CUSTOM GRILL SURFACE moderate the heat and also to keep smaller cuts of vegetables from falling through the grill surface; FISH, with very narrow curves that allow just enough heat to come through to cook your fish without allowing your fillet to break apart and fall through the grill surface;...
-
Page 39: Sample Recipe
Place dry wood chips in the bottom of your grill's smoking tray and then layer the soaked chips on top of the dry chips. Put the smoker tray in the grill about 15 minutes before you will begin grilling the venison, as the grill heats up. If you do not have a smoking tray on your grill, you can make a smoking pouch. -
Page 40: A Note From The Designer
On behalf of the entire Kalamazoo Outdoor Gourmet team, I wish you and your family the very best in backyard entertaining. Great food…family…... -
Page 41: Kalamazoo Outdoor Gourmet Limited Warranty
Or you may ship us the old part, and we will then ship the replacement part at no Shipping charge. Charges for the old/replaced part are refunded to you at the same rate as is calculated for Kalamazoo Outdoor Gourmet to ship the new part. -
Page 42: Product Registration Information
PRODUCT REGISTRATION IMPORTANT: YOU MUST REGISTER YOUR PRODUCT WITH KALAMAZOO OUTDOOR GOURMET IN ORDER TO ACTIVATE YOUR WARRANTY. YOU MAY DO SO BY CALLING 1-800-868-1699 AND GIVING US THE INFORMATION BELOW OR EMAILING THE INFORMATION TO CUSTOMERSERVICE@KALAMAZOOGOURMET.COM. Please keep a copy of this information along with your purchase receipt for your records. - Page 43 NOTES Kalamazoo Outdoor Gourmet 1.800.868.1699 www.KalamazooGourmet.com ™...
