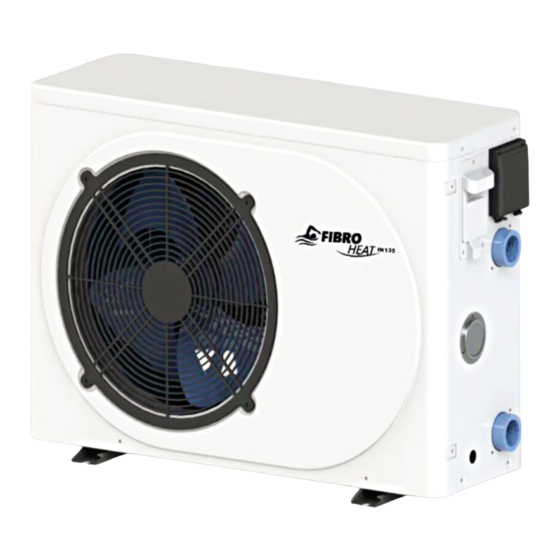

Summary of Contents for FibroPool FH135
- Page 1 V.23.02 FIBROPOOL USA...
- Page 2 If the unit is installed in a closed area or limited space, please consider the size of room and ventilation to prevent suffocation caused by refrigerant leakage. Do NOT try to lift the unit by yourself. The FH135 weighs about 100 lbs. It is a 2 person ●...
-
Page 3: System Specifications
FH 135 is engineered and optimized based on US Dept Energy recommendations. We do not calibrate or size the heaters above 82'F pool water temperatures. 55 dB noise at 10 feet, complies with Directives EN ISO 3741 and EN ISO 354 V.23.02 FIBROPOOL USA... - Page 4 Unit Dimensions Model: FH 135 Dimensions are in Inches V.23.02 FIBROPOOL USA...
-
Page 5: Exploded View
Grill Panel Baffle plate Base Frame Water flow switch Corner Bracket Titanium heat exchanger Fan Motor Protective grill Corner panel Fan Bracket Protection grill Flip Cover Evaporator coil Terminal Cover Electrical box Cooper manifold Top panel Compressor V.23.02 FIBROPOOL USA... -
Page 6: Installation Instructions
Keep at least 12 inches of clearance on the two short sides and the long radiator side. Keep at least 3 feet of clearance on the fan side of the heater. Keep the unit as far as possible out of the reach of children and within 25 feet of the pool. V.23.02 FIBROPOOL USA... - Page 7 · The old system BYPASS path usually consists of 3 valves. The New FIBROPOOL BYPASS VALVE is just 1 valve. This makes it possible to adjust water flow passing through the heat pump.
- Page 8 1. Installation of a Single Heater 2. Parallel Installation for 2 Units Throttled bypass valve, 50% open V.23.02 FIBROPOOL USA...
-
Page 9: Pipe Connections
11. Be sure that WATER IN pipe is connected to the BOTTOM, and WATER OUT pipe is on TOP. Reversal will result in flow error code PL Hard PVC Adapters Corrugated Filter Hose Adapters Intex Integrated hose adapters V.23.02 FIBROPOOL USA... -
Page 10: Electrical Connections
Step 3: Plug in the power cord of the heater, and reset the GFCI, by pushing the TEST and RESET buttons. ➢ FH 135 requires equipotential bonding. Please connect an #8 AWG bare copper wire to a ground rod. This is required for safety and corrosion prevention of the heater’s metal chassis. V.23.02 FIBROPOOL USA... -
Page 11: Running Test
The Pressure gauge is oil filled with an air bubble. Do not mistake it for an oil or water leak. 1. Control Function Description “ON/OFF” key：Turn ON/OFF the heat pump. ➢ “MODE” key：Press MODE key to select, while the heater is RUNNING. ➢ AUTO mode – Triangle Sign COOLING mode – Snowflake sign V.23.02 FIBROPOOL USA... - Page 12 ADJUSTED. SIMPLY PRESS MODE TO GO TO HEATING, AND USE THE UP AND DOWN ARROWS TO ADJUST. ADJUSTING OTHER SETTINGS CAN AFFECT THE PERFORMANCE AND OPERATION OF THE HEATER. WE DO NOT RECOMMEND THAT HOMEOWNERS CHANGE ANY OTHER OPERATIONAL SETTINGS. V.23.02 FIBROPOOL USA...
-
Page 13: System Parameters
SETTINGS- RESET BUTTON. THE ONLY OPTION IS TO REPROGRAM THESE FUNCTIONS INDIVIDUALLY OR REPLACE THE MOTHERBOARD. IN MOST CASES, THE ERROR/ PROBLEM WILL GO AWAY BY RESTARTING THE SYSTEM. TURN OFF THE BREAKER FOR 45 SECONDS AND TURN IT BACK ON. THIS WILL ERASE THE SENSORS' MEMORY. V.23.02 FIBROPOOL USA... - Page 14 Be sure that there is no error messages on the screen. This may require a phone call to us at Fibropool Co. 1.228.313.7874 •...
- Page 15 * Replace the pressure sw itch * Replace the Motherboard *Digital controller Failure *Communication line is Communication f ailure disconnected, damaged or *Replace the Digital Controller unplugged f rom the motherboard *Repair/ reinstall/ plug the w ire. *Motherboard Failure *Replace the Motherboard V.23.02 FIBROPOOL USA...
-
Page 16: Maintenance
45 degrees. A shop vac can also be used for this. Winterization: if you want to move the unit indoors, just disconnect everything and • take it into your garage. V.23.02 FIBROPOOL USA... - Page 17 V.23.02 FIBROPOOL USA...
- Page 18 Owner / Installation manual. These documents are furnished with each unit and are available by contacting Fibropool Co. LLC The liability of Fibropool Co. LLC. shall not exceed the repair or the replacement of defective parts under the Fibropool Service Center.
