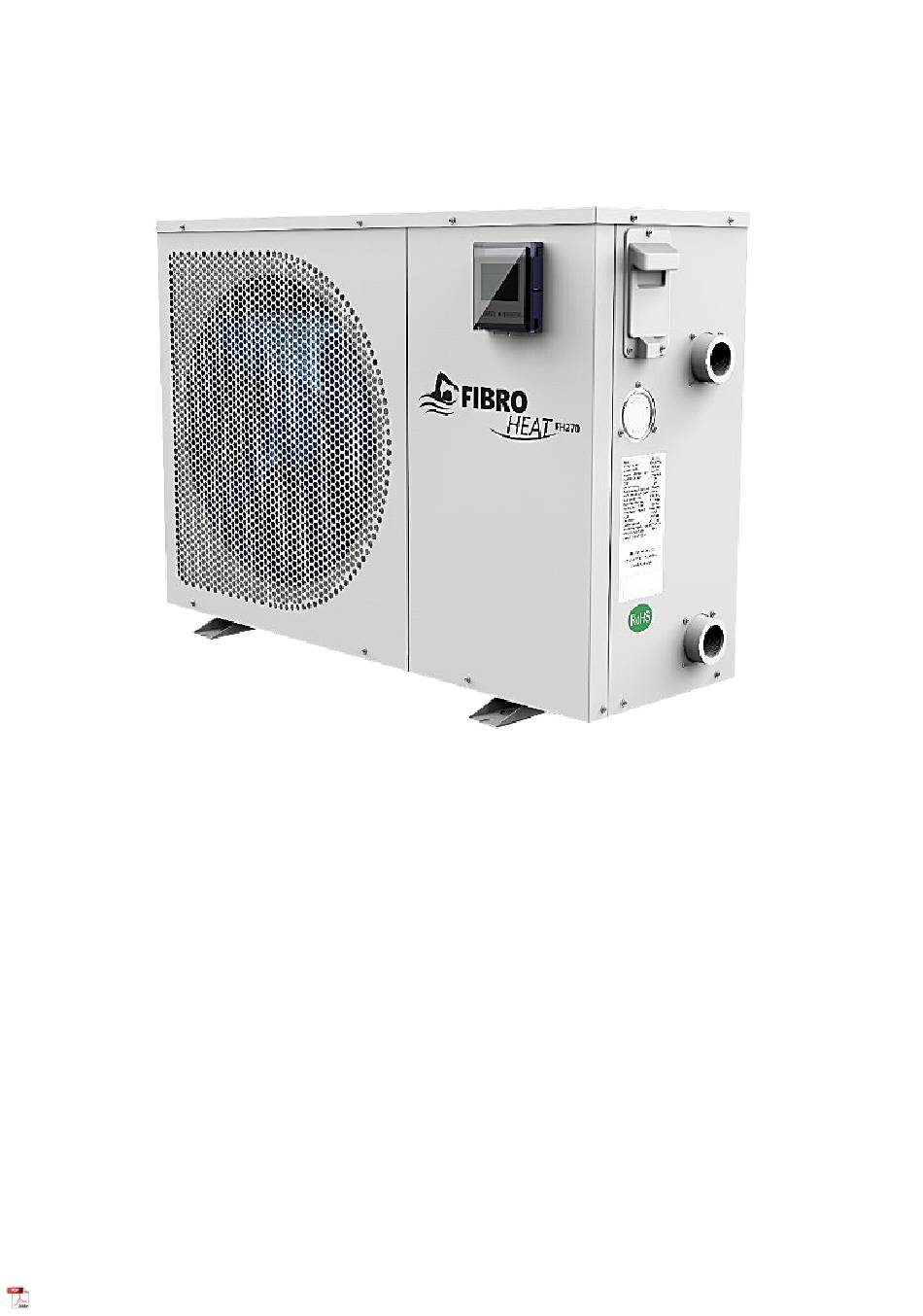

- Page 1 FIBROPOOL FH 270 POOL HEAT PUMP Installation & Instruction Manual V-2105 Fibropool Co LLC, Ms USA...
- Page 2 Be sure to Install a BONDING wire to a ground rod, using #8 AWG Bare Copper Wire ● Fibropool FH 270 is weatherproof and designed to be outdoors. But is is not designed to be ● below eaves of the roof, where water pours onto it. Please use common sense in choosing a location.
-
Page 3: System Specifications
Ratings based un US Dept Of Energy guidelines, 82-82-82 / 80-80-80/ 78-78-78 US Dept Of Energy recommends pool water temperatures 78, 80, or 82 Degrees. Noise at 4 feet ) comply with Directives EN ISO 3741 and EN ISO 354 V-2105 Fibropool Co LLC, Ms USA... - Page 4 Unit Dimensions Model: Fh 270 Unit:in V-2105 Fibropool Co LLC, Ms USA...
-
Page 5: Exploded View
Chassis component Water flow switch Silencer cotton Stand pillar Titanium heat exchanger Motor Protection net 1 Right plate Motor support Protection net 2 Controller box Evaporator Handle Electrical box Cooper pipe component Top cover Compressor V-2105 Fibropool Co LLC, Ms USA... -
Page 6: Installation Instructions
Keep at least 12 inches of clearance on the two short sides and the long radiator side. Keep at least 3 feet of clearance on the fan side of the heater. Keep the unit as far as possible away from children's reach and within 25 feet of the pool. V-2105 Fibropool Co LLC, Ms USA... - Page 7 ( EE-3, PL, EE1) are present. This will give enough water to the heater, and not restrict your flow. The old system BYPASS path usually consists of 3 valves. The New FIBROPOOL BY PASS ·...
- Page 8 1. Installation of a Single Heater 2. Parallel Installation for 2 Units Throttled by pas valve, 50% open V-2105 Fibropool Co LLC, Ms USA...
-
Page 9: Pipe Connections
PIPE CONNECTIONS 1. FH 270 Features 1 1/2” SAE machine threads. They are NOT the typical pipe threads. You can use the included unionized fittings with o rings, WITHOUT thread tape, or you can use the conical hose adapters, WITH thread tape. -
Page 10: Electrical Connections
FH 270 does NOT have a NEUTRAL connection Therefore, Do NOT use a GFCI breaker. ➢ FH 270 requires equipotential bonding. Please connect an #8 AWG bare copper wire to a ground rod. This is required for safety and corrosion prevention of the heaters metal chassis. -
Page 11: Running Test
In and out temperatures maybe very close or even the same, but this depends on many factors including a strong pump pushing the water too fast to register. Real indication of heating is cold air and condensation. V-2105 Fibropool Co LLC, Ms USA... - Page 12 MODE TO GO TO HEATING, USE THE ARROWS UP AND DOWN . THATS ALL THE FACTORY SETTINGS ON THE SYSTEM ARE DELICATE. AND THERE IS NO FACTORY RESET OPTION. THEREFORE, WE DO NOT RECOMMEND A HOMEOWNER TO ATTEMPT TO CHANGE OPERATIONAL SETTINGS. V-2105 Fibropool Co LLC, Ms USA...
-
Page 13: System Parameters
REPROGRAM THESE FUNCTIONS INDIVIDUALLY OR REPLACE THE MOTHERBOARD. IN MOST CASES, THE ERROR/ PROBLEM WILL GO AWAY BY RESTARTING THE SYSTEM. JUST TURN OFF THE BREAKER FOR 45 SEONDS AND TURN IT BACK ON. THIS WILL ERASE THE SENSORS' MEMORIES.************************************************************* V-2105 Fibropool Co LLC, Ms USA... - Page 14 Be sure that there is no error messages on the screen. This may require a phone call to us at Fibropool Co. 1.228.313.7874 •...
-
Page 15: Error Codes
* Replace the Motherboard *Digital controller Failure *Communication line is Communication failure disconnected, damaged or *Replace the Digital Controller unplugged f rom the motherboard *Repair/ reinstall/ plug the w ire. *Motherboard Failure *Replace the Motherboard V-2105 Fibropool Co LLC, Ms USA... -
Page 16: Maintenance
45 degrees, or using a shop vac. Winterization: if you want to move the unit indoors, just disconnect everything and • take it into your garage. V-2105 Fibropool Co LLC, Ms USA... - Page 17 V-2105 Fibropool Co LLC, Ms USA...
- Page 18 V-2105 Fibropool Co LLC, Ms USA...
