Owner's Guide
and
Installation Instructions
®

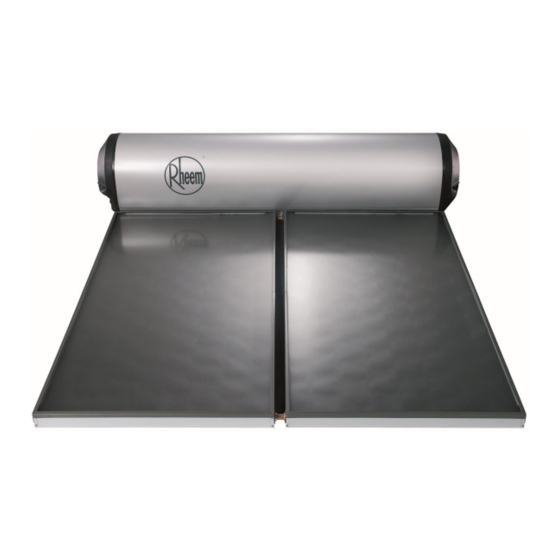

Solar Hiline
Water Heater
52D Series Open Circuit
WARNING: Plumber – Be Aware
Use copper pipe ONLY. Plastic pipe MUST NOT be used.
It is a requirement of a solar water heater installation that all pipe work be in copper
and not plastic, due to the effects of high water temperatures and pressures.
This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Hiline 52D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rheem Solar Hiline 52D Series

Summary of Contents for Rheem Solar Hiline 52D Series

  • Page 1 Owner’s Guide Installation Instructions ® Solar Hiline Water Heater 52D Series Open Circuit WARNING: Plumber – Be Aware Use copper pipe ONLY. Plastic pipe MUST NOT be used. It is a requirement of a solar water heater installation that all pipe work be in copper and not plastic, due to the effects of high water temperatures and pressures.
