Owner's Guide
and
Installation Instructions

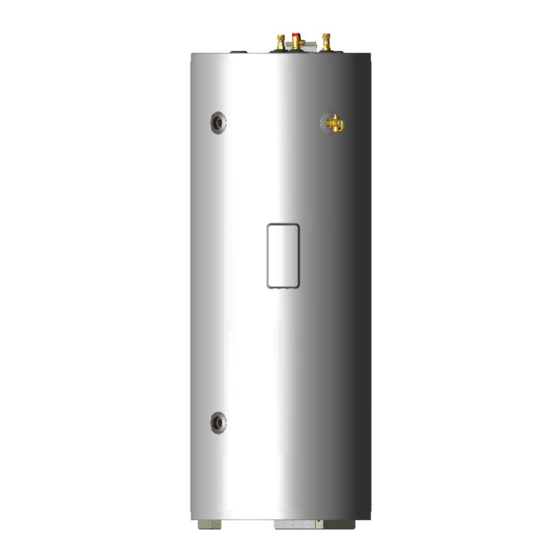

Solar Premier Loline
Electric Boost Water Heater
WARNING: Plumber – Be Aware
Use copper pipe ONLY. Plastic pipe MUST NOT be used.
It is a requirement of a solar water heater installation that all pipe work be in
copper and not plastic, due to the effects of high water temperatures.
This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solar Premier Loline and is the answer not in the manual?

Questions and answers

Related Manuals for Rheem Solar Premier Loline

Summary of Contents for Rheem Solar Premier Loline

  • Page 1 Owner’s Guide Installation Instructions Solar Premier Loline Electric Boost Water Heater WARNING: Plumber – Be Aware Use copper pipe ONLY. Plastic pipe MUST NOT be used. It is a requirement of a solar water heater installation that all pipe work be in copper and not plastic, due to the effects of high water temperatures.
  • Page 2 Rheem Australia Pty Ltd. TRADE MARKS ® Registered trademark of Rheem Australia Pty Ltd. ™ Trademark of Rheem Australia Pty Ltd. Note: Every care has been taken to ensure accuracy in preparation of this publication. No liability can be accepted for any consequences, which may arise as a result of its application.

  • Page 3: Table Of Contents

    CONTENTS HOUSEHOLDER – We recommend you read pages 4 to 17. The other pages are intended for the installer but may be of interest. About Your Water Heater ......................4 Regular Care ..........................10 Water Supplies ........................... 12 Save A Service Call ........................15 Installation –...

  • Page 4: About Your Water Heater

    The electric boosted solar storage tank is suitable for installation either outdoor or indoor and with either Rheem S200, T200, HBT200 or TBT200 solar collectors. The system is suitable for installation in areas subject to frost or freeze conditions.
  • Page 5 The closed circuit fluid is non-toxic and not hazardous to health. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 6 If the electrical conduit to the solar storage tank is damaged, it must be replaced by a qualified person in order to avoid a hazard. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 7 ABOUT YOUR WATER HEATER BOOSTER CONTROL An isolating switch is installed in the electrical meter box for the solar storage tank. This should be left switched on to allow the booster heating unit to operate if required. The booster heating unit is for heating the water at times of low solar energy gain, such as during very cloudy or rainy weather, or during the colder months.
  • Page 8 The system has NO WARRANTY for freeze damage if there is not a continuous fall in the solar hot and solar cold pipes, or they are not insulated in accordance with the installation instructions, or the closed “Terms of the Rheem Warranty” “Pipe...
  • Page 9 ABOUT YOUR WATER HEATER TO TURN OFF THE WATER HEATER If you plan to be away from home for a few nights, we suggest you leave the water heater switched on. If it is necessary to turn off the water heater: Switch off the electrical supply at the isolating switch to the solar storage tank.

  • Page 10: Regular Care

    Note: The five year service and routine replacement of any components, such as the anodes and relief valves, are not included in the Rheem warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
  • Page 11 Have any trees trimmed which may shade the solar collectors. Rheem solar collectors have passed the AS/NZS 2712 requirements for resistance to hailstone damage, so it is not normally necessary to fit a guard to a collector. Stone Guards are available to provide a level of protection to the collectors against vandalism or accidental damage.

  • Page 12: Water Supplies

    Rheem warranty to apply. ANODE The vitreous enamel lined cylinder of the water heater is only covered by the Rheem warranty when the total dissolved solids (TDS) content in the water is less than 2500 mg/L and when the correct colour coded anode is used.
  • Page 13 Where the saturation index exceeds +0.40, the water is very scaling. An expansion control valve must be fitted on the cold water line after the non-return valve to protect and for the Rheem warranty to apply to the temperature pressure relief valve and water heater cylinder.
  • Page 14 The water heater, solar collectors and their components are not suitable for certain water chemistries. Those chemistries are listed below. If the water heater is connected at any time to a water supply with the following water chemistry, the Rheem warranty will not cover any resultant faults on the components listed below: Water Chemistry Component Total Dissolved Solids (TDS) >...

  • Page 15: Save A Service Call

    If the green LED remains off or the red LED recommences to flash, then count the number of flashes and phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection. Insufficient sunlight Insufficient sunlight due to cloudy weather during hotter months or low solar energy contribution in colder months may mean the booster water heater operates more often.
  • Page 16 Heavy flows of hot water until the water heater is cold - then stops until water reheats The water heater must be switched off at the isolating switch or switchboard. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 17 SAVE A SERVICE CALL COLLECTOR GLASS The Rheem warranty DOES NOT cover breakage of solar collector glass. Check your household insurance policy covers collector glass breakage. Warning: No attempt should be made to remove or replace broken collector glass. The collector glass is not offered as a replacement part. Should the solar collector require replacement, contact Rheem Service or their nearest Accredited Service Agent.

  • Page 18: Installation - Solar Storage Tank

    INSTALLATION – SOLAR STORAGE TANK THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING. The system is suitable for installation with Rheem S200, T200, HBT200 or TBT200 solar collectors. IMPORTANT NOTES Working on roofs is and should always be considered a hazardous activity, particularly early in the morning, late in the evening, when the roof is wet or during and after periods of rain.
  • Page 19 INSTALLATION – SOLAR STORAGE TANK WATER HEATER APPLICATION This water heater is designed for use in a single family domestic dwelling for the purpose of heating potable water. Its use in an application other than this may shorten its life. If this water heater is to be used where an uninterrupted hot water supply is necessary for the application or business, then there should be redundancy within the hot water system design.
  • Page 20 Damage to the water heater caused by freezing of the pipe work to or from the water heater is not covered under the Rheem warranty. Refer to AS/NZS 3500.4 for precautions to be taken for installations in frost prone areas.
  • Page 21 INSTALLATION – SOLAR STORAGE TANK RAIN WATER TANK If the solar collectors and solar pipe work are to be installed on a section of roof which is part of a rain water runoff collection system, then it is recommended this section of roof and its gutter be isolated from the rain water collection system.
  • Page 22 INSTALLATION – SOLAR STORAGE TANK HOT WATER DELIVERY This water heater can deliver water at temperatures which can cause scalding. It is necessary and we recommend that a temperature limiting device be fitted between the water heater and the hot water outlets in any ablution area such as a bathroom or ensuite, to reduce the risk of scalding. The installing plumber may have a legal obligation to ensure the installation of this water heater meets the delivery water temperature requirements of AS/NZS 3500.4 so that scalding water temperatures are not delivered to a bathroom, ensuite or other ablution area.
  • Page 23 INSTALLATION – SOLAR STORAGE TANK CIRCULATED HOT WATER FLOW AND RETURN SYSTEM A solar water heater should not be installed as part of a circulated hot water flow and return system in a building. The benefits of solar gain will be significantly reduced and energy gained from the sun lost through the pipe work.
  • Page 24 29. ANODE The vitreous enamel lined cylinder of the water heater is only covered by the Rheem warranty when the total dissolved solids (TDS) content in the water is less than 2500 mg/L and when the correct colour coded anode is used.
  • Page 25 INSTALLATION – SOLAR STORAGE TANK DIMENSIONS AND TECHNICAL DATA Electric Boosted Solar Drain Back Storage Tank Model 591 270 Capacity 270 litres Mass 146 kg (empty) 416 kg (full) Dimensions Technical data is subject to change.
  • Page 26 INSTALLATION – SOLAR STORAGE TANK TYPICAL INSTALLATION – OUTDOOR LOCATION TYPICAL INSTALLATION – INDOOR LOCATION...

  • Page 27: Installation - Solar Collectors

    INSTALLATION – SOLAR COLLECTORS SOLAR COLLECTOR LOCATION Consideration must be given to the position of the solar collectors in relation to the solar storage tank. There are limitations on both the maximum length of the solar hot and solar cold pipes and the maximum height “Solar Storage Tank Location”...
  • Page 28 INSTALLATION – SOLAR COLLECTORS LATITUDE OF SOME AUSTRALIAN CITIES Adelaide 35°S Cairns 17°S Hobart 42°S Port Hedland 20°S Alice Springs 24°S Canberra 35°S Mildura 34°S Rockhampton 24°S Brisbane 27°S Darwin 12°S Melbourne 38°S Sydney 34°S Broken Hill 31°S Geraldton 28°S Perth 32°S Townsville...
  • Page 29 INSTALLATION – SOLAR COLLECTORS WARNING: Plumber – Be Aware The solar hot and solar cold pipes between the solar storage tank and the solar collectors MUST BE of copper. All compression fittings must use brass or copper olives. The full length of the solar hot and solar cold pipes MUST BE insulated. The insulation must: ...
  • Page 30 INSTALLATION – SOLAR COLLECTORS Maximum Height To Collectors The solar collectors must be the highest point of the system. The maximum height of the solar installation, from the base of the solar storage tank to the top of the solar collectors, is 9 m. The pump supplied with the solar storage tank will not circulate closed circuit fluid through heights greater than 9 m and solar gain will not be achieved.
  • Page 31 INSTALLATION – SOLAR COLLECTORS Pressure Testing The solar water heater, including the collector circuit and solar collectors, is to be isolated during the testing and commissioning of the heated water reticulation system in a building, in accordance with Clause 11.1 and 11.3 (a) of AS/NZS 3500.4.

  • Page 32: Connections - Plumbing

    CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in accordance with the requirements of the Standard AS/NZS 3500.4, and all local codes and regulatory authority requirements. In New Zealand, the installation must conform with Clause G12 of the New Zealand Building Code. Note: The solar storage tank of a solar water heater should not be installed as part of a circulated hot water flow and return system in a building.
  • Page 33 CONNECTIONS – PLUMBING TEMPERATURE PRESSURE RELIEF VALVE The temperature pressure relief valve is shipped behind the lower front cover of the water heater. The temperature pressure relief valve must be fitted before the water heater is operated. Before fitting the relief valve, make sure the probe has not been bent.
  • Page 34 CONNECTIONS – PLUMBING SOLAR INLET AND OUTLET All pipe work must be cleared of foreign matter before connection and purged before attempting to operate the water heater. All olive compression fittings must use brass or copper olives. Use thread sealing tape or approved thread sealant on all fittings.

  • Page 35: Connections - Electrical

    CONNECTIONS – ELECTRICAL The power supply to the water heater must not be switched on until the solar storage tank is filled with water and a satisfactory megger reading is obtained. Note: AS 3498 requires that a water heater provides the means to inhibit the growth of Legionella bacteria in potable water.
  • Page 36 CONNECTIONS – ELECTRICAL The power supply to the booster heating unit can be either a continuous / time of use or an Extended Off- Peak (overnight and day) power supply and may be controlled by a Timer Control Switch. Discuss the power supply requirements to the booster heating unit with the householder.
  • Page 37 CONNECTIONS – ELECTRICAL BOOSTER CONTROL The isolating switch installed in the electrical meter box for the solar storage tank should be left switched on. Leaving the isolating switch switched on will also provide a sufficient period of time each day for the booster heating unit to operate, if required, to satisfy the requirements of AS 3498.
  • Page 38 For reasons of safety and economy, we advise the thermostat be set at the lowest temperature that will provide sufficient hot water during periods when boosting is required. Rheem recommends the thermostat is set at 60°C to maximise solar contribution. Discuss the thermostat setting requirements with the householder.

  • Page 39: Wiring Diagram

    CONNECTIONS – ELECTRICAL WIRING DIAGRAM Wiring Diagram Wiring Diagram Electric Boosted Closed Circuit Solar Water Heater Robertshaw “ST” Thermostat ric Closed Circuit Solar Water Heater...

  • Page 40: Auxiliary Pump

    AUXILIARY PUMP The solar collectors must be the highest point of the system. The maximum height of the solar installation from the base of the solar storage tank to the top of the solar collectors is 9 m. The pump supplied with the solar storage tank will not circulate closed circuit fluid through heights greater than 9 m and solar gain will not be achieved.
  • Page 41 AUXILIARY PUMP Auxiliary Pump Installation Auxiliary Pump Typical Installation Solar Drain Back...

  • Page 42: Auxiliary Pump

    AUXILIARY PUMP AUXILIARY PUMP – ELECTRICAL CONNECTION The auxiliary pump, if installed, must be wired to the control board. The flexible cord supplied with the pump must be housed in a 20 mm flexible conduit. The flexible conduit should be secured to the insulated pipe work with the cable ties provided, to the side of the solar storage tank using the adhesive backed cable tie mounts and cable ties provided and to the penetration in the solar storage tank jacket using the cable gland provided.

  • Page 43: Commissioning

    COMMISSIONING TO FILL AND TURN ON THE WATER HEATER The power supply to the water heater must not be switched on until the solar storage tank is filled with water. To fill the solar storage tank with water and turn on the water heater: Open all of the hot water taps in the house (don‟t forget the shower).
  • Page 44 COMMISSIONING SOLAR CIRCUIT It is necessary to commission and check the operation of the solar circuit as part of the installation. The water heater is supplied charged with closed circuit fluid. The commissioning procedure includes checking the: circulation of closed circuit fluid through the solar circuit. drain back function of the solar circuit.
  • Page 45 COMMISSIONING Warning: Although non-toxic, the following first aid advice and procedures should be followed if the closed circuit fluid concentrate comes into human contact or is spilt: Swallowed - give milk or water and seek medical attention. Eyes - wash with running water. Skin - remove contaminated clothing and wash skin with water and soap.
  • Page 46 COMMISSIONING Commissioning the Solar Circuit To commission and check the solar circuit: Switch off the electrical supply at the isolating switch to the solar storage tank. If the pump has been operating, wait five minutes to allow the drain back of the closed circuit fluid in the solar circuit.
  • Page 47 COMMISSIONING Disconnect the drain line from the solar circuit relief valve at the top of the solar storage tank. Remove the spring clip from the solar circuit relief valve and remove the valve. Warning: The solar circuit may be under pressure. disconnect Take care when removing the solar circuit relief valve, as drain line...
  • Page 48 COMMISSIONING Check the closed circuit fluid is circulating around the solar circuit. To check circulation:  Listen for the trickling sound of the closed circuit fluid returning into the heat exchanger by placing your ear against the side toward the top of the solar storage tank. If the fluid is circulating around the solar circuit, a trickling sound will be heard as the fluid returns back into the heat exchanger.
  • Page 49 COMMISSIONING Drain Back Function Switch off the electrical supply at the isolating switch to the solar storage tank. The red LED on the solar monitor label will stop flashing. The pump will deactivate. The closed circuit fluid will drain back down to the heat exchanger and the level of the closed circuit fluid in the clear hose will rise.
  • Page 50 COMMISSIONING Closed Circuit Fluid Level Measure the distance from the text marking “MINIMUM FLUID LEVEL WITH PUMP OPERATING” to the closed circuit fluid dynamic level marked on the side of the solar storage tank during step 12. The correct closed circuit fluid dynamic level for efficient operation of the system when the pump is operating is between the “MINIMUM FLUID LEVEL WITH PUMP OPERATING”...
  • Page 51 COMMISSIONING Determine the correct amount of water to be added to or closed circuit fluid to be drained from the heat exchanger if the dynamic level is either below the text marking “MINIMUM FLUID LEVEL WITH PUMP OPERATING” or more than 150 mm above this mark. Each 100 mm of fluid level height is equivalent to three (3) litres of closed circuit fluid.
  • Page 52 COMMISSIONING Add water to top up the level of the closed circuit fluid in the heat exchanger if required. To add water to the closed circuit fluid:  If not already removed, disconnect the drain line and remove the spring clip from the solar circuit relief valve at the top of the solar storage tank and remove the valve (refer to step Warning: The solar circuit may be under pressure.
  • Page 53 COMMISSIONING Pressure Testing the Solar Circuit Close the heat exchanger drain valve. heat exchanger drain valve Refit the solar circuit relief valve, orientating the valve closed outlet to the rear of the solar storage tank. Secure with the spring clip. Reconnect the drain pipe to the valve. Switch on the electrical supply at the isolating switch to the solar storage tank.
  • Page 54 COMMISSIONING Remove Closed Circuit Fluid Level Hose Remove the clear hose from the solar storage tank when satisfied the commissioning procedure is complete. To remove the hose:  Ensure the heat exchanger drain valve is closed. heat exchanger  Remove the hose from the side of the storage tank drain valve and place the end into a container to collect the closed...
  • Page 55 COMMISSIONING DIAGNOSTIC FEATURES OF THE SOLAR CONTROLLER The solar storage tank incorporates a solar monitor which is connected to the solar control module by a ribbon cable. The solar monitor is located on the lower front cover and houses both a green and a red LED. The green LED, marked “Solar”, indicates the current operational mode of the solar water heater and the red LED, marked “Attention”, indicates a fault mode.

  • Page 56: Draining The Water Heater

    DRAINING THE WATER HEATER Solar Storage Tank Warning: Exercise care, as water discharged from the solar storage tank may be of a very high temperature. To drain the solar storage tank: “To Turn Off The Water Heater” Turn off the water heater (refer to on page 55).
  • Page 57 This page is intentionally blank.
  • Page 58 This page is intentionally blank.
  • Page 59 2.1 The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. 2.2 If you require a call out and we find that the fault is not covered by the Rheem warranty, you are responsible for our standard call out charge.

  • Page 60: Warranty

    3. WHAT IS COVERED BY THE RHEEM WARRANTY FOR THE WATER HEATERS DETAILED IN THIS DOCUMENT 3.1 Rheem will repair or replace a faulty component of your water heater if it fails to operate in accordance with its specifications as...
