OPERATION MANUAL
MODEL V305EK

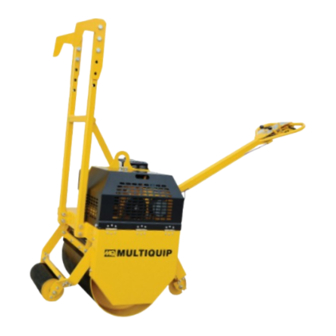

VIBRATORY ROLLER
(
KOHLER CH440 GASOLINE ENGINE)
Revision #0 (07/20/23)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V305EK and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP V305EK

Summary of Contents for MULTIQUIP V305EK

  • Page 1 OPERATION MANUAL MODEL V305EK VIBRATORY ROLLER KOHLER CH440 GASOLINE ENGINE) Revision #0 (07/20/23) To find the latest revision of this publication or associated parts manual, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 3 NOTES V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 3...

  • Page 4: Table Of Contents

    Engine Components ..........19 Inspection ............20-22 Operation ............23-26 Maintenance ............. 27-31 Troubleshooting ..........32-34 NOTICE Specifications and part numbers are subject to change without notice. PAGE 4 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)

  • Page 5: Safety Information

    Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Pressurized fluid hazards Addresses practices not related to personal injury. Electric shock hazards Runover hazards V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 5...
  • Page 6 „ ALWAYS clear the work area of any debris, tools, etc. that would constitute a hazard while the equipment is in operation. PAGE 6 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 7 „ ALWAYS keep the machine in proper running condition. „ Always turn the engine off before performing maintenance. „ Fix damage to machine and replace any broken parts immediately. V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 7...
  • Page 8 fl ammable liquids. rinse skin or clothing immediately with „ DO NOT fi ll the fuel tank while the engine is running plenty of water. or hot. PAGE 8 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 9 „ ALWAYS make sure that roller is secured correctly when transporting on a trailer. Make sure all supports attaching the roller to the trailer are tight. V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 9...

  • Page 10: Specifications

    Curb Clearance (Left) 4.5 in. (114 mm) Wall Clearance (Right) 0.75 in. (19 mm) Wall Clearance (Left) 4.5 in. (114 mm) Vibration Amplitude .019 in. (.48 mm) PAGE 10 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 11 V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 11...

  • Page 12: Dimensions

    29.0 in. (736.6 mm.) 35.0 in. (889 mm.) 88.5 in. (2,248 mm.) 86.5 in. (2,197 mm.) 47 in. (1,193.8 mm.) 46.25 in. (1,175 mm.) 82.5 in. (2,095.5 mm.) PAGE 12 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)

  • Page 13: General Information

    (forward). SPRINKLER SYSTEM A 7 gallon (26.5 liters) water tank with a gravity feed spray bar is provided for wetting the roll for asphaltic V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 13...
  • Page 14 CAUTION NEVER operate the roller on side slopes. The roller may tip over causing injury to personnel and severe damage to the equipment. PAGE 14 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 15 NOTES V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 15...

  • Page 16: Roller Components

    ROLLER COMPONENTS Figure 5. V305EK Components PAGE 16 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 17 This water tank is made of plastic to prevent rust, and holds 7 gallons (26.5 liters) of water. V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 17...
  • Page 18 In normal operating outlined in the maintenance section of this manual. conditions, this lever should be left in the engaged position (forward). PAGE 18 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)

  • Page 19: Engine Components

    Table 2 for fuel tank capacity. Make sure cap is tightened securely. DO NOT over fill. For additional information, refer to Kohler engine owner's manual. V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 19...

  • Page 20: Inspection

    Spring/Fall 25°C~10°C SAE 10W-30/20 for filtration. DO NOT top-off fuel. Wipe up any spilled Winter 0°C or Lower SAE 10W-10 fuel immediately! PAGE 20 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 21 The deflection of the travel belt should be approximately 1/2 of an inch (1.27 cm). Figure 13. Hydraulic Reservoir Filler Port V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 21...
  • Page 22 2. Once released pin has been removed, position handle bar to desired height (Figure 16 and Figure 17). Figure 17. Handle Positions 2 3. Insert release pin and lock with hitch pin. PAGE 22 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)

  • Page 23: Operation

    Move the fuel valve lever (Figure 19) to the ON LEVER position. FUEL VALVE LEVER SLOW FAST Figure 21. Throttle Lever (FAST) Figure 19. Fuel Valve Lever V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 23...
  • Page 24 If the water sprinkler is going to be used for a roll of asphalt Figure 26. Forward Travel Lever paving, fill the water tank with clean water. PAGE 24 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 25 CARSON, CALIFORNIA 90746 310-537-3700, 800/421-1244 NATIONWIDE, FAX: 310-537-3927 FORWARD REVERSE AVANCE REVERSA PUSH TO STOP PUSH EMPUJE EMPUJAR PARA PARAR Figure 29. Vibratory Control Lever (OFF) V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 25...

  • Page 26: Maintenance

    After first 25 hours then Engine Oil Replacement every 50 to 100 hours Air Filter Cleaning Every 50 hours DRAIN SEALING BOLT WASHER Figure 33. Engine Oil (Draining) PAGE 26 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 27 5. Lift up on the locking latches to secure air cleaner cover to the base. 6. Reassemble the air cleaner, and tighten the wing nut securely. Figure 34. Engine Air Cleaner (Quad-Clean) V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 27...
  • Page 28 • If the machine will not be in operation for a long period 5. Reinstall the spark arrester and muffler protector in of time, charge the battery sufficiently, tighten all caps reverse order of disassembly. PAGE 28 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 29 Figure 38. Travel and Vibratory Belts 2 shots each of EP-3 grease or equivalent. SCRAPER BLADES (DAILY) The scraper blades should be cleaned daily after each V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 29...
  • Page 30 PUMP MOUNTING The roller should not move once adjustment is HYDROSTATIC SCREWS PUMP complete. Figure 39. Hydrostatic Pump Drive Belt 5. Retighten all hardware. PAGE 30 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 31 ZERK FITTING LUBRICATE CLUTCH WITH EP-3 GREASE .33 OZ. (A SHOT EVERY 50 HOURS) Figure 41. Lubrication Points (Zerk Fittings) ROLLER STORAGE V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 31...

  • Page 32: Troubleshooting

    Unit does not vibrate or has weak vibration. Damaged vibration cable and linkage? Replace or repair vibration cable and linkage. Defective clutch vibrator pulley V-belt? Replace V-belt. PAGE 32 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 33 Fuel fi lter/lines clogged? Replace fuel fi lter. Fuel tank cap breather hole clogged? Clean or replace fuel tank cap. Air in fuel line? Bleed fuel line. V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23) — PAGE 33...
  • Page 34 Check cable connections. Charge or replace Will not start, no power with key ON. Battery disconnected or discharged? (if applicable) battery. Ignition switch/wiring defective? Replace ignition switch. Check wiring. PAGE 34 — V305EK VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #0 (07/20/23)
  • Page 35 © COPYRIGHT 2023, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
