Erica Synths BLACK 8-MULTI Instructions

THANK YOU FOR PURCHASING THIS
ERICA SYNTHS BLACK SERIES
MODULE! These are high-end
modules with unique functionality.
Only the highest quality components
are used and all inputs and outputs
are protected against undesired
overvoltage. When designing the
Black Series, we did not economise
on the module width, we put design
and usability first. Big knobs are
assigned to functions that make
difference in sound. The Erica Black
series are a range of modules that
together make an entire synthesizer.
Enjoy!
The Erica 8-splitter advanced
replacement for stackable
patchcables - it is active buffered
multiple with signal status LEDs. Use
it for splitting CV, audio and/or clock
signals without interference among
output signals and loosing signal
strength!

SPECS:

Max input level......................-10V - +10V
Power consumption.... +25mA, -25mA
Module width....................................6HP
Module depth...............................25mm
Status LED gives you
visual indication on input/
output signal amplitude.
Especially useful for clock
and CV signals.
Apply signal, you wish
to split here! Input is DC
coupled, so you can use
it for splitting CV, clock
or audio signals. This
module is actually 2x4
multiple, and second
input is normaled to the
first output, so if nothing
is plugged in the second
input, you get one signal
splitted to 8 outputs, OR
if you plug a patchcable
in INPUT2, you
automatically get 2x4
multiple.

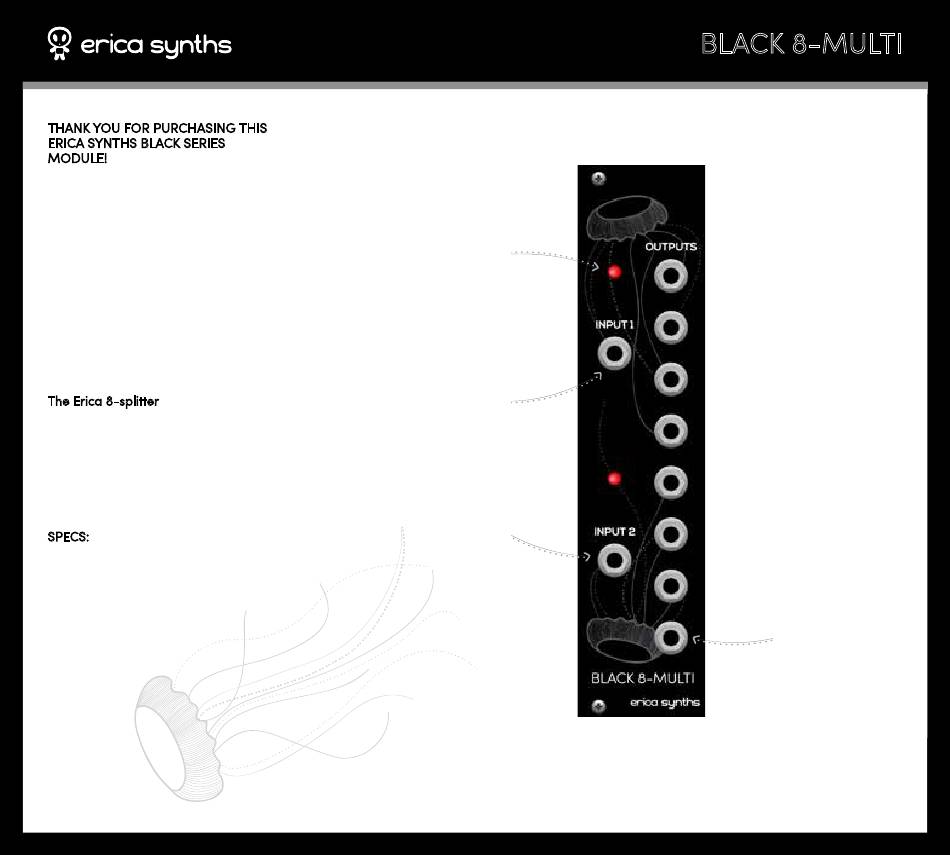

BLACK 8-MULTI
On outputs you get 8 or
4 identical independent
signals – exact copies
of input signals
