If you are reading this, most probably, you are about to build Erica
Synths DIY Mixer. This module is 30mm deep, skiff friendly, has
solid mechanical construction and doesn't require wiring. It's
simple, straight-forward audio mixer an essential part of any
modular setup.
The DIY Mixer kit comes in three versions:
1) PCB,
2) PCB + panel,
3) Full kit.
FEATURES:
• Three AC coupled audio inputs
• Two outputs
• Skiff-friendly design
SPECIFICATIONS:
• Mixer gain
• Panel width
• Module depth
• Power consumption
GUIDE TO ASSEMBLY OF ERICA SYNTHS DIY MIXER
1
6HP
30mm
4mA@+12V, 4mA@-12V
1
2
3
1

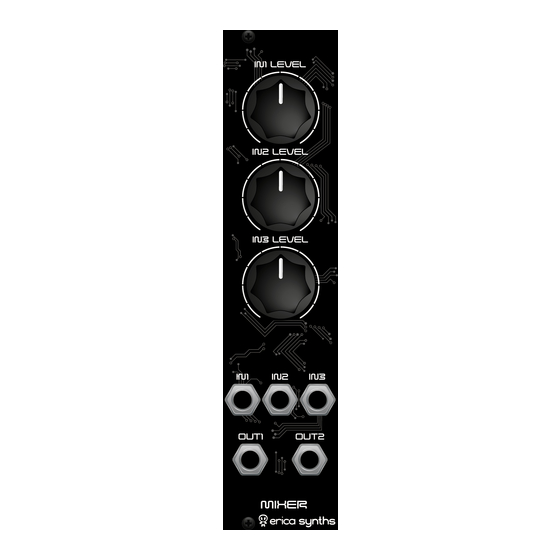

These are input level attenuators! Set desired
level for each input signal!
2
These are inputs, obviously. Patch audio
signals here!
These are outputs! The mixed signal is
3
available on both outputs simultaneously.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Erica Synths DIY MIXER
Summary of Contents for Erica Synths DIY MIXER
- Page 1 GUIDE TO ASSEMBLY OF ERICA SYNTHS DIY MIXER If you are reading this, most probably, you are about to build Erica Synths DIY Mixer. This module is 30mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring. It’s simple, straight-forward audio mixer an essential part of any modular setup.
- Page 2 Some components are marked as NU (not used) – leave those unpopulated! Some components are market as OPTION (those are for optional modifications) – leave those unpopulated for now. Erica Synths DIY mixer is the most easy module to Solder IC socket, ceramic capacitors and...
