bizhub 650i/550i/450i
QUICK GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bizhub 650i and is the answer not in the manual?

Questions and answers

Related Manuals for Konica Minolta bizhub 650i

Summary of Contents for Konica Minolta bizhub 650i

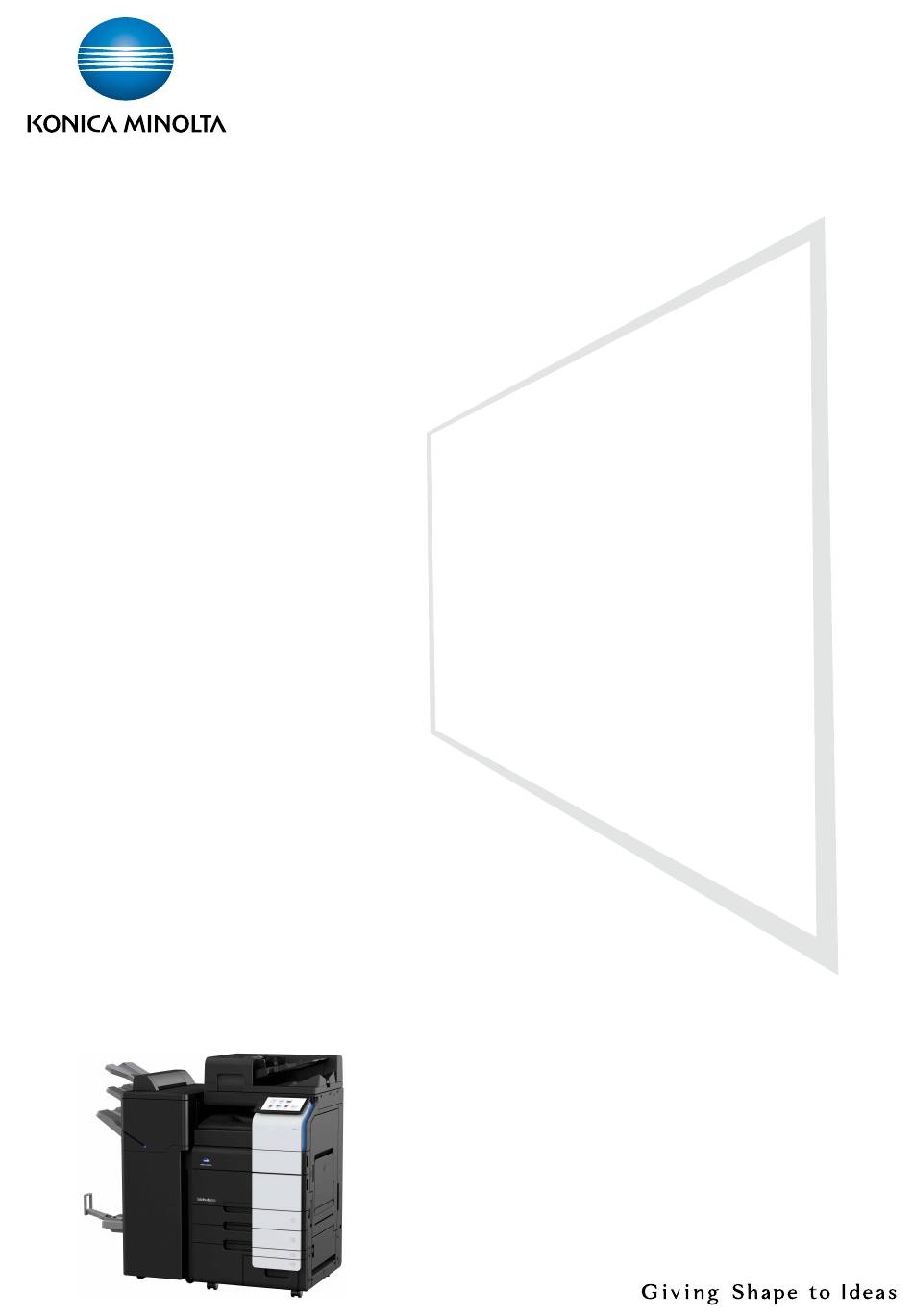

  • Page 1 650i/550i/450i QUICK GUIDE...

  • Page 3: Table Of Contents

    Loading paper ..........................6-4 6.2.1 Loading paper in Tray 1 to Tray 2 .......................6-4 6.2.2 Loading paper into the Bypass Tray ....................6-5 6.2.3 Loading envelopes..........................6-6 6.2.4 Loading postcards ..........................6-8 6.2.5 Loading label sheets .........................6-11 6.2.6 Loading index papers ........................6-12 bizhub 650i/550i/450i Contents-1...
  • Page 4 When a message appears to replace consumables or carry out cleaning ......9-11 9.4.1 About Drum Unit ..........................9-11 9.4.2 About Developing Unit ........................9-11 9.4.3 About Toner Cartridge ........................9-11 9.4.4 About Waste Toner Box........................9-13 9.4.5 About Staple Cartridge ........................9-14 9.4.6 About hole-punch scraps .........................9-26 9.4.7 About staple scraps ..........................9-29 Contents-2 bizhub 650i/550i/450i...

  • Page 5: Safety Information

    Safety information...

  • Page 7: Introduction

    The illustrations and screens used in this manual may appear slightly different from views of the actual equip- ment and screens. Tips Please keep this manual as well as the attached CD/DVD in a safe place where you can access them easily. bizhub 650i/550i/450i...

  • Page 8: Environmental Information

    With a product which has a duplex unit, you can print on both sides of paper automatically. Using this function leads to reducing consumption of natural resources and your cost. Attached printer driver provides this duplex printing function as initial setting in your computer (The setting can be changed after installation manually). bizhub 650i/550i/450i...

  • Page 9: Safety Information

    Do not use the power source voltage other than being specified on the machine. Failure to do that could result in a fire or electrical shock. bizhub 650i/550i/450i...
  • Page 10 It could drop or fall, causing personal injury or mechanical breakdown. Do not let any object plug the ventilation holes of this product. Heat could accumulate inside the product, resulting in a fire or malfunction. bizhub 650i/550i/450i...
  • Page 11 When using the machine, do not look at the light of the lamp for a prolonged time. Eyestrain could result. Do not use stapled paper, conductive paper (such as silver paper or carbon paper) or treated heat-sensitive/inkjet paper, otherwise a fire may result. bizhub 650i/550i/450i...
  • Page 12 Then, leave the machine to stand idle for a specified period of time and make sure that the fusing section has cooled down to room temperature. Failure to follow these instructions could result in a burn. bizhub 650i/550i/450i...

  • Page 13: Regulation Notices

    KONICA MINOLTA branded model bizhub 650i, bizhub 550i and bizhub 450i. CE Marking (Declaration of Conformity) for users of the European Union (EU) Hereby, Konica Minolta declares that the radio equipment models specified above are in compliance with Directive 2014/53/EU.
  • Page 14 U.S.A. users) FCC: Declaration of Conformity Product Type Multi Function Printer Product Name bizhub 650i, bizhub 550i, bizhub 450i This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired oper- ation.
  • Page 15 Internal laser radiation Maximum Average Radiation Power: 15.1 μW (bizhub 650i), 13.1 μW (bizhub 550i), 9.9 μW (bizhub 450i) at the laser aperture of the print head unit. Wavelength: 775-800 nm (bizhub 650i/550i) / 770-800 nm (bizhub 450i) This product employs a Class 3B laser diode that emits an invisible laser beam.
  • Page 16 This is a semiconductor laser. The maximum power of the laser diode is 25 mW and the wavelength is 775-800 nm (bizhub 650i/550i) or 770-800 nm (bizhub 450i). Laser safety label A laser safety label is attached to the outside of the machine, as shown below.
  • Page 17 USB host Connect USB devices (Memory, Authentication, Hub etc.) devices directly to the USB host. If an extension cable is used, electromagnetic interference could occur. bizhub 650i/550i/450i 1-13...
  • Page 18 Ground/Earth (Protective bonding ter- Ground/Earth (Protective earthing) minal) CLASS II EQUIPMENT Class II equipment with functional earthing Functional earthing General precaution High temperature Electrical shock hazard CAUTION CAUTION moving fan blade DOUBLE POLE / NEUTRAL FUSING 1-14 bizhub 650i/550i/450i...

  • Page 19: Special Notice To User

    If trouble is experienced with this equipment FK-514 or FK-515, for repair or warranty information, please contact the Konica Minolta dealer location where you purchased this equipment. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
  • Page 20 The automatic calling functions of this equipment must not be used to cause a nuisance to other customers. Telepermitted equipment only may be connected to the auxiliary telephone port. The auxiliary port is not spe- cifically designed for 3-wire connected equipment. 3-wire might not respond to incoming ringing when con- nected to this port. 1-16 bizhub 650i/550i/450i...

  • Page 21: Space Requirements

    Main unit + DK-705 + FS-539 SD + PC-216 + LU-302 + MK-730 + CU-102 Unit: inch (mm) Main unit + DK-705 + PC-216 Unit: inch (mm) NOTICE Be sure to allow a clearance of 8 inches (200 mm) or more at the back of this machine for the ventilation duct. bizhub 650i/550i/450i 1-17...

  • Page 22: Operation Precautions

    For details of the overwrite all data function, refer to the User's Guide. Contact your service representative before deleting data. It is recommended to backup storage periodically as the measures for storage defect. For the detail informa- tion of storage backup, contact your service representative. 1-18 bizhub 650i/550i/450i...

  • Page 23: Legal Restrictions On Reproduction

    This machine provides the forgery prevention function in order to prevent financial instruments from being re- produced illegally. We appreciate your understanding that printed images may infrequently have some noise or image data may not be stored under certain circumstances due to this forgery prevention function. bizhub 650i/550i/450i 1-19...

  • Page 24: Caution Notations And Labels

    Do not remove caution labels or notations. If any caution label or caution notation is soiled, please clean to make legible. If you cannot make them legible, or if the caution label or notation is damaged, please contact your service representative. 1-20 bizhub 650i/550i/450i...

  • Page 25: Before Using This Machine

    Before using this machine...

  • Page 27: Environmental Initiatives

    For the information necessary to operate the machine, please refer to the bundled User's Guide CD/DVD (HTML format). This guide has an excellent search function. Functions such as keyword search and filtering by purpose are very useful to help users find what they need to know. bizhub 650i/550i/450i...

  • Page 28: Intended Use Of Office Mfp Devices

    Errors or damage have been discovered, Maintenance intervals have been exceeded, Mechanical or electrical functions do not work as they should. Exclusion of liability The manufacturer of the system assumes no liability for damages if the system was operated under imper- missible conditions. bizhub 650i/550i/450i...

  • Page 29: Target Groups

    Administrator Persons managing consumables, system functions, users and access rights; adjusting system settings, and establishing network connections. Everyone who uses this system must have read and understood the related user's guides. bizhub 650i/550i/450i...

  • Page 30: Introduction To User's Guide

    Be sure to read this guide before use. HTML User's Guide This User's Guide is included in the User's Guide CD/DVD. The User's Guide provides basic and detailed information on the functions of this product and also explana- tions of other various setting functions. bizhub 650i/550i/450i...

  • Page 31: Symbols And Notations Used In This Manual

    An item enclosed by brackets [ ] indicates a key name on the Touch Panel or computer screen, or the name of a user's guide. Bold text This presents a key name, part name, product name, or option name on the Control Panel. bizhub 650i/550i/450i...

  • Page 32: Administrator Password

    Administrator password Administrator password The administrator password is set to [1234567812345678] by factory default. Try this password if the admin- istrator password has not been changed. Change the administrator password periodically. bizhub 650i/550i/450i...

  • Page 33: How To Use The Html User's Guide

    How to use the HTML User's Guide...
  • Page 35 We recommend that you use the latest Web browser that is compatible with your operating system to help you use this machine more conveniently and comfortably. Check that JavaScript in your Web browser is enabled. The HTML User's Guide uses JavaScript for the page display and search functions. bizhub 650i/550i/450i...
  • Page 36 650i/550i/450i...

  • Page 37: About This Machine

    About this machine...

  • Page 39: Optional Components

    This unit is referred to as "this machine" or "the main unit" in the man- ual. Fax Kit FK-514 Used to operate this machine as a fax machine. Alternatively, this kit allows more telephone lines to be connected. bizhub 650i/550i/450i...
  • Page 40 This unit can only be installed on bizhub 550i/450i. Punch Kit PK-519 Install this unit onto the Finisher FS-533. This unit supports the punching function. Mount Kit MK-607 This unit is required to install Finisher FS-533 on bizhub 550i/450i. bizhub 650i/550i/450i...
  • Page 41 Used to add a unicode font that is one of special fonts. i-Option LK-108 Used to add an OCR font that is one of special fonts. In the standard, the OCR-B font (PostScript) is available. Installing this option allows a use of the OCR-A font (PCL). bizhub 650i/550i/450i...
  • Page 42 Automatically detects the paper type of the paper loaded in the tray. sor IM-102 Expanded Memory Adds the storage to this machine. Unit EM-908 To use this unit, update firmware of this machine. For details, contact your service representative. bizhub 650i/550i/450i...

  • Page 43: Name Of Each Component (Main Unit)

    Open this door to replace a Toner Cartridge. Mobile Touch Area This area is used to associate this machine with an NFC-compatible Android terminal or an iOS terminal compatible with Bluetooth LE. Power key Switches this machine to the Power Save mode. bizhub 650i/550i/450i...
  • Page 44 USB Port (Type B) Connect to this port when using this machine as a USB-connected USB2.0/1.1 printer. Tips The network port of this product is following No.11 and No.12. A port is activated when a network port inserts a cable. bizhub 650i/550i/450i...

  • Page 45: Power Supply

    When turning the main power off, open the Main Power Switch Cover, and press r of the Main Pow- er Switch. NOTICE When restarting this machine, turn the Main Power Switch off and on again after 10 or more seconds have passed. Not doing so may result in an operation failure. bizhub 650i/550i/450i...
  • Page 46 Power supply 4-10 bizhub 650i/550i/450i...

  • Page 47: About Panels

    About panels...

  • Page 49: Control Panel

    Power Indicator Indicates the power supply state by the lamp color. • Light-up (blue): Normal state • Flash (blue): Low Power mode or Sleep mode • Light-up (orange): Sub Power OFF • Flash (orange): ErP Auto Power OFF bizhub 650i/550i/450i...

  • Page 50: Touch Panel

    [Language] Temporarily changes the language to be displayed on the panel. This option is displayed when [Temporarily Change Language] is set to ON. [Utility] Configure settings of this machine or check the use status of this ma- chine. bizhub 650i/550i/450i...

  • Page 51: Login Methods

    When the target operation is completed, select to log out. % If this machine is left for a certain period of time during login (default: [1] min.), you are logged out automatically. Tap [Yes] on the logout confirmation screen. bizhub 650i/550i/450i...
  • Page 52 When the target operation is completed, select to log out. % If this machine is left for a certain period of time during login (default: [1] min.), you are logged out automatically. Tap [Yes] on the logout confirmation screen. bizhub 650i/550i/450i...

  • Page 53: Loading The Original And Paper

    Loading the original and paper...

  • Page 55: Load The Original

    This function is useful when you want to scan a small original such as a book, magazine, or business card. Place the original with the scanning side facing down. Align the original with the mark at the left back of the Original Glass. bizhub 650i/550i/450i...

  • Page 56: Loading Paper

    Plain paper, single-side-only paper, thin paper, postcard (4 e 6 (A6 Card)), envelope, special paper, thick pa- per, letterhead, colored paper, recycled paper How to load paper Pull out the tray. NOTICE Be careful not to touch the Film. Slide the Lateral Guide to fit the size of the loaded paper. bizhub 650i/550i/450i...

  • Page 57: Loading Paper Into The Bypass Tray

    How to load paper Open the Bypass Tray. % To load large-sized paper, pull out the Tray Extension. NOTICE Be careful not to touch the surface of the Paper Feed Rollers with your hand. bizhub 650i/550i/450i...

  • Page 58: Loading Envelopes

    The flap side of envelopes cannot be printed on. When loading envelopes with flaps opened, also select the standard size that matches them. You do not have to measure the size of the envelope with the flap opened to set the size as a custom-sized envelope. bizhub 650i/550i/450i...
  • Page 59 When loading envelopes of which the length is 7-3/16 inches (182 mm) or less, mount the Attachment on the Lateral Guide. Align the Lateral Guide with the envelope size. Select the desired envelope size from [Envelop/4 e 6] ([Envelop/A6 Card]) of [Paper Size]. Max. 70 sheets bizhub 650i/550i/450i...

  • Page 60: Loading Postcards

    Max. 10 sheets 6.2.4 Loading postcards Precautions when using postcards When loading curled postcards, uncurl them. When using postcards other than 4 e 6 (A6 Card), confirm its size, and select [Paper Size] - [Custom Size] to specify the size. bizhub 650i/550i/450i...
  • Page 61 Load postcards with the print side facing up. For Tray 1, mount the Attachment on the Lateral Guide. Align the Lateral Guide with the postcard size. Select [4 e 6] ([A6 Card]) from [Paper Size options]. Max. 200 sheets bizhub 650i/550i/450i...
  • Page 62 Up to 20 postcards can be loaded into the tray. Load postcards with the print side facing down. Align the Lateral Guide with the postcard size. Select the desired postcard size from [Envelop/4 e 6] ([Envelop/A6 Card]) of [Paper Size]. Max. 20 sheets 6-10 bizhub 650i/550i/450i...

  • Page 63: Loading Label Sheets

    With the print side facing down, load label sheets as shown in the figure. Align the Lateral Guide with the label sheet size. Select [Thick 1+] from [Paper Type]. (Not required when this machine is equipped with the Intelligent media sensor.) bizhub 650i/550i/450i 6-11...

  • Page 64: Loading Index Papers

    Up to 20 index papers can be loaded into the tray. With the print side facing down, align the tab side as shown below. Align the Lateral Guide with the index sheet size. Select [Index Paper] from [Paper Type]. 6-12 bizhub 650i/550i/450i...

  • Page 65: Available Operations In This Machine

    Available operations in this machine...

  • Page 67: How To Copy

    How to copy Basic copy operations This section describes the basic copy operations. If user authentication is enabled, the login screen appears. Enter the required items, and tap [Login]. Load the original. Tap [Copy] on the home screen. bizhub 650i/550i/450i...
  • Page 68 How to copy Set copy options as needed. If necessary, specify the number of copies using the keypad. Use the Start key to start copying. bizhub 650i/550i/450i...

  • Page 69: How To Print

    % The [Print] dialog box differs depending on the application. Specify the print range and the number of copies to print. Click [Properties] (or [Preferences]) to change the print settings of the printer driver as necessary. Click [Print]. bizhub 650i/550i/450i...

  • Page 70: How To Scan

    This section describes the basic scan operations. If user authentication is enabled, the login screen appears. Enter the required items, and tap [Login]. Load the original. Tap the scan function key on the home screen. Specify the destination. bizhub 650i/550i/450i...
  • Page 71 How to scan Specify transmission options as needed. Use the Start key to start transmission. bizhub 650i/550i/450i...

  • Page 72: How To Fax

    How to fax Basic fax operations This section describes the basic fax operations. If user authentication is enabled, the login screen appears. Enter the required items, and tap [Login]. Load the original. Tap [Fax] on the home screen. bizhub 650i/550i/450i...
  • Page 73 How to fax Specify the destination. Specify transmission options as needed. Use the Start key to start transmission. bizhub 650i/550i/450i...
  • Page 74 How to fax 7-10 bizhub 650i/550i/450i...

  • Page 75: Registering A Destination

    Registering a destination...

  • Page 77: How To Register A Destination

    Faxes are sent at a lower speed. • [Check Destination]: The fax number specified for fax is checked against the destination fax number (CSI) and the fax is sent only when they match. Tap [OK]. bizhub 650i/550i/450i...
  • Page 78 For a frequently used destination, select the [Main] check box. The destina- tions are displayed on the destination selection screen, enabling the user to easily select a destination. [E-mail] Enter the E-mail address of the destination (using up to 320 characters, ex- cluding spaces). Tap [OK]. bizhub 650i/550i/450i...

  • Page 79: Read This If You Have A Problem

    Read this if you have a problem...

  • Page 81: Main Messages And Remedies

    The notification icon is displayed on the home screen when there is a machine condition warning or notice notification. You can tap the icon to check the notification contents. Tap the notification icon on the home screen. Tap [ATTENTION List], and check the notification list. bizhub 650i/550i/450i...

  • Page 82: Screen That Appears When A Paper/Staple Jam Has Occurred

    If a paper jam is not cleared securely, the warning message is not reset. For details on how to take an action when a paper jam message is not reset, refer to the HTML User's Guide. When a paper jam is cleared, a screen showing how to correctly load paper or the original is displayed. bizhub 650i/550i/450i...

  • Page 83: When An Error Message Appears

    If a defective part can be separated in order to be able to continue operations after a problem has been de- tected, [Continue] or [Recover Data] is displayed. To continue operations, select any key. However, the prob- lem has not been resolved, so contact your service representative immediately. bizhub 650i/550i/450i...

  • Page 84: When The Touch Panel Is Not Visible

    On the Control Panel, press the Power key. If the Weekly Timer setting has put the machine in Erp Auto Power off mode, press the Power key to display the Touch Panel. To use it outside the preset operating hours, follow the on-screen instructions. Check to see that the Main Power Switch is turned ON. bizhub 650i/550i/450i...

  • Page 85: When Printing Quality Has Deteriorated

    "Caution HOT" caution label. A burn could result. Cleaning the Slit Scan Glass Open the ADF. Wipe stains off the Slit Scan Glass using a dry, clean cloth. NOTICE Do not touch the Slit Scan Glass. bizhub 650i/550i/450i...
  • Page 86 % Release the lock lever of the Opening and Closing Guide, and open the Opening and Closing Guide. Wipe stains off the Slit Scan Glass (back) using a dry, clean cloth. NOTICE Do not touch the Slit Scan Glass (back). bizhub 650i/550i/450i...
  • Page 87 Cleaning the Print Head Glass Printing quality deteriorates if the Print Head Glass is dirty. If this occurs, clean the Print Head Glass ac- cording to the following procedure. Open the Lower Front Door of the machine. Remove the Waste Toner Box. bizhub 650i/550i/450i...
  • Page 88 Slowly insert the Printhead Cleaner all the way to the back end of the Print Head Glass, and then slowly pull it out. % Repeat this operation approximately three times. Mount the Printhead Cleaner onto the Lower Front Door of this machine. Mount the Waste Toner Box. Close the Lower Front Door of the machine. 9-10 bizhub 650i/550i/450i...

  • Page 89: When A Message Appears To Replace Consumables Or Carry Out Cleaning

    When it is time to replace a Toner Cartridge When it is time to replace a Toner Cartridge, a replacement prompt message appears. Replace it based on the maintenance contract. You can display the replacement procedure on the screen and check it. bizhub 650i/550i/450i 9-11...
  • Page 90 If you get toner into your eyes, immediately rinse them with running water for over 15 minutes. Seek medical advice if irritation persists. If you swallow toner, rinse out your mouth and drink a few glasses of water. Seek medical advice if nec- essary. 9-12 bizhub 650i/550i/450i...

  • Page 91: About Waste Toner Box

    If you get toner into your eyes, immediately rinse them with running water for over 15 minutes. Seek medical advice if irritation persists. If you swallow toner, rinse out your mouth and drink a few glasses of water. Seek medical advice if nec- essary. bizhub 650i/550i/450i 9-13...

  • Page 92: About Staple Cartridge

    When staples in the Finisher have run out, a message appears to prompt you to make replenish them. Take action while referring to the label inside the machine. Replacing a Staple Cartridge (for Finisher FS-540/Finisher FS-540 SD) Open the Front Door of the Finisher. Unlock the Staple Cartridge. Pull out the Staple Cartridge. 9-14 bizhub 650i/550i/450i...
  • Page 93 Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled. NOTICE Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure. bizhub 650i/550i/450i 9-15...
  • Page 94 When a message appears to replace consumables or carry out cleaning Replacing a Staple Cartridge (for Finisher FS-539/Finisher FS-539 SD) Open the Front Door of the Finisher. Unlock the Staple Cartridge. Pull out the Staple Cartridge. Remove any empty staple cases from the Staple Cartridge. 9-16 bizhub 650i/550i/450i...
  • Page 95 Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled. NOTICE Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure. bizhub 650i/550i/450i 9-17...
  • Page 96 Replacing a Staple Cartridge (for Finisher FS-533) Pinch the Lock Release Lever, and slide the Finisher. Pull the Punch Kit Release Lever [FS2] in the arrow direction, and open the Punch Kit. Unlock the Staple Cartridge. Pull out the Staple Cartridge. 9-18 bizhub 650i/550i/450i...
  • Page 97 Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled. NOTICE Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure. bizhub 650i/550i/450i 9-19...
  • Page 98 Replacing a Saddle Staple Cartridge (for Finisher FS-540 SD) Open the Front Door of the Finisher. Pull out the Saddle Stitcher. Tilt the blue knob of the Saddle Staple Cartridge toward you. Saddle Staple Cartridge 1 Saddle Staple Cartridge 2 9-20 bizhub 650i/550i/450i...
  • Page 99 Pull out the Saddle Staple Cartridge. Open the Saddle Staple Cartridge cover. Remove any empty staple cases from the Saddle Staple Cartridge. Attach a new staple case to the Saddle Staple Cartridge. Close the Saddle Staple Cartridge cover. bizhub 650i/550i/450i 9-21...
  • Page 100 When moving the Saddle Stitcher, be sure to only hold the handle. Otherwise, your hand or finger may get caught in the machine. Be sure to replace the Saddle Staple Cartridge after the relevant message has appeared. If a Saddle Staple Cartridge is removed before the relevant message appears, it may result in a failure. 9-22 bizhub 650i/550i/450i...
  • Page 101 Replacing a Saddle Staple Cartridge (for Finisher FS-539 SD) Open the Front Door of the Finisher. Pull out the Saddle Stitcher. Tilt the blue knob of the Saddle Staple Cartridge toward you. Saddle Staple Cartridge 1 Saddle Staple Cartridge 2 bizhub 650i/550i/450i 9-23...
  • Page 102 Pull out the Saddle Staple Cartridge. Open the Saddle Staple Cartridge cover. Remove any empty staple cases from the Saddle Staple Cartridge. Attach a new staple case to the Saddle Staple Cartridge. Close the Saddle Staple Cartridge cover. 9-24 bizhub 650i/550i/450i...
  • Page 103 When moving the Saddle Stitcher, be sure to only hold the handle. Otherwise, your hand or finger may get caught in the machine. Be sure to replace the Saddle Staple Cartridge after the relevant message has appeared. If a Saddle Staple Cartridge is removed before the relevant message appears, it may result in a failure. bizhub 650i/550i/450i 9-25...

  • Page 104: About Hole-Punch Scraps

    Take action while referring to the label inside the machine. Punch scrap processing (for Finisher FS-540/Finisher FS-540 SD) Tips The figure shows the Finisher FS-540 SD with Punch Kit PK-526, Z Folding Unit ZU-609, and Relay Unit RU-513 installed. 9-26 bizhub 650i/550i/450i...
  • Page 105 When a message appears to replace consumables or carry out cleaning Punch scrap processing (for Finisher FS-539/Finisher FS-539 SD) Tips The figure shows the Finisher FS-539 SD equipped with Punch Kit PK-524 and Relay Unit RU-513. bizhub 650i/550i/450i 9-27...
  • Page 106 When a message appears to replace consumables or carry out cleaning Punch scrap processing (for Finisher FS-533) Tips The figure shows the Finisher FS-533 equipped with Punch Kit PK-519. 9-28 bizhub 650i/550i/450i...

  • Page 107: About Staple Scraps

    The figure shows the Finisher FS-540 SD with Punch Kit PK-526, Z Folding Unit ZU-609, and Relay Unit RU-513 installed. NOTICE Be sure to clear staple scraps after the relevant message has appeared. If the Staple Scrap Box is removed before the message is displayed, it causes a failure. bizhub 650i/550i/450i 9-29...
  • Page 108 When a message appears to replace consumables or carry out cleaning 9-30 bizhub 650i/550i/450i...
