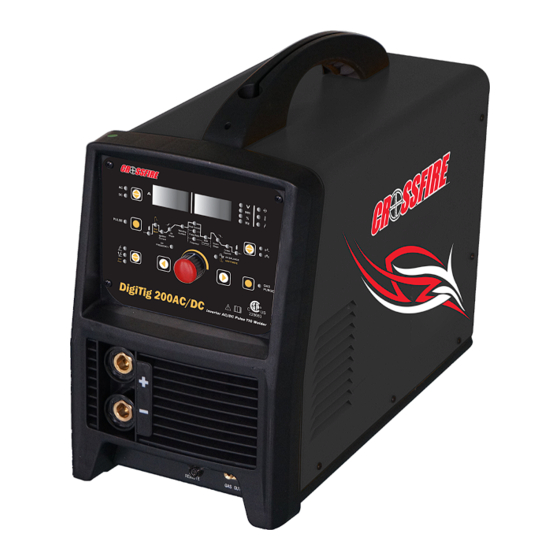

DigiTig 200AC/DC Inverter Pulse Welder
、
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Please read this manual carefully before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiTig 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crossfire DigiTig 200

Summary of Contents for Crossfire DigiTig 200

  • Page 1 DigiTig 200AC/DC Inverter Pulse Welder 、 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Please read this manual carefully before using...

  • Page 2: Warranty

    WARRANTY EFFECTIVE JULY 1, 2015 LIMITED WARRANTY This warranty applies to the original purchaser and is subject to the terms and condi�ons listed below. This Limited Warranty is for new equipment sold a�er the above date, providing coverage for defects in material and workmanship at the �me it is shipped from the factory. Limited to the warranty periods below, Crossfire Equipment or an approved Crossfire Repair Centre will repair or replace the item under warranty that fails due todefects in material and workmanship.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this DigiTig 200AC/DC until they have read this manual and have developed a thorough understanding of how the DigiTig 200AC/DC works.
  • Page 4 material being welded, ground or electrode from another welder. -Do not weld if you are in an awkward position. Always have a secure stance while welding to prevent accidents. Wear a safety harness if working above ground. -Do not drape cables over or around your body. -Wear a full coverage helmet with appropriate shade (see ANSI Z87.1 safety standard) and safety glasses while welding.
  • Page 5 -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear. -Use a lens that meets ANSI standards and safety glasses. For welders under 160 Amps output, use a shade 10 lens;...
  • Page 6 -Do not wrap cable around your body while welding. -Wrap MIG gun and ground cable together whenever possible. -Keep MIG gun and ground cables on the same side of your body. Shielding Gas Cylinders Can Explode High pressure cylinders can explode if damaged, so treat them carefully. -Never expose cylinders to high heat, sparks, open flames, mechanical shocks or arcs.

  • Page 7: Technical Specification

    TECHNICAL SPECIFICATION DigiTig 200AC/DC ～ 200 ～ 200 ～ 170 Current Up Time 0～ 15 Current Drop Time 0～ 25 ～ 250 Pulse Width Adjustment 15～ 85 (DC) AC Frequency 15～150 Clear Area Control（ AC） ～ 65 ～ 30 Effiency η...
  • Page 8 Welding regulations parameter table (only for reference) Top Dia WORK Wire Argon Tungste Welding Φ Material Designe Thicknes Flow n Stick Current Mode Polarity Angle (mm) Type d Joint Φ Dia Φ (mm) (mm) (mm) Vertical 1.6~3.0 50~90 12~20° 0.12~0.25 Joint 1.6~2.5 8~12...
  • Page 9 1.3. AC/DC transfer knob Use this knob to choose AC or DC, when AC indicator light, means the Machine is under AC mode. When DC indicator light, means the machine is under DC mode. 1.4. Pulse switch Use this knob to choose whether you need the pulse, when indicator is lit it you are working in pulse mode.

  • Page 10: Installation

    in real time. 1.11.2. Overvoltage protection: When the input voltage is below or Above the specified voltage, the machine will cut off the power to protect itself until the Proper input voltage is available . INSTALLATION 1. POWER REQUIREMENT - AC single phase 230V, 60 HZ with a 50 amp circuit breaker is required. DO NOT OPERATE THIS UNIT if the ACTUAL power source voltage is less than 220 volts AC or greater than 240 volts AC.

  • Page 11: Operation

    5. Input connection method Input power Remote control box Gas cylinder EXPOSURE TO A WELDING ARC IS EXTREMELY HARMFUL TO THE EYES AND SKIN! Prolonged exposure to the welding arc can cause blindness and burns. Never strike an arc or begin welding until you are adequately protected.
  • Page 12 ”can be adjusted. “ Step3： Use this Knob to adjust the parameter selected on Step2 Step2： Press this knob to choose the parameter Step1： Press this knob, choose MMA, the current display shows the pre-set current，voltage display shows the open circuit voltage. 2.
  • Page 13 2.2 DC pulse TIG welding Set 【Welding mode knob】 to “TIG ”， 【AC/DC transfer knob】 to “DC ” , 【Pulse switch】 set on “Pulse” to enter pulse tig welding .Use Parameter knob””Parameter positive knob”: 【 】 to adjust the Pre-flow time； 】...
  • Page 14 2.3.2 4T Latch Mode This mode of welding is mainly used for long welding runs to reduce operator fatigue. In this mode the operator can press and release the torch trigger and the output will remain active. To deactivate the power source, the trigger switch must again be depressed thus eliminating the need for the operator to hold the torch trigger.
  • Page 15 2.5 AC pulse TIG welding Set 【Welding mode knob】to “TIG ” and 【AC/DC transfer knob】to “AC ”, 【Pulse switch】set on “Pulse” to enter into AC pulse TIG welding mode. Then use”Parameter positive knob”: 】 to adjust the Pre-flow time； 【 】...

  • Page 16: Ground Clamp Connection

    Based on different welding position, there are different welding joint, see following images for more information. 3.3 GROUND CLAMP CONNECTION Clear any dirt, rust, scale, oil or paint on the ground clamp. Make certain you have a good solid ground connection.

  • Page 17: Welding Techniques

    3.5 SELECTING THE PROPER ELECTRODE There is no golden rule that determine the exact rod or heat setting required for every situation. The type and thickness of metal and the position of the work piece determine the electrode type and the amount of heat needed in the welding process.
  • Page 18 3.7.1 Holding the electrode The best way to grip the electrode holder is the way that feels most comfortable to you. Position the Electrode to the work piece when striking the initial arc it may be necessary to hold the electrode perpendicular to the work piece.
  • Page 19 Stringer Bead Weave Bead The weave bead Used when you want to deposit metal over a wider space than would be possible with a stringer bead. It is made by weaving from side to side while moving with the electrode. It is best to hesitate momentarily at each side before weaving back the other way.
  • Page 20 3.7.6 Finish the bead As the coating on the outside of the electrode burns off, it forms an envelope of protective gases around the weld. This prevents air from reaching the molten metal and creating an undesirable chemical reaction. The burning coating, however, forms slag. The slag formation appears as an accumulation of dirty metal scale on the finished weld.
  • Page 21 Tungsten Electrode Current Ranges Guide for Selecting Filler Wire Diameter Tungsten Electrode Types Aluminium Welding Material...

  • Page 22: Troubleshooting

    Welding Rate TIG Welding is generally regarded as a specialized process that requires operator competency. While many of the principles outlined in the previous Arc Welding section are applicable a comprehensive outline of the TIG Welding proc ess is outside the scope of this Operating Manual. TROUBLESHOOTING Breakdown Analysis...
  • Page 23 Thermal relay broken Replace the thermal relay Voltage variance Returns to normal when voltage is mode than 15% corrented Relevant Replace the potentiometer potentiometer Panel knob broken not adjustable Main PC board broken Replace the PC board Find the disconnected wire and Cable broken/fallen off Connect reliably Digital...

  • Page 24: Diagram & Parts List

    DIAGRAM & PARTS LIST Code number Description 2.05.08.115 Handle 1.1.01.01.0742 Enclosure 1.1.10.34.0030 Remote control absorption module 1.1.05.11.0062 Secondary inverter arc plate 2.05.17.028 Tension disc 2.04.30.103 Cable holder 1.1.11.34.0046 Power line 2.07.80.987 Switch 2.07.54.115 Aerial socket 1.1.01.03.1740 Back panel 2.02.02.034 Connecting screw rod 2.06.14.813 Copper nut...
  • Page 25 1.1.10.34.0029 1.1.05.01.0547 Switching power supply board 1.1.05.10.0038 Pulse run-on plate 2.07.37.553 Single phase rectifier bridge 1.1.05.11.0064 Rectifier inverter board 2.07.33.996 Single tube (IGBT) 2.05.05.173 Radiator support 2.07.43.962 Rectifier heat sink 1.1.01.04.1411 Bottom panel 2.05.05.999 Feet 1.1.01.05.3106 Mounting plate 2.07.25.107 Output reactor 1.1.04.05.0049 Coupling transformer 2.07.55.203...
  • Page 26 Spare Parts List for Foot Control Code number Description 2.05.10.405 Top Plate 1.1.01.01.0210 Enclosure 2.07.80.584 Micro Switch 2.05.14.001 Gear 1 2.06.29.003 Torsional Spring 2.06.29.033 Spring 2 2.05.14.003 Gear Support 1.1.01.04.0240 Bottom Enclosure 1.1.03.02.0053 Spindle 1.1.03.02.0054 Piovt pin 1.1.02.02.0518 Axle Sleeve 2.06.29.032 Spring 1 2.06.25.004...
  • Page 27     Reference part Description Qty. 10N47 Nozzle 10N32 Tungsten Electrode Holder，2.4MM 10N25 Tungsten Electrode Holder，2.4MM 2.4MMC Tungsten Electrode，2.4MM PRO26FX Torch head 57Y02 Tungsten Electrode PRO1MS-10 10K Potentiometer Switch PROSWL5 5 Switch Wiring PROH200 Handle PROSP Screw PROKJ200 Diversion Connector PROLC200-08 TORCH COVER PROCO200-40 Cable...
  • Page 28 Main circuit principle diagram...
