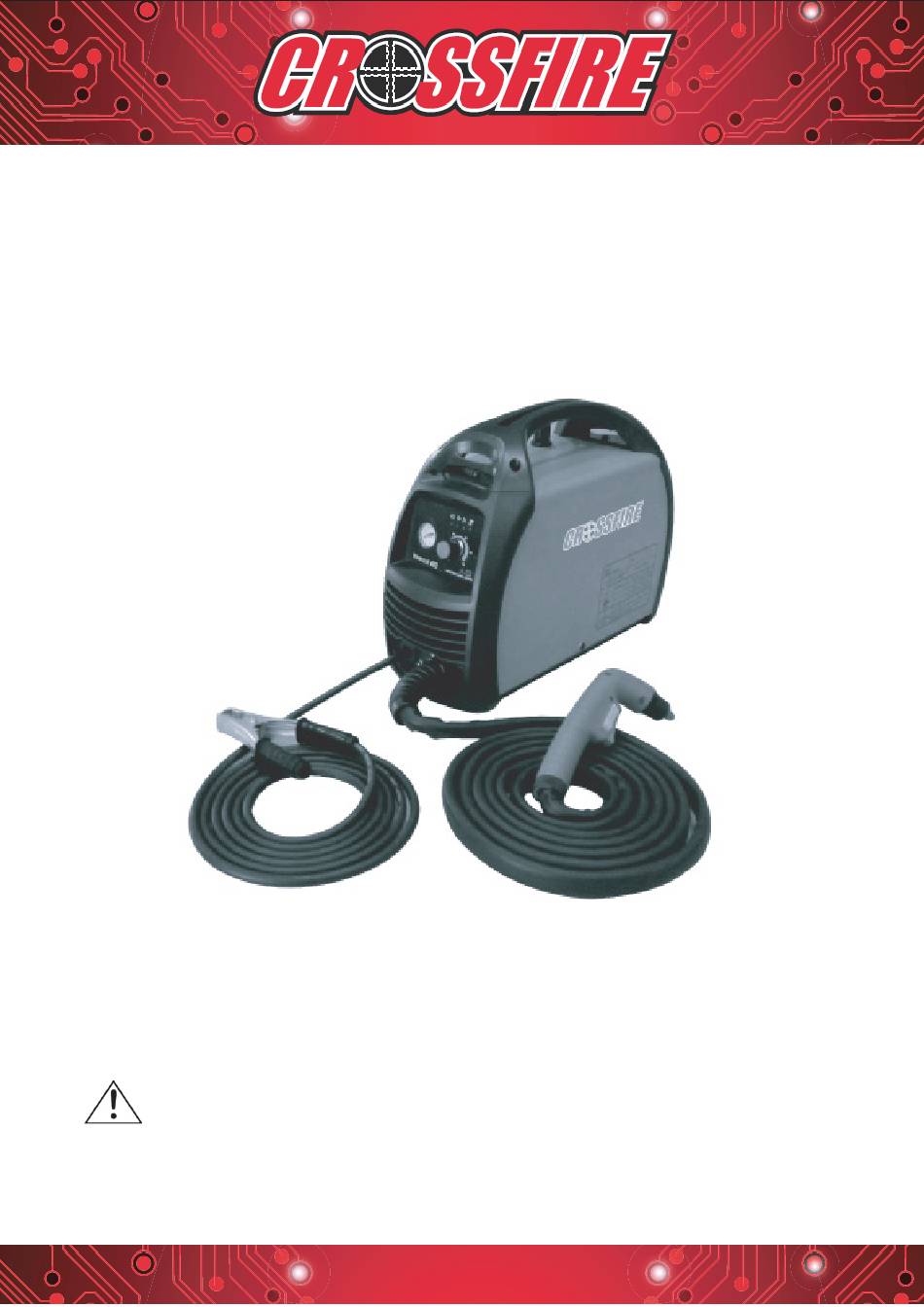

- Page 1 Invercut 40D OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-
Page 2: General Safety Instruction
Operating Instructions and Parts Manual Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. - Page 3 GENERAL SAFETY INSTRUCTION -Wear proper gloves and protective clothing to prevent your skin from being exposed to hot metals, UV and IR rays. -Do not overuse or overheat your welder. Allow proper cooling time between duty cycles. -Keep hands and fingers away from moving parts and stay away from the drive rolls.
- Page 4 GENERAL SAFETY INSTRUCTION UV and IR Arc Rays The welding arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to your eyes and skin. Do not look at the welding arc without proper eye protection. -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear.
- Page 5 GENERAL SAFETY INSTRUCTION Sparks/Flying Debris Welding creates hot sparks that can cause injury. Chipping slag off welds creates flying debris. -Wear protective apparel at all times: ANSI-approved safety glasses or shield, welder’s hat and ear plugs to keep sparks out of ears and hair. Electromagnetic Field -Electromagnetic fields can interfere with various electrical and electronic devices such as pacemakers.
-
Page 6: Specification

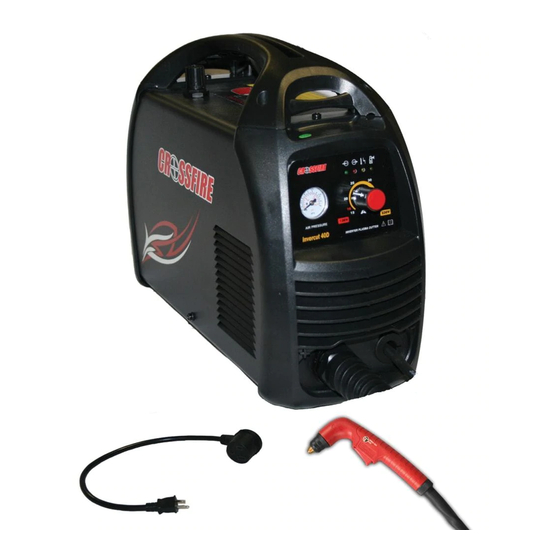

Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Description The Invercut 40D is an IGBT inverter plasma cutter with thermal overload protection, a Trafimet torch and a built-in gas regulator. This easy to use plasma cutter has the power to cut up to 6mm. - Page 7 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Gas Pressure Power Switch Adjustor Power Cord Gas Pressure Display Indicator Lights Current Adjustmen Grounding Cable with Clamp Cutting Torch Nozzle Electrode Gas Pressure Display The built-in gas display is used for reading the output gas pressure when cutting.
- Page 8 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Cutting Torch Connection The Cutting Torch Connect the negative(-) on the front of the plasma cutter. Power switch It is the on/off switch. After the machine is connected to the input power supply, turn on this switch.
- Page 9 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D a qualified electrician and your local electrical codes for your specific area. Do not use an extension cord over 25 ft. in length. 3. INSTALLATION OF THE CUTTING TORCH CONSUMABLES 3.1 Your torch should be fully assembled and ready to operate.
-
Page 10: Cutting Operation
Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D OPERATION High voltage danger from power source! Consult a qualified electrician for proper installation of receptacle at the power source. This cutter must be grounded while in use to protect the operator from electrical shock. If you are not sure if your outlet is properly grounded, have it checked by a qualified electrician. - Page 11 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D 2.2. Metal Mesh Cutting -Fix the work piece and connect the earth cable with the work piece. -Put the cutting nozzle onto the work piece, lift torch up slightly from the work piece and turn on the switch to cut.
- Page 12 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D 4. Safety Requirements - Never allow the torch to be aimed at any part of a body. - Make sure to wear protective glasses and gloves while operating. - Work only in well-ventilated areas. If necessary, use exhaust/ventilation fans to keep fumes or emissions away from the breathing zone.
- Page 13 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Trouble shooting Chart Symptom (s) Possible Causes(s) Corrective Action(s) Power Indicator 1.The light is broken. 1.Replace. Light is off after 2.Fuse is blown. 2.Replace. turning on the 3.Not 120V or 230V Input 3.Connect the 120V or...
- Page 14 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D turning on power wrong. 2.Replace. supply. 2.Power supply switch is 3.Replace. broken. 4.Replace. 3.Fuse is damaged. 5.Examine and repair or 4.Transformer is broken. replace. 5.Main controlling board is ruined.
- Page 15 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D...
- Page 16 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Main Circuit chart 0.15/0.33 2 FAN 2 FAN RLY1 RLY2 SGND VIOUT VIOUT...
- Page 17 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Spare Part List...
- Page 18 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D Repair Parts List CODE DESCRIPTION 20030320097 Power Cabel 20070800288 Rocker Switch 11010031710 Back plastic panel 11020020090 US gas connector 11020013628 Fan fixing plate 11120150015 Fan Wiring Harness 11020020091 Gas joint fixing plate...
- Page 19 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D...
- Page 20 Plasma Cutter Plasma Cutter Operating Instructions and Parts Manual Invercut 40D...
- Page 21 14 2018 CROSSFIRE CROSSFIRE WELDERS CROSSFIRE WELDERS. 2 1 e - ee 1-800- 5 -4445...
